铝 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCK0J821MCO1GSCAP ALUM POLY 820UF 20% 6.3V SMD Nichicon |
1,046 |
|
数据手册 |
PCK | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1C101MCL1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
832 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 36mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1J220MCL1GSCAP ALUM POLY 22UF 20% 63V SMD Nichicon |
8,170 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 48mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR1E101MCL1GSCAP ALUM POLY 100UF 20% 25V SMD Nichicon |
6,644 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 41mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1H220MCL2GSCAP ALUM POLY 22UF 20% 50V SMD Nichicon |
1,481 |
|
数据手册 |
PCV | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1V271MCL1GSCAP ALUM POLY 270UF 20% 35V SMD Nichicon |
8,232 |
|
数据手册 |
PCR | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCG1A102MCL1GSCAP ALUM POLY 1000UF 20% 10V SMD Nichicon |
2,062 |
|
数据手册 |
PCG | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 10 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

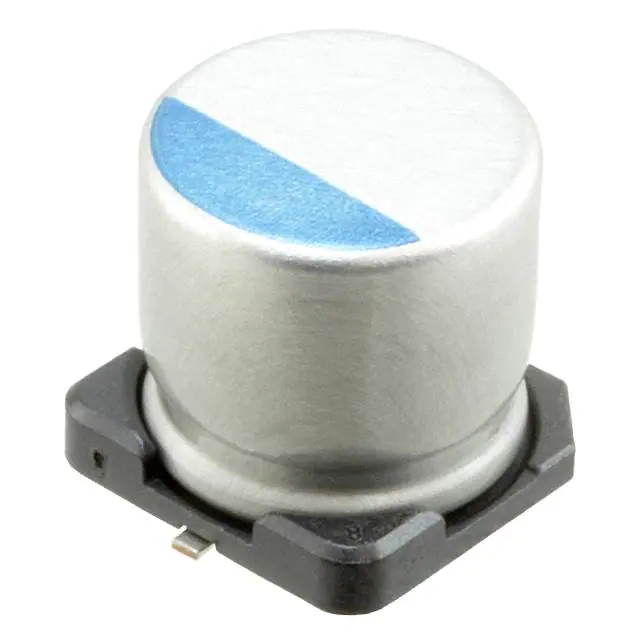

PCK0J152MCO1GSCAP ALUM POLY 1500UF 20% 6.3V Nichicon |
1,912 |
|
数据手册 |
PCK | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNL1E102MDSBSQCAP ALUM POLY 1000UF 20% 25V TH Nichicon |
881 |
|
数据手册 |
FPCAP, RNL | Bulk | Active | Polymer | 1000 µF | ±20% | 25 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 580 mA @ 120 Hz | 5.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
|
RNU1H680MDN1PHCAP ALUM POLY 68UF 20% 50V TH Nichicon |
2,060 |
|
数据手册 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 50 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
