交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI24-15-UD-P5AC/DC DESKTOP ADAPTER 15V 24W |
227 |
|
数据手册 |
SDI24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
6A-061WP12-002AC/DC DSKTP/WALL MT ADAPT 12V 6W |
217 |
|
数据手册 |
6A-061WP12 (6W) | Box | Active | International | Desktop, Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | - | Multi-Blade (Included) | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB, CCC, CE, PSE, TUV, UL | |
|
SWI24-24-N-P11AC/DC WALL MOUNT ADAPTER 24V 24W |
3,790 |
|
数据手册 |
SWI24-N (24W) | Tray | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.72" H (72.0mm x 34.0mm x 69.0mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL | |
|

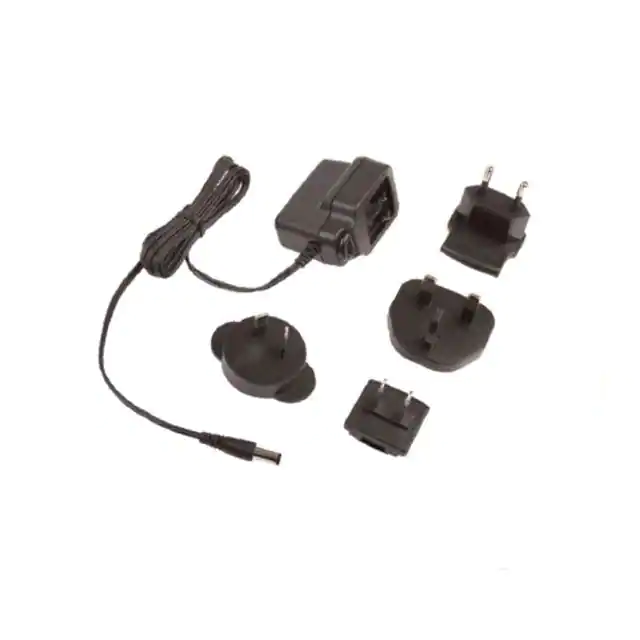

VER18US150-JAAC/DC WALL MOUNT ADAPTER 15V 19W |
557 |
|
数据手册 |
VER18 (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 1.25A | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 3.54" L x 1.69" W x 1.68" H (90.0mm x 43.0mm x 42.7mm) | CB | |
|

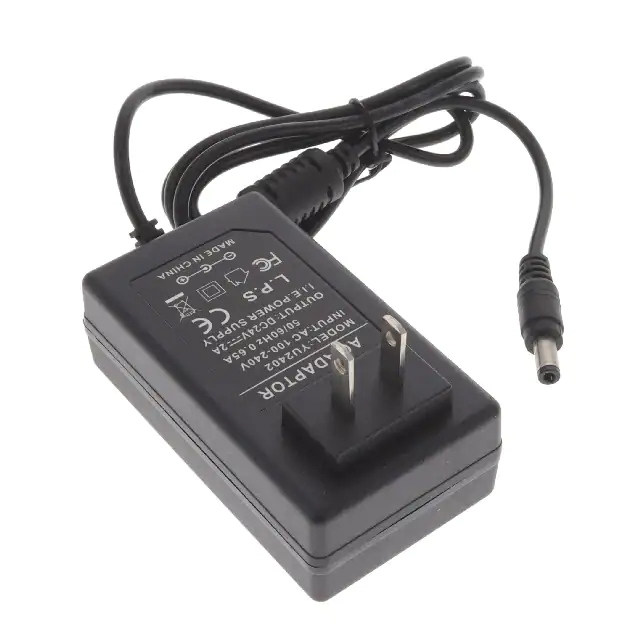

YU2402AC/DC DESKTOP ADAPTER 24V |
102 |
|
数据手册 |
- | Case | Active | - | Desktop | - | 110 ~ 240 VAC | 24V | 2A | - | - | - | - | - | - | - | 47.2" (1.20m) | - | - | - | - | |
|
SGA12U12-P1JAC/DC WALL MOUNT ADAPTER 12V 12W |
2,318 |
|
数据手册 |
SGA12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | CB, cURus | |
|
SGA12E12-P1JAC/DC WALL MOUNT ADAPTER 12V 12W |
1,620 |
|
数据手册 |
SGA12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CB, CE, GS | |
|
BEWCA20WWAC/DC WALL MT ADPT 5V/9V/12V 18W |
3,309 |
|
数据手册 |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 110 ~ 240 VAC | 5V, 9V, 12V | 3A, 2A, 1.5A | 18 W | - | - | ITE (Commercial) | - | - | USB A Receptacle, USB C Power Delivery (PD) | - | NEMA 1-15P | - | - | - | |
|
BEWCA20WBBAC/DC WALL MT ADPT 5V/9V/12V 18W |
1,198 |
|
数据手册 |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 110 ~ 240 VAC | 5V, 9V, 12V | 3A, 2A, 1.5A | 18 W | - | - | ITE (Commercial) | - | - | USB A Receptacle, USB C Power Delivery (PD) | - | NEMA 1-15P | - | - | - | |
|
CENB1010A2403B01AC/DC WALL MOUNT ADAPTER 24V 12W |
3,903 |
|
数据手册 |
CENB1010 (10W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 24V | 500mA | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27" L x 1.85" W x 1.50" H (83.0mm x 47.0mm x 38.0mm) | CE, cULus | |
|
SDI12-12-UD-P6AC/DC DESKTOP ADAPTER 12V 12W |
2,664 |
|
数据手册 |
SDI12-UD (12W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | |
|
6A-061WP05-167AC/DC WALL MOUNT ADAPTER 5V |
101 |
|
数据手册 |
6A-061WP05 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.44" L x 1.59" W x 1.22" H (62.0mm x 40.5mm x 31.0mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL | |
|
SMI18-9-K-P6AC/DC WALL MOUNT ADAPTER 9V 20W |
197 |
|
数据手册 |
SMI18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 2.2A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
L6R36D-240-C8AC/DC DESKTOP ADAPTER 24V 36W |
218 |
|
数据手册 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | cUL, FCC, UL | |
|
TE20A0703B01AC/DC WALL MNT ADAPTER 7.5V 15W |
3,146 |
|
数据手册 |
TE20 (20W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Single Blade Included) | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE | |
|
SWI12-24-N-SCAC/DC WALL MOUNT ADAPTER 24V 12W |
3,022 |
|
数据手册 |
SWI12-SC (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Screw Terminal | - | NEMA 1-15P | - | 3.86" L x 1.93" W x 1.28" H (98.0mm x 49.0mm x 32.5mm) | CB Scheme, CSA, IEC, UL | |
|
|
SWI12-15-N-SCAC/DC WALL MOUNT ADAPTER 15V 12W |
4,674 |
|
数据手册 |
SWI12-SC (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 800mA | 12 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Screw Terminal | - | NEMA 1-15P | - | 3.86" L x 1.93" W x 1.28" H (98.0mm x 49.0mm x 32.5mm) | CB Scheme, CSA, IEC, UL | |
|
PW172KB0903B01AC/DC WALL MOUNT ADAPTER 9V 18W |
1,301 |
|
数据手册 |
PW172KB (15-19W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 9V | 2A | 18 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.27" L x 1.85" W x 1.50" H (83.0mm x 47.0mm x 38.0mm) | CE, cULus | |
|
ME20A0503N01AC/DC DESKTOP ADAPTER 5V 15W |
3,486 |
|
数据手册 |
ME20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE | |
|
|
ME20A4803N01AC/DC DESKTOP ADAPTER 48V 20W |
4,526 |
|
数据手册 |
ME20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 420mA | 20 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE |
