交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWI24-24-N-N5AC/DC WALL MOUNT ADAPTER 24V 24W |
3,846 |
|
数据手册 |
SWI24-N (24W) | Tray | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Negative Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL | |
|
AMA24UR4-050300YAC/DC WALL MOUNT ADAPTER 5V 15W |
119 |
|
数据手册 |
AMA24-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.87" H (72.0mm x 34.0mm x 73.0mm) | CE, UL | |
|
SWI18-5-E-P6AC/DC WALL MOUNT ADAPTER 5V 15W |
3,940 |
|
数据手册 |
SWI18-E (18W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 2.76" H (72.0mm x 34.0mm x 70.0mm) | CB Scheme, EN, IEC | |
|
SWI12-12-E-P5RAC/DC WALL MOUNT ADAPTER 12V 12W |
4,528 |
|
数据手册 |
SWI12-E (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 2.38" H (72.0mm x 34.0mm x 60.5mm) | CB Scheme, EN, IEC | |
|
SLE36S2403B01AC/DC WALL MOUNT ADAPTER 24V 36W |
3,163 |
|
数据手册 |
SLE36 (36W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | Multi-Blade (Sold Separately) | - | 3.81" L x 1.30" W x 1.99" H (96.7mm x 33.0mm x 50.5mm) | CB, CCC, CE, cULus, cURus, GS, KC, PSE, RCM, TUV | |
|
TE20A0903N01AC/DC DESKTOP ADAPTER 9V 18W |
2,993 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
|
TE20A2403N01AC/DC DESKTOP ADAPTER 24V 20W |
4,477 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 830mA | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
|
TE20A4803N01AC/DC DESKTOP ADAPTER 48V 20W |
4,405 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 420mA | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
|
TE20A1203N01AC/DC DESKTOP ADAPTER 12V 18W |
3,595 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
|
TE20A0503N01AC/DC DESKTOP ADAPTER 5V 15W |
3,762 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, CSA, UL | |
|
ME10A2403N01AC/DC DESKTOP ADAPTER 24V 12W |
3,025 |
|
数据手册 |
ME10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO | |
|
|
ME10A1203N01AC/DC DESKTOP ADAPTER 12V 12W |
2,841 |
|
数据手册 |
ME10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO | |
|
TE20A0703F01AC/DC DESKTOP ADAPTER 7.5V 15W |
4,128 |
|
数据手册 |
TE20 (20W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE | |
|

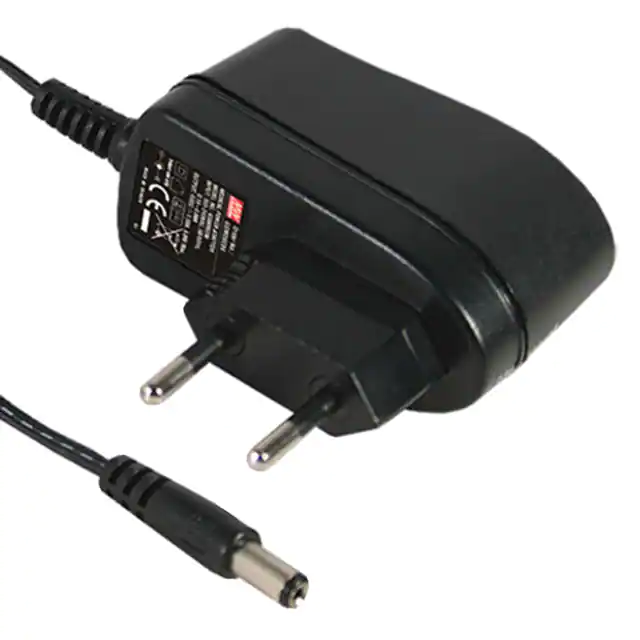

GSM06E05-P1JAC/DC WALL MOUNT ADAPTER 5V 6W |
1,013 |
|
数据手册 |
GSM06E (6W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 5V | 1.2A | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | CEE 7/16 | - | 2.60" L x 1.26" W x 1.67" H (66.0mm x 32.0mm x 42.5mm) | CE, TUV | |
|
SMI18-5.9-K-P5AC/DC WALL MNT ADAPTER 5.9V 18W |
3,118 |
|
数据手册 |
SMI18 (18W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5.9V | 3A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL | |
|
|
DDU120100H4480TRANS,WALL,REG,LIN,12VDC/1A,2.1 |
205 |
|
数据手册 |
ReliaPro | Retail Package | Active | - | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 1A | 12 W | - | Positive Center | Household Appliances, ITE (Commercial) | - | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.35" L x 2.19" W x 1.77" H (85.0mm x 55.6mm x 45.0mm) | cUL, UL | |
|
SDI18-5-U-P6RAC/DC DESKTOP ADAPTER 5V 15W |
2,207 |
|
数据手册 |
SDI18-U (18W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
1774WALL ADAPTER 12VDC 3A, 5.5X2.1MM |
1,124 |
|
数据手册 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 3A | 36 W | - | Positive Center | - | - | - | Barrel Jack, 2.1mm I.D. x 5.5mm O.D. | 60.2" (1.50m) | NEMA 1-15P | - | - | UL | |
|
SDI24-9-UD-P5AC/DC DESKTOP ADAPTER 9V 23W |
4,682 |
|
数据手册 |
SDI24-UD (24W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | |
|
VEL24US240-US-JAAC/DC WALL MOUNT ADAPTER 24V 24W |
205 |
|
数据手册 |
VEL24 (24W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) | CB, TUV, UL |
