交流直流桌面、墙式电源适配器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWI12-12-E-P6AC/DC WALL MOUNT ADAPTER 12V 12W |
3,567 |
|
数据手册 |
SWI12-E (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 2.38" H (72.0mm x 34.0mm x 60.5mm) | CB Scheme, EN, IEC | |
.jpg)
|

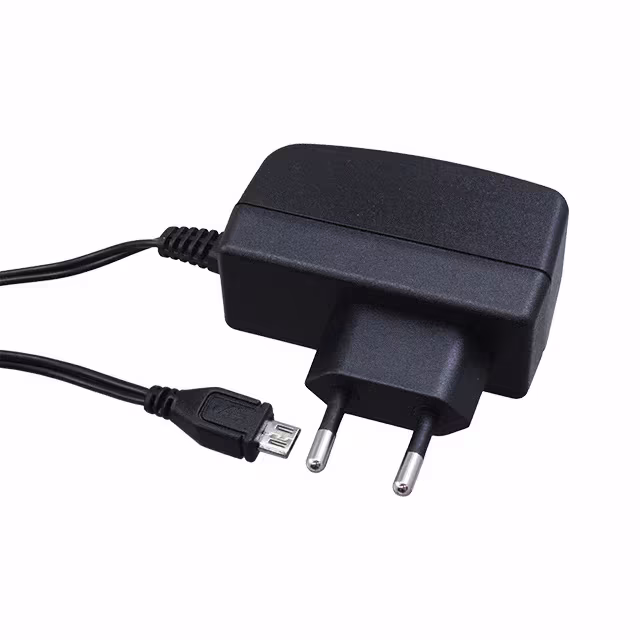

WR9MA1200MICB-F(R6B)AC/DC WALL MOUNT ADAPTER 5V 6W |
101 |
|
数据手册 |
GT-86060-06VV-X.X-W2E | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | CEE 7/16 | - | 2.80" L x 0.98" W x 2.60" H (71.2mm x 25.0mm x 66.0mm) | CB, CE, EAC, LPS, UKRSepro | ||
|
|
SWI12-24-E-P5AC/DC WALL MOUNT ADAPTER 24V 12W |
1,153 |
|
数据手册 |
SWI12-E (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 2.83" L x 1.34" W x 2.38" H (72.0mm x 34.0mm x 60.5mm) | CB Scheme, EN, IEC | |
|
SWI6-15-N-P5RAC/DC WALL MNT ADAPTER 15V 7.5W |
4,566 |
|
数据手册 |
SWI6-N (6W) | Tray | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 500mA | 7.5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.20" L x 1.10" W x 1.65" H (56.0mm x 28.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL | |
|
TE10A0503N01AC/DC DESKTOP ADAPTER 5V 10W |
2,064 |
|
数据手册 |
TE10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | |
|
|
TE10A1203N01AC/DC DESKTOP ADAPTER 12V 12W |
1,863 |
|
数据手册 |
TE10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | |
|
|
TE10A2403N01AC/DC DESKTOP ADAPTER 24V 12W |
2,124 |
|
数据手册 |
TE10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | |
|
|
TE10A0703F01AC/DC DESKTOP ADAPTER 7.5V 9.8W |
4,029 |
|
数据手册 |
TE10 (10W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.3A | 9.8 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CB, CE, DEMKO, UL | |
|
|
TE10A0703N01AC/DC DESKTOP ADAPTER 7.5V 9.8W |
4,776 |
|
数据手册 |
TE10 (10W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 7.5V | 1.3A | 9.8 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CB, CE, DEMKO, UL | |
|
MENB1010A2403F01AC/DC DESKTOP ADAPTER 24V 12W |
2,793 |
|
数据手册 |
MENB1010 (10W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 500mA | 12 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.30" L x 1.85" W x 1.26" H (84.0mm x 47.0mm x 32.0mm) | CE, cURus | |
|
L6R30D-240-C8AC/DC DESKTOP ADAPTER 24V 30W |
348 |
|
数据手册 |
Tri-Mag®, L6R30D (30W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.62" L x 1.79" W x 1.08" H (91.9mm x 45.4mm x 27.5mm) | cUL, FCC, UL | |
|
SMI6-9-V-P7AC/DC WALL MOUNT ADAPTER 9V 6W |
2,637 |
|
数据手册 |
SMI6 (6W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 670mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.52" L x 1.59" W x 1.18" H (64.0mm x 40.5mm x 30.0mm) | CB Scheme, CCC, CSA, EAC, EN, FCC, IEC, KC, RCM, SIQ, TUV, UL | |
|
VEL12US120-US-JAAC/DC WALL MOUNT ADAPTER 12V 12W |
497 |
|
数据手册 |
VEL12 (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.99" L x 1.16" W x 1.73" H (76.0mm x 29.5mm x 43.9mm) | CB, TUV, UL | |
|

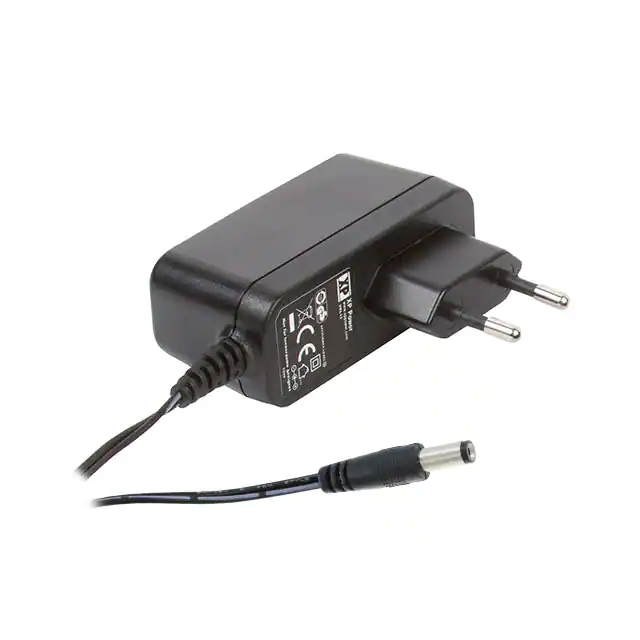

VEL12US050-EU-JAAC/DC WALL MOUNT ADAPTER 5V 11W |
219 |
|
数据手册 |
VEL12 (12W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.1A | 11 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | CEE 7/16 | - | 2.99" L x 1.16" W x 2.27" H (76.0mm x 29.5mm x 57.6mm) | CB | |
|
ED-PSU1202-EUAC/DC WALL MOUNT ADAPTER 12V 24W |
112 |
|
数据手册 |
ED-PSU1202 | Box | Active | Europe | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade | - | 2.03" L x 1.48" W x 0.96" H (51.5mm x 37.5mm x 24.3mm) | - | |
|
|
KTPS24-12020MP-VI-P1-NAAC/DC WALL MOUNT ADAPTER 12V 24W |
153 |
|
数据手册 |
KTPS24 (24W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 12V | 2A | 24 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | CB, CE, cUL, GS, PSE, RCM, UL | |
|
RAS-PWR13-PIAC/DC DSKTP/WALL MT ADAPTER 5V |
433 |
|
数据手册 |
- | Retail Package | Active | North America | Desktop, Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 3A | - | - | - | - | Level VI | - | USB C | 47.2" (1.20m) | NEMA 1-15P | - | 5.00" L x 2.50" W x 1.50" H (127.0mm x 63.5mm x 38.1mm) | FCC, UL | |
|
SDI18-24-U-P6AC/DC DESKTOP ADAPTER 24V 19W |
3,460 |
|
数据手册 |
SDI18-U (18W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | |
|
CENB1010A0903F01AC/DC DESKTOP ADAPTER 9V 10W |
3,809 |
|
数据手册 |
CENB1010 (10W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 9V | 1.1A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.27" H (84.0mm x 47.0mm x 32.3mm) | CE, cULus | |
|

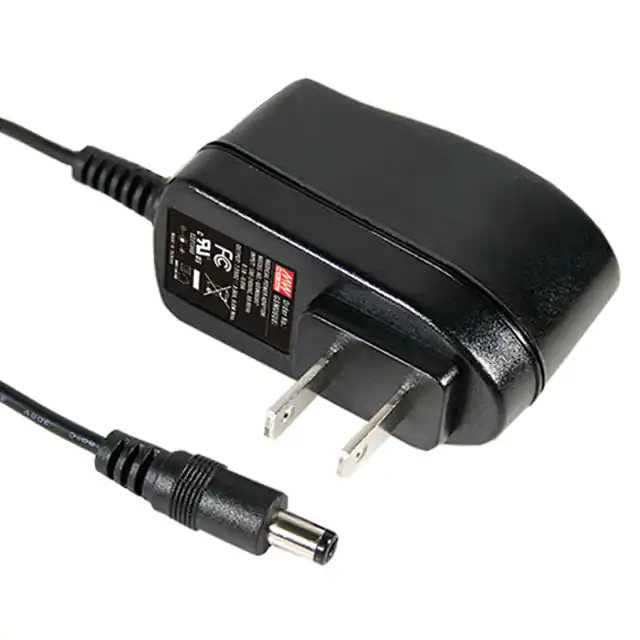

GSM06U05-P1JAC/DC WALL MOUNT ADAPTER 5V 6W |
1,229 |
|
数据手册 |
GSM06U (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 5V | 1.2A | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | NEMA 1-15P | - | 2.60" L x 1.26" W x 1.89" H (66.0mm x 32.0mm x 48.0mm) | cURus |
