交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSK-S5-12UA-TAC/DC CONVERTER 12V 5W |
4,487 |
|
数据手册 |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 420 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) | ||
|
RAC05-15DC/WAC/DC CONVERTER +/-15V 5W |
2,956 |
|
数据手册 |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 15V | -15V | - | - | - | - | 170 mA | 170 mA | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | ||
|

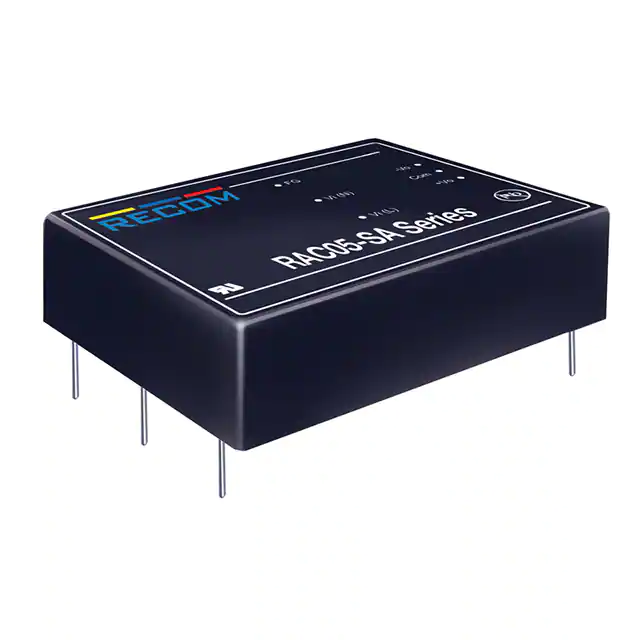

RAC05-3.3SC/WAC/DC CONVERTER 3.3V 5W |
4,317 |
|
数据手册 |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 3.3V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | ||
|
RAC05-05DC/WAC/DC CONVERTER +/-5V 5W |
3,721 |
|
数据手册 |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 5V | -5V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | ||
|
|
RAC05-05SC/WAC/DC CONVERTER 5V 5W |
4,652 |
|
数据手册 |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | ||
|
|
RAC05-12DC/WAC/DC CONVERTER +/-12V 5W |
3,099 |
|
数据手册 |
POWERLINE RAC05-C (5W) | Bulk | Obsolete | Enclosed | 2 | 90 ~ 264 VAC | 12V | -12V | - | - | - | - | 210 mA | 210 mA | - | - | - | - | 5W | ITE (Commercial) | 3 kV | -25°C ~ 75°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 2.00" L x 1.00" W x 0.62" H (50.8mm x 25.4mm x 15.7mm) | ||
|
AAD600S-7AC/DC CONVERTER 28V 600W |
4,538 |
|
数据手册 |
AAD600S (600W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 20 A | - | - | - | - | - | 600W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm) | ||
|
|
PAS150-5AC/DC CONVERTER 15V 80W |
4,395 |
|
数据手册 |
PAS150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 15V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 80W (150W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
AAD600S-8AC/DC CONVERTER 36V 600W |
3,363 |
|
数据手册 |
AAD600S (600W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16 A | - | - | - | - | - | 600W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm) | ||
|
|
PAM150-3AC/DC CONVERTER 5V 80W |
2,627 |
|
数据手册 |
PAM150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 80W (150W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
PAS250-5AC/DC CONVERTER 15V 130W |
2,050 |
|
数据手册 |
PAS250 (250W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 15V | - | - | - | - | - | 17 A | - | - | - | - | - | 130W (250W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
PAS250-7AC/DC CONVERTER 28V 130W |
1,367 |
|
数据手册 |
PAS250 (250W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 28V | - | - | - | - | - | 9 A | - | - | - | - | - | 130W (250W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
PAM150-8AC/DC CONVERTER 36V 80W |
3,688 |
|
数据手册 |
PAM150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 36V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 80W (150W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
PAS250-8AC/DC CONVERTER 36V 130W |
1,338 |
|
数据手册 |
PAS250 (250W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 36V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 130W (250W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
PAM250-7AC/DC CONVERTER 28V 130W |
2,627 |
|
数据手册 |
PAM250 (250W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 28V | - | - | - | - | - | 9 A | - | - | - | - | - | 130W (250W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
PAM250-8AC/DC CONVERTER 36V 130W |
4,120 |
|
数据手册 |
PAM250 (250W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 36V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 130W (250W Forced Air) | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.50" H (177.8mm x 100.0mm x 40.0mm) | ||
|
|
PAS150-2AC/DC CONVERTER 3.3V 80W |
3,722 |
|
数据手册 |
PAS150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 3.3V | - | - | - | - | - | 30 A | - | - | - | - | - | 80W (150W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
PAS150-3AC/DC CONVERTER 5V 80W |
1,247 |
|
数据手册 |
PAS150 (150W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 80W (150W Forced Air) | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | ||
|
|
AAD130-3464AC/DC CNVRTR 5V 12V 24V -12V 80W |
2,073 |
|
数据手册 |
AAD130 (130W) | Bulk | Obsolete | Open Frame | 4 | 90 ~ 264 VAC | 5V | 12V | 24V | -12V | - | - | 14 A | 5 A | 1.5 A | 1.5 A | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) | ||
|
|
AAD130SD-40AC/DC CONVERTER 12V 80W |
1,621 |
|
数据手册 |
AAD130SD (130W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12 A | - | - | - | - | - | 80W (130W Forced Air) | ITE (Commercial) | - | 0°C ~ 50°C | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm) |
