| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

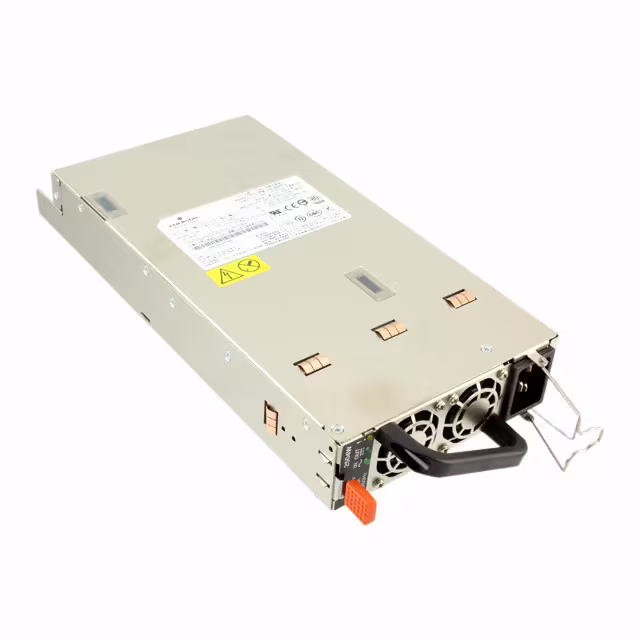

DS2500PE-3AC/DC CONVERTER 12V 2500W |
3,778 |
|
数据手册 |
DS2500PE (2500W) | Bulk | Obsolete | Front End | 1 | 180 ~ 264 VAC | 12V | - | - | - | - | - | 208.3 A | - | - | - | - | - | 2500W | ITE (Commercial) | - | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 10.63" L x 5.47" W x 1.69" H (270.0mm x 139.0mm x 42.9mm) | ||
|
|
LCM600Q-T-4AC/DC CONVERTER 24V 600W |
3,214 |
|
数据手册 |
LCM600 (600W) | Bulk | Obsolete | Front End | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|
|
MAP110-1024AC/DC CONVERTER 24V 90W |
3,737 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 90W (120W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | ||
|
CPA200-4530GAC/DC CNVRTR 5V 3.3V +/-12V 200W |
4,045 |
|
数据手册 |
Melcher CPA (200W) | Bulk | Active | Enclosed | 4 | 90 ~ 264 VAC | 5V | 3.3V | 12V | -12V | - | - | 20 A | 20 A | 2.5 A | 500 mA | - | - | 200W | ITE (Commercial) | 1.5 kV | -25°C ~ 50°C | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote Sense | Compact PCI® | 6.67" L x 1.60" W x 5.07" H (169.5mm x 40.6mm x 128.7mm) | ||
|
ZPSA20-12/PAC/DC CONVERTER 12V 20W |
4,015 |
|
数据手册 |
ZPSA20 (14-20W) | Bag | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 0°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm) | ||
|
H40475AC/DC CONVERTER 5V 2X15V 400W |
2,942 |
|
数据手册 |
CA400 | Bulk | Active | Enclosed | 3 | 90 ~ 264 VAC | 5V | 15V | 15V | - | - | - | 60 A | 5 A | 5 A | - | - | - | 400W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Load Sharing, Remote Sense, Universal Input | Rack Mount | 10.81" L x 4.98" W x 2.48" H (274.5mm x 126.5mm x 63.0mm) | ||
|
MVAC250-12FAC/DC CONVERTER 2X12V 170W |
1,662 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 12V | 12V | - | - | - | - | 20.8 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
MVAC250-24FAC/DC CONVERTER 24V 12V 170W |
2,487 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 24V | 12V | - | - | - | - | 10.4 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
MVAC250-48FAC/DC CONVERTER 50V 12V 170W |
2,450 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 50V | 12V | - | - | - | - | 5.2 A | 1 A | - | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
|
MVAC250-12AFDAC/DC CONVERTER 2X12V 5V 170W |
3,788 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 12V | 12V | 5V | - | - | - | 20.8 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
MVAC250-24AFDAC/DC CONVERTER 24V 12V 5V 170W |
2,589 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 24V | 12V | 5V | - | - | - | 10.4 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
MVAC250-48AFDAC/DC CONVERTER 50V 12V 5V 170W |
4,583 |
|
数据手册 |
MVAC250 (250W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 50V | 12V | 5V | - | - | - | 5.2 A | 1 A | 2 A | - | - | - | 170W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|

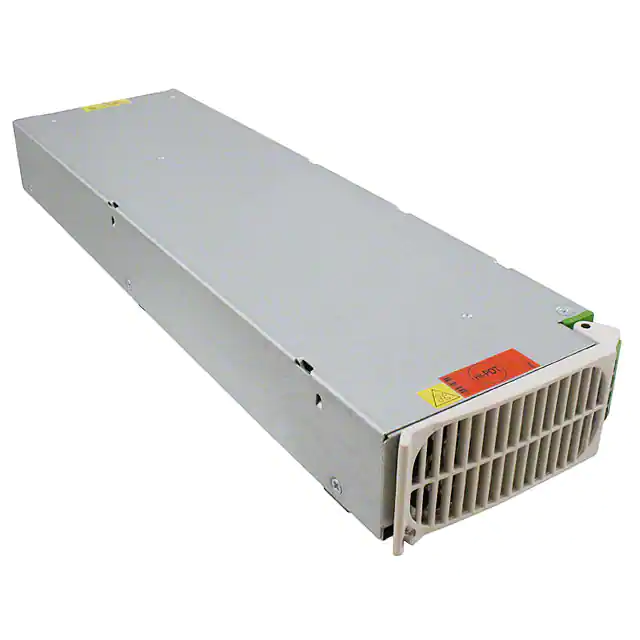

CP2500AC54TEZAC/DC CONVERTER 54V 2500W |
2,147 |
|
数据手册 |
Compact Power Line (2500W) | Box | Obsolete | Front End | 1 | 90 ~ 140 VAC, 185 ~ 300 VAC | 54V | - | - | - | - | - | 37 A | - | - | - | - | - | 2500W | ITE (Commercial) | 3 kV | -10°C ~ 75°C (With Derating) | 80 Plus® Platinum, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 13.85" L x 4.00" W x 1.63" H (351.2mm x 101.6mm x 41.4mm) | ||
|
QPDF-200-15AC/DC CONVERTER 15V 200W |
3,987 |
|
数据手册 |
QPDF-200 (200W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 13.4 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 60°C | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.64" L x 3.90" W x 1.97" H (194.0mm x 99.0mm x 50.0mm) | ||
|
QPDF-320-32AC/DC CONVERTER 32V 320W |
4,496 |
|
数据手册 |
QPDF-320 (320W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 32V | - | - | - | - | - | 10 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.92" L x 4.53" W x 1.97" H (226.5mm x 115.0mm x 50.0mm) | ||
|
QGPF-U500S24AC/DC CONVERTER 24V 500W |
1,519 |
|
数据手册 |
QGPF-U500S (500W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 20 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) | ||
|

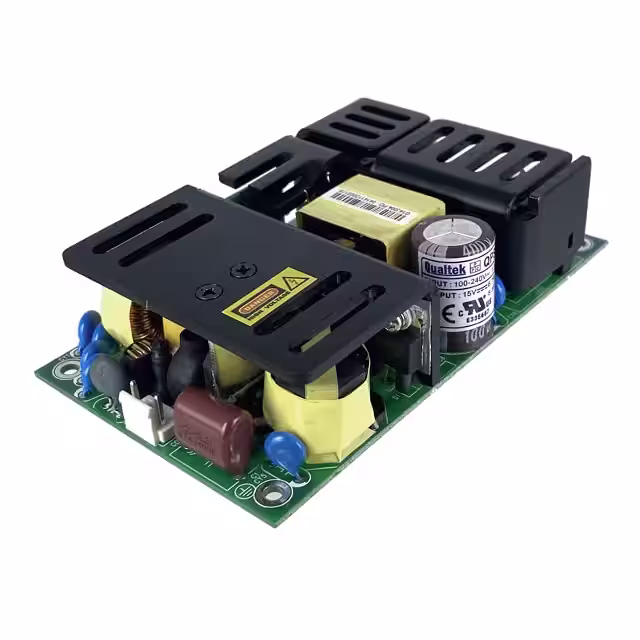

QPSF-125-28AC/DC CONVERTER 28V 125W |
1,106 |
|
数据手册 |
QPSF-125 (125W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 125W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.20" H (127.0mm x 76.0mm x 30.5mm) | ||
|
VI-NUY-CMAC/DC CONVERTER 3.3V 396W |
3,973 |
|
数据手册 |
FlatPAC™ | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 3.3V | - | - | - | - | - | 120 A | - | - | - | - | - | 396W | ITE (Commercial) | 4.242 kV | 0°C ~ 85°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 9.25" L x 7.30" W x 1.37" H (234.8mm x 185.4mm x 34.8mm) | ||
|

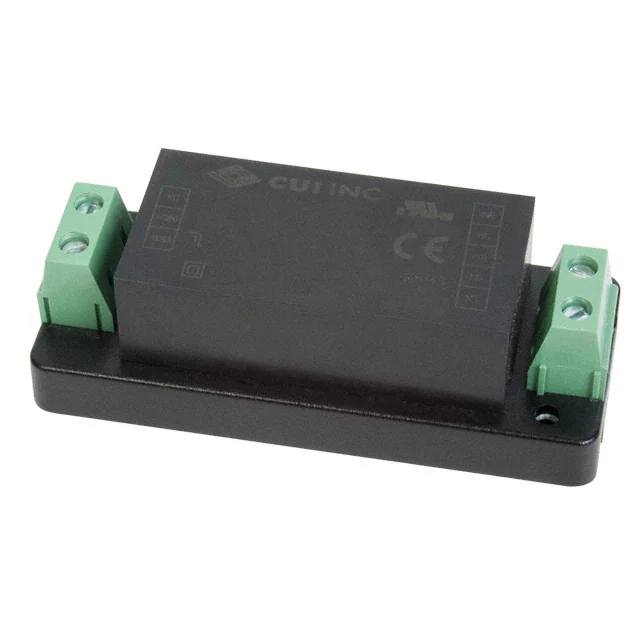

VSK-S5-5UA-TAC/DC CONVERTER 5V 5W |
3,549 |
|
数据手册 |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) | ||
|
VSK-S5-24UA-TAC/DC CONVERTER 24V 5W |
4,827 |
|
数据手册 |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 230 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) |
