交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAP110-4200AC/DC CNVRTR 12V 24V -12V 5V 80W |
2,435 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 12V | 24V | -12V | 5V | - | - | 5 A | 4 A | 1 A | 2 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | ||
|
MAP130-4003AC/DC CNVRT 5V 15V -5V -15V 130W |
4,524 |
|
数据手册 |
MAP130 (130W) | Bulk | Active | Open Frame | 4 | 90 ~ 132 VAC, 175 ~ 264 VAC | 5V | 15V | -5V | -15V | - | - | 20 A | 4 A | 1 A | 1 A | - | - | 130W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | ||
|
MAP110-4200CAC/DC CNVRTR 12V 24V -12V 5V 60W |
2,315 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 12V | 24V | -12V | 5V | - | - | 5 A | 4 A | 1 A | 2 A | - | - | 60W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.20" L x 4.50" W x 2.40" H (183.0mm x 115.0mm x 61.0mm) | ||
|
|
MAP110-4004AC/DC CNVRTR 5V 24V -15V 15V 80W |
1,003 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | -15V | 15V | - | - | 12 A | 3 A | 1 A | 1 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | ||
|
MAP110-4004CAC/DC CNVRTR 5V 24V +/-15V 60W |
1,070 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 24V | -15V | 15V | - | - | 12 A | 3 A | 1 A | 1 A | - | - | 60W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.20" L x 4.50" W x 2.40" H (183.0mm x 115.0mm x 61.0mm) | ||
|
|
MAP110-4002CTAC/DC CNVRTR 5V +/-12V 12V 60W |
1,341 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | -12V | 12V | - | - | 12 A | 5 A | 1 A | 1 A | - | - | 60W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.20" L x 4.50" W x 2.40" H (183.0mm x 115.0mm x 61.0mm) | ||
|
|
MAP110-4002AC/DC CNVRTR 5V +/-12V 12V 80W |
2,495 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 12V | -12V | 12V | - | - | 12 A | 5 A | 1 A | 1 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | ||
|
|
MAP110-4000AC/DC CNVRTR 5V +/-12V -5V 80W |
3,454 |
|
数据手册 |
MAP110 (110W) | Bulk | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 12V | -12V | -5V | - | - | 12 A | 5 A | 1 A | 1 A | - | - | 80W (110W Forced Air) | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.30" W x 1.97" H (177.8mm x 109.2mm x 50.0mm) | ||
|
PFC375-4000FAC/DC CONVERTER 5V 2X12V 5V 375W |
4,787 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 5V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
|
PFC250-4001AC/DC CONVERTER 5V 3X12V 250W |
4,572 |
|
数据手册 |
PFC250 (250W) | Box | Obsolete | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 12V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 250W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.75" W x 2.00" H (215.9mm x 120.7mm x 50.8mm) | ||
|
|
PFC250-4000FAC/DC CONVERTER 5V 2X12V 5V 250W |
3,500 |
|
数据手册 |
PFC250 (250W) | Bulk | Obsolete | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 5V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 250W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 4.75" W x 2.50" H (254.0mm x 120.7mm x 63.5mm) | ||
|
PFC375-4000AC/DC CONVERTER 5V 2X12V 5V 375W |
2,782 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 5V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
|
PFC375-4001FAC/DC CONVERTER 5V 3X12V 375W |
2,413 |
|
数据手册 |
PFC375 (375W) | Bulk | Obsolete | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 12V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
PFC375-4002AC/DC CNVRTR 5V 2X12V 24V 375W |
2,721 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 5V | 12V | 12V | 24V | - | - | 40 A | 10 A | 6 A | 3 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
|
PFC375-4200FAC/DC CNVRTR 24V 5V 2X12V 375W |
1,364 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 24V | 5V | 12V | 12V | - | - | 10 A | 10 A | 4 A | 4 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|

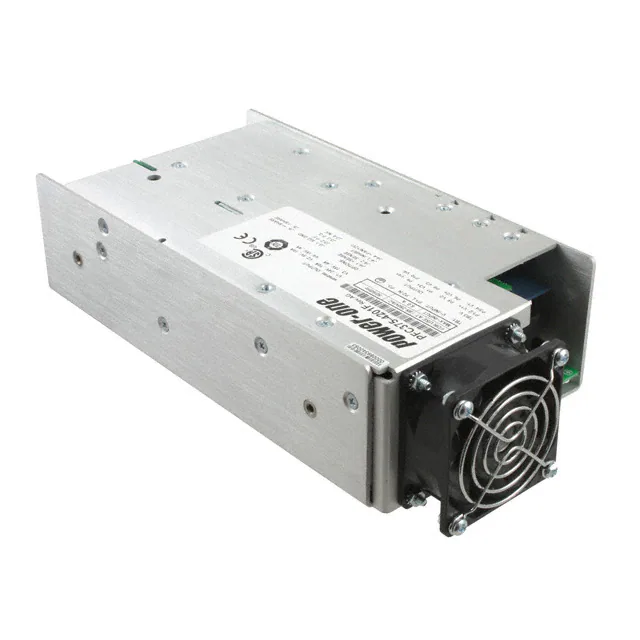

PFC375-4201FAC/DC CNVRTR 24V 5V 2X15V 375W |
1,657 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 24V | 5V | 15V | 15V | - | - | 10 A | 10 A | 4 A | 4 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|

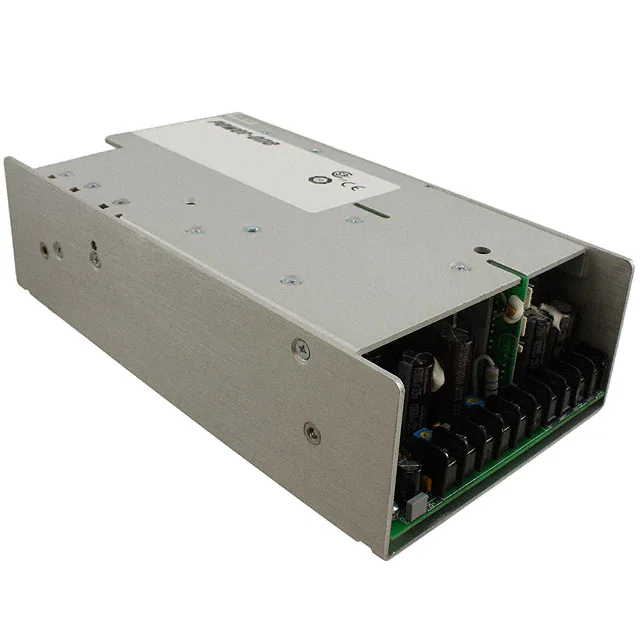

PFC375-4201AC/DC CNVRTR 24V 5V 2X15V 375W |
3,196 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 24V | 5V | 15V | 15V | - | - | 10 A | 10 A | 4 A | 4 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
PFC375-4200AC/DC CNVRTR 24V 5V 2X12V 375W |
2,007 |
|
数据手册 |
PFC375 (375W) | Bulk | Active | Enclosed | 4 | 85 ~ 264 VAC | 24V | 5V | 12V | 12V | - | - | 10 A | 10 A | 4 A | 4 A | - | - | 375W | ITE (Commercial) | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
LCM600U-TAC/DC CONVERTER 36V 600W |
3,449 |
|
数据手册 |
LCM600 (600W) | Bulk | Obsolete | Front End | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 600W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.50" L x 4.50" W x 2.40" H (190.5mm x 114.3mm x 61.0mm) | ||
|

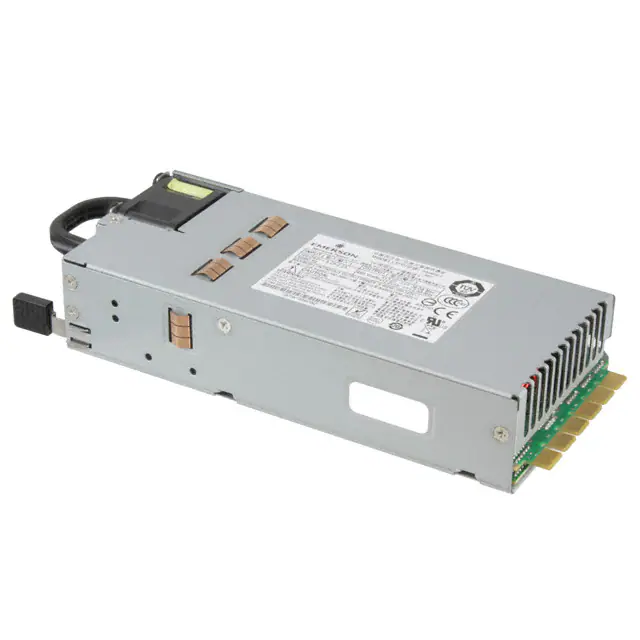

DS460S-3-002AC/DC CONVERTER 12V 460W |
2,225 |
|
数据手册 |
DS460S (460W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 36 A | - | - | - | - | - | 460W | ITE (Commercial) | - | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 9.57" L x 3.40" W x 1.57" H (243.2mm x 86.4mm x 39.9mm) |
