交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

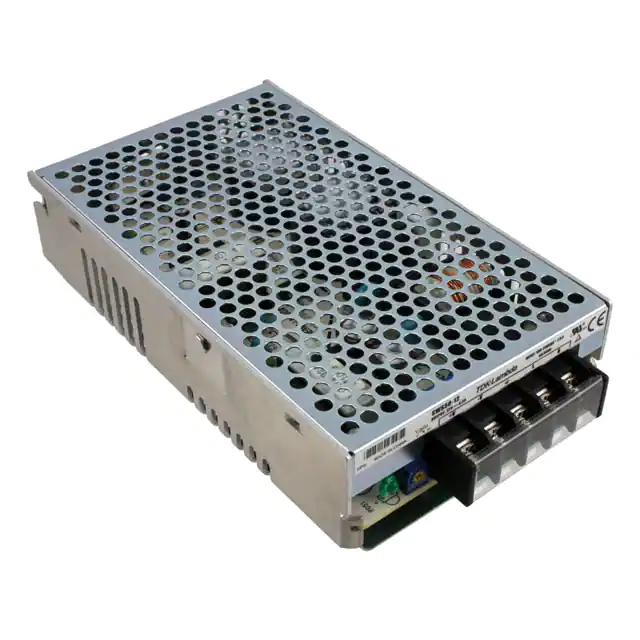

SWS50-12AC/DC CONVERTER 12V 50W |
2,512 |
|
数据手册 |
SWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.26" L x 3.62" W x 1.46" H (159.0mm x 91.9mm x 37.1mm) | ||
|
|
SWS50-15AC/DC CONVERTER 15V 50W |
2,980 |
|
数据手册 |
SWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.26" L x 3.62" W x 1.46" H (159.0mm x 91.9mm x 37.1mm) | ||
|
|
SWS50-24AC/DC CONVERTER 24V 50W |
2,366 |
|
数据手册 |
SWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.26" L x 3.62" W x 1.46" H (159.0mm x 91.9mm x 37.1mm) | ||
|
|
SWS50-5AC/DC CONVERTER 5V 50W |
1,888 |
|
数据手册 |
SWS (50W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.26" L x 3.62" W x 1.46" H (159.0mm x 91.9mm x 37.1mm) | ||
|
SWS600-12AC/DC CONVERTER 12V 600W |
1,344 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
|
SWS600-15AC/DC CONVERTER 15V 600W |
4,056 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
|
SWS600-24AC/DC CONVERTER 24V 600W |
3,247 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
|
SWS600-36AC/DC CONVERTER 36V 600W |
3,070 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 17 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
|
SWS600-48AC/DC CONVERTER 48V 600W |
4,606 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|
|
SWS600-5AC/DC CONVERTER 5V 600W |
4,824 |
|
数据手册 |
SWS600 (600W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 100 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 3.62" W x 4.72" H (190.0mm x 91.9mm x 119.9mm) | ||
|

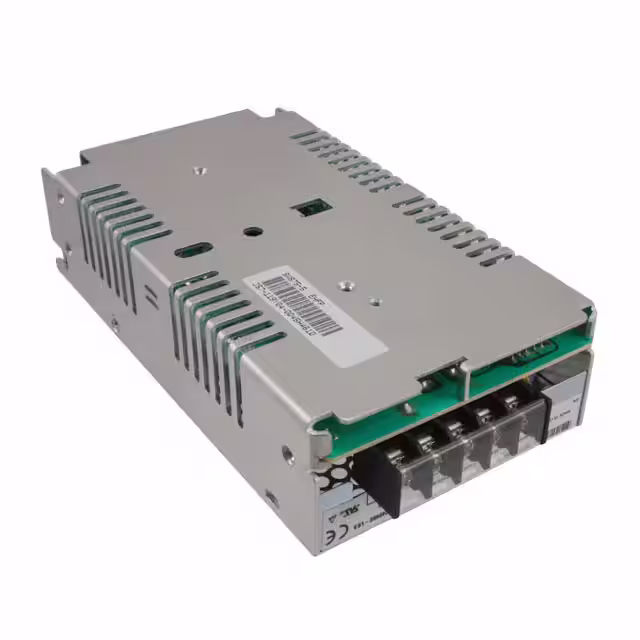

SWS75-12AC/DC CONVERTER 12V 75W |
1,302 |
|
数据手册 |
SWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.69" L x 3.70" W x 1.69" H (169.9mm x 94.0mm x 42.9mm) | ||
|
|
SWS75-15AC/DC CONVERTER 15V 75W |
3,037 |
|
数据手册 |
SWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.69" L x 3.70" W x 1.69" H (169.9mm x 94.0mm x 42.9mm) | ||
|
|
SWS75-24AC/DC CONVERTER 24V 75W |
2,282 |
|
数据手册 |
SWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.69" L x 3.70" W x 1.69" H (169.9mm x 94.0mm x 42.9mm) | ||
|
|
SWS75-5AC/DC CONVERTER 5V 75W |
1,299 |
|
数据手册 |
SWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.69" L x 3.70" W x 1.69" H (169.9mm x 94.0mm x 42.9mm) | ||
|
TH120012AC/DC CONVERTER 12V 1200W |
2,648 |
|
数据手册 |
TH (1200W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 100 A | - | - | - | - | - | 1200W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output | Rack Mount | 14.25" L x 4.00" W x 1.69" H (362.0mm x 101.6mm x 42.9mm) | ||
|
|
TH120024AC/DC CONVERTER 24V 1200W |
4,343 |
|
数据手册 |
TH (1200W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 50 A | - | - | - | - | - | 1200W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output | Rack Mount | 14.25" L x 4.00" W x 1.69" H (362.0mm x 101.6mm x 42.9mm) | ||
|
|
TH120048AC/DC CONVERTER 48V 1200W |
4,772 |
|
数据手册 |
TH (1200W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output | Rack Mount | 14.25" L x 4.00" W x 1.69" H (362.0mm x 101.6mm x 42.9mm) | ||
|
TL100024AC/DC CONVERTER 24V 1000W |
1,832 |
|
数据手册 |
TL (1000W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 40 A | - | - | - | - | - | 1000W | ITE (Commercial) | - | -40°C ~ 75°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Rack Mount | 11.12" L x 3.41" W x 3.45" H (282.4mm x 86.6mm x 87.6mm) | ||
|
ZPT40-51212NAC/DC CONVERTER 5V +/-12V 40W |
1,843 |
|
数据手册 |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 3.2 A | 2 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | ||
|
ZPT40-5125NAC/DC CONVERTER 5V 12V -5V 40W |
2,720 |
|
数据手册 |
ZP40 (40W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -5V | - | - | - | 3.2 A | 2 A | 300 mA | - | - | - | 40W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) |
