交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

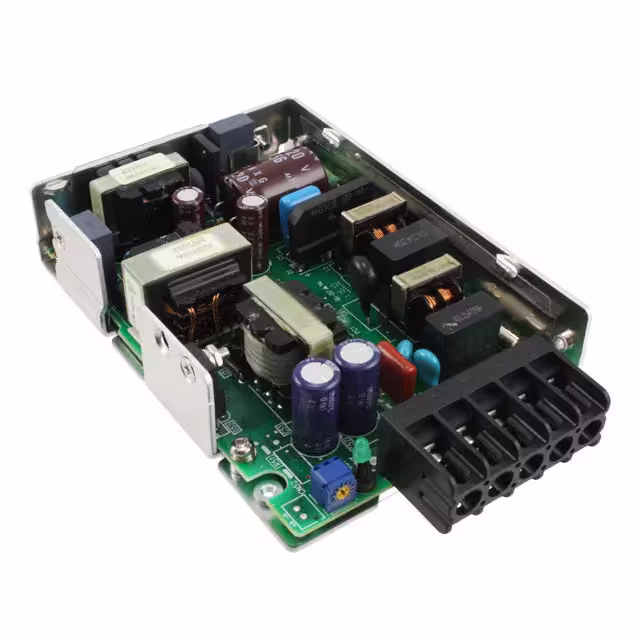

HWS50-5/HDAC/DC CONVERTER 5V 50W |
1,728 |
|
数据手册 |
HWS/HD (50W) | Bulk | Obsolete | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) | ||
|

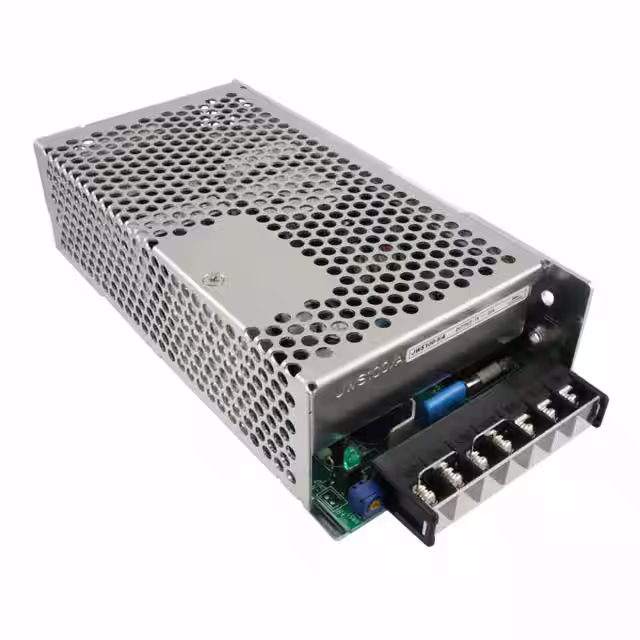

JWS100-28/AAC/DC CONVERTER 28V 100W |
2,884 |
|
数据手册 |
JWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.97" H (188.0mm x 91.9mm x 50.0mm) | ||
|
|
JWS100-3/AAC/DC CONVERTER 3.3V 100W |
4,236 |
|
数据手册 |
JWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.97" H (188.0mm x 91.9mm x 50.0mm) | ||
|

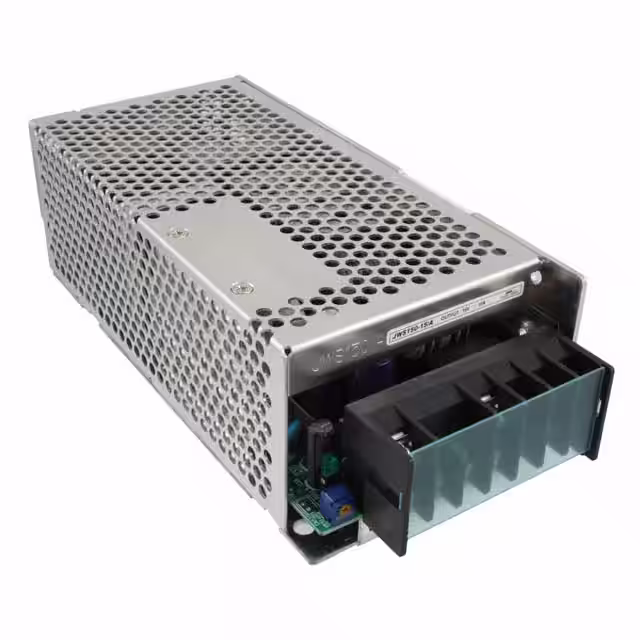

JWS150-15/AAC/DC CONVERTER 15V 150W |
3,528 |
|
数据手册 |
JWS (150W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 3.62" W x 2.56" H (198.1mm x 91.9mm x 65.0mm) | ||
|
JWS240P-24/508AC/DC CONVERTER 24V 240W |
3,934 |
|
数据手册 |
JWS-P (240W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | 240W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 3.62" H (190.0mm x 120.0mm x 92.0mm) | ||
|
|
JWS300-24/508AC/DC CONVERTER 24V 300W |
4,084 |
|
数据手册 |
JWS (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 3.62" H (190.0mm x 120.0mm x 92.0mm) | ||
|
|
JWS300-28AC/DC CONVERTER 28V 300W |
3,620 |
|
数据手册 |
JWS (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 28V | - | - | - | - | - | 12 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 3.62" H (190.0mm x 120.0mm x 92.0mm) | ||
|
|
JWS70P-24/508AC/DC CONVERTER 24V 70W |
4,850 |
|
数据手册 |
JWS (70W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 3 A | - | - | - | - | - | 70W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.97" H (188.0mm x 91.9mm x 50.0mm) | ||
|
JWS75-15/AAC/DC CONVERTER 15V 75W |
4,390 |
|
数据手册 |
JWS (75W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 6.88" L x 3.62" W x 1.65" H (174.8mm x 91.9mm x 41.9mm) | ||
|
SCD401515AC/DC CONVERTER +/-15V 40W |
2,402 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 2 | 85 ~ 265 VAC | 15V | -15V | - | - | - | - | 1.5 A | 1.2 A | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
SCD601212AC/DC CONVERTER +/-12V 60W |
1,838 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 2 | 85 ~ 265 VAC | 12V | -12V | - | - | - | - | 2.75 A | 2.2 A | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCD601515AC/DC CONVERTER +/-15V 60W |
4,984 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 2 | 85 ~ 265 VAC | 15V | -15V | - | - | - | - | 2.2 A | 1.8 A | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCS4012AC/DC CONVERTER 12V 40W |
2,406 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCS4024AC/DC CONVERTER 24V 40W |
4,080 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCS405AC/DC CONVERTER 5V 40W |
4,181 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCS6012AC/DC CONVERTER 12V 60W |
3,668 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCS6015AC/DC CONVERTER 15V 60W |
4,795 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCS6024AC/DC CONVERTER 24V 60W |
3,971 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCS605AC/DC CONVERTER 5V 60W |
4,470 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCT401AC/DC CONVERTER 3.3V 5V 12V 40W |
1,439 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 3.3V | 5V | 12V | - | - | - | 4 A | 2 A | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
