交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT42AC/DC CONVERTER 5V +/-12V 40W |
4,786 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 4 A | 2 A | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCT43AC/DC CONVERTER 5V +/-12V 40W |
2,614 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 5 A | 500 mA | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCT44AC/DC CONVERTER 5V 12V -5V 40W |
1,710 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -5V | - | - | - | 4 A | 2 A | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCT45AC/DC CONVERTER 5V +/-15V 40W |
3,709 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 4 A | 2 A | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
SCT47AC/DC CONVERTER 5V 24V 12V 40W |
4,417 |
|
数据手册 |
SC40 (40W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 24V | 12V | - | - | - | 4 A | 1 A | 500 mA | - | - | - | 40W (55W Forced Air) | ITE (Commercial) | 4.3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
SCT62AC/DC CONVERTER 5V +/-12V 60W |
1,958 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 7 A | 3 A | 700 mA | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
|
SCT65AC/DC CONVERTER 5V 24V 12V 60W |
3,539 |
|
数据手册 |
SC60 (60W) | Bulk | Obsolete | Open Frame | 3 | 85 ~ 265 VAC | 5V | 24V | 12V | - | - | - | 7 A | 1.5 A | 700 mA | - | - | - | 60W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.34" H (127.0mm x 76.2mm x 34.0mm) | ||
|
SWS100-12AC/DC CONVERTER 12V 100W |
2,822 |
|
数据手册 |
SWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.40" L x 3.78" W x 1.77" H (188.0mm x 96.0mm x 45.0mm) | ||
|
|
SWS100-15AC/DC CONVERTER 15V 100W |
2,492 |
|
数据手册 |
SWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.40" L x 3.78" W x 1.77" H (188.0mm x 96.0mm x 45.0mm) | ||
|
|
SWS100-24AC/DC CONVERTER 24V 100W |
2,994 |
|
数据手册 |
SWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.40" L x 3.78" W x 1.77" H (188.0mm x 96.0mm x 45.0mm) | ||
|
|
SWS100-5AC/DC CONVERTER 5V 100W |
2,495 |
|
数据手册 |
SWS (100W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.40" L x 3.78" W x 1.77" H (188.0mm x 96.0mm x 45.0mm) | ||
|

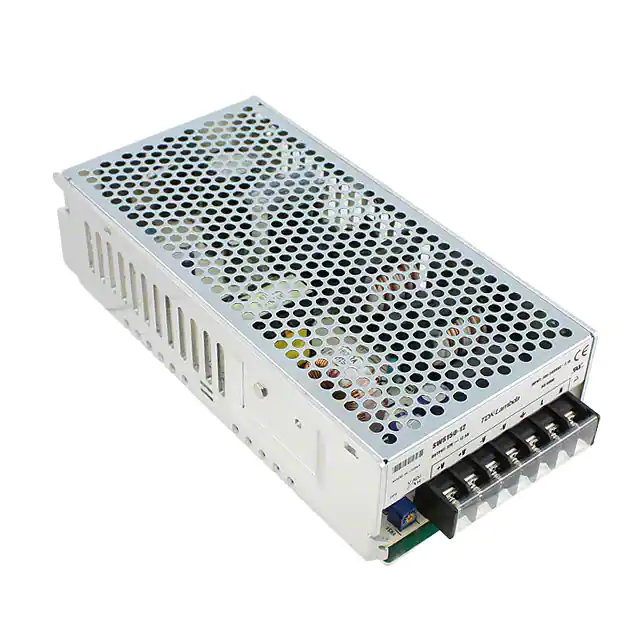

SWS150-12AC/DC CONVERTER 12V 150W |
2,494 |
|
数据手册 |
SWS (150W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm) | ||
|
|
SWS150-15AC/DC CONVERTER 15V 150W |
3,984 |
|
数据手册 |
SWS (150W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm) | ||
|
|
SWS150-5AC/DC CONVERTER 5V 150W |
3,439 |
|
数据手册 |
SWS (150W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm) | ||
|

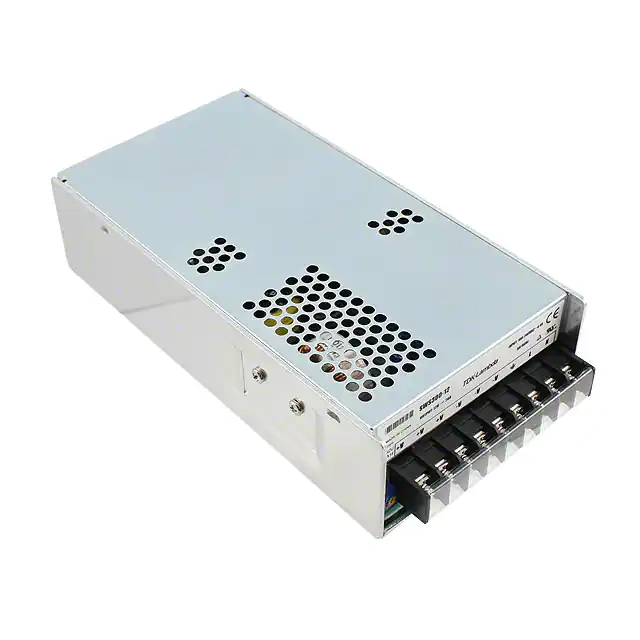

SWS300-12AC/DC CONVERTER 12V 300W |
4,245 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 26 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
|
SWS300-15AC/DC CONVERTER 15V 300W |
1,906 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 21 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
|
SWS300-24AC/DC CONVERTER 24V 300W |
3,796 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 13 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
|
SWS300-36AC/DC CONVERTER 36V 300W |
4,264 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 36V | - | - | - | - | - | 8.7 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
|
SWS300-48AC/DC CONVERTER 48V 300W |
4,930 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) | ||
|
|
SWS300-5AC/DC CONVERTER 5V 300W |
2,860 |
|
数据手册 |
SWS300 (300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 55 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -20°C ~ 74°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.80" L x 2.05" W x 4.01" H (198.1mm x 52.1mm x 101.9mm) |
