交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

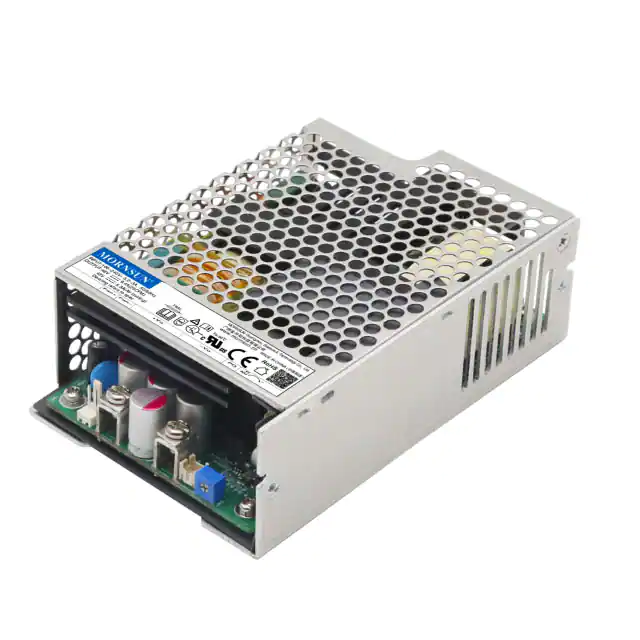

LOF550-20B48-CAC/DC CONVERTER 48V 312W |
2,542 |
|
数据手册 |
LOF550-20Bxx-C (450W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 11.46 A | - | - | - | - | - | 312W (550W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.11" L x 3.39" W x 1.69" H (129.8mm x 86.1mm x 42.9mm) | ||
|
PM301-12AAC/DC CONVERTER 12V 200W |
3,784 |
|
数据手册 |
PM301 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 200W (300W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.31" L x 6.82" W x 1.58" H (84.1mm x 173.2mm x 40.1mm) | ||
|
|
PM301-14AAC/DC CONVERTER 24V 200W |
1,206 |
|
数据手册 |
PM301 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 200W (300W Forced Air) | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.31" L x 6.82" W x 1.58" H (84.1mm x 173.2mm x 40.1mm) | ||
|
1011414GRN-110-1006 OVP |
3,182 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
|
1011413GRN-110-1005 OVP |
2,989 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
|
1011409GRN-110-1001 OVP |
4,399 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
1011345CHGRN-110-1002 CH |
4,028 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011350CHGRN-110-1007 CH |
1,943 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011348CHGRN-110-1005 CH |
4,631 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011344CHGRN-110-1001 CH |
4,329 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 22 A | - | - | - | - | - | 73W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011346CHGRN-110-1003 CH |
2,750 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 9.2 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011349CHGRN-110-1006 CH |
3,763 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
|
1011347CHGRN-110-1004 CH |
1,567 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | ||
|
PMMK130S-36UAC/DC CONVERTER 36V 130W |
282 |
|
数据手册 |
PMMK130 (130W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 130W | Medical | 5.656 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
|
|
VGS-350D-5AC-DC, 350 W, 5 VDC, SINGLE OUTP |
1,271 |
|
数据手册 |
VGS-350D (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.08" H (220.0mm x 62.0mm x 27.5mm) | ||
|
1011255GRN-80-3001 |
3,547 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 8 A | 2 A | 2 A | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
GSK360A24A24V Embedded AC/DC |
2,066 |
|
数据手册 |
GSK | Bulk | Active | Open Frame | 2 | 90 ~ 264 VAC | 24V | 12V | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.00" W x 1.37" H (140.0mm x 76.9mm x 34.8mm) | ||
|
|
GSK360A12A12V Embedded AC/DC |
1,537 |
|
数据手册 |
GSK | Bulk | Active | Open Frame | 2 | 90 ~ 264 VAC | 12V | 12V | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.00" W x 1.37" H (140.0mm x 76.9mm x 34.8mm) | ||
|
MBC225-1015LAC/DC CONVERTER 15V 113W |
2,331 |
|
数据手册 |
MBC225 (225W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 113W (225W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
MBC225-1T15LAC/DC CONVERTER 15V 113W |
1,659 |
|
数据手册 |
MBC225 (225W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 113W (225W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
