交流直流转换器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011365CHCOGRN-80-1004 OVP CHCO |
4,473 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | ||
|
|
1011366CHCOGRN-80-1005 OVP CHCO |
4,409 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | ||
|
VOF-100-12AC/DC CONVERTER 12V 100W |
4,889 |
|
数据手册 |
VOF-100 (100W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
VGS-350D-48AC-DC, 350 W, 48 VDC, SINGLE OUT |
4,319 |
|
数据手册 |
VGS-350D (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 7.32 A | - | - | - | - | - | 351W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.08" H (220.0mm x 62.0mm x 27.5mm) | ||
|
ENP-7030DAC/DC CNVT 3.3V 5V 2X12V -12V |
200 |
|
数据手册 |
- | Bulk | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | - | -12V | 13 A | 14 A | 20 A | 20 A | 300 mA | - | 597W | ITE (Commercial) | - | 0°C ~ 40°C | PFC, Standby Output, Universal Input | Chassis Mount | 3.93" L x 7.08" W x 1.59" H (99.8mm x 179.8mm x 40.4mm) | ||
|
ENP-7030BAC/DC CNVT 3.3V 5V 2X12V -12V |
100 |
|
数据手册 |
- | Bulk | Active | ATX | 5 | 90 ~ 265 VAC | 3.3V | 5V | 12V | 12V | -12V | - | 13 A | 14 A | 20 A | 20 A | 300 mA | - | 597W | ITE (Commercial) | - | 0°C ~ 40°C | PFC, Standby Output, Universal Input | Benchtop | 5.90" L x 3.20" W x 1.59" H (149.9mm x 81.3mm x 40.4mm) | ||
|
1011347GRN-110-1004 |
3,548 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
|
1011345GRN-110-1002 |
3,623 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
|
1011348GRN-110-1005 |
2,309 |
|
数据手册 |
GRN-110 (110W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|

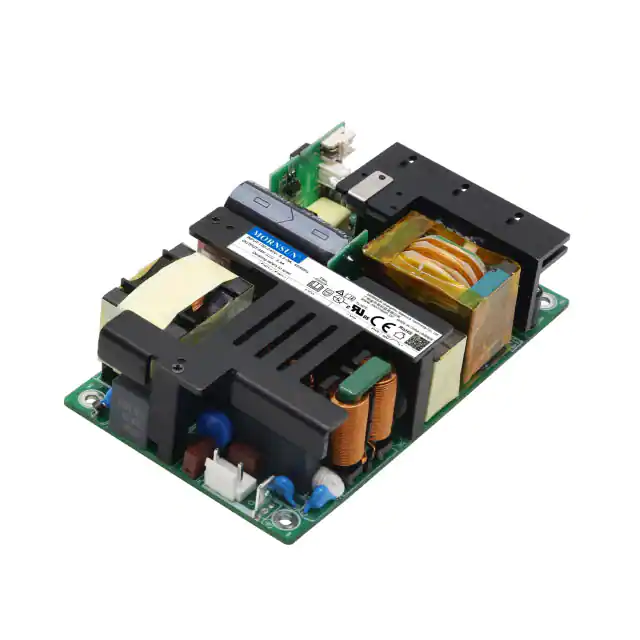

LOF550-20B24AC/DC CONVERTER 24V 322W |
651 |
|
数据手册 |
LOF550-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 22.9 A | - | - | - | - | - | 322W (550W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 400 V | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.59" H (127.0mm x 76.2mm x 40.5mm) | ||
|
|
LOF550-20B12AC/DC CONVERTER 12V 320W |
3,645 |
|
数据手册 |
LOF550-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 41.6 A | - | - | - | - | - | 320W (499W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 400 V | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.59" H (127.0mm x 76.2mm x 40.5mm) | ||
|
|
LOF550-20B48AC/DC CONVERTER 48V 322W |
3,702 |
|
数据手册 |
LOF550-20Bxx (450W) | Tray | Not For New Designs | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 11.46 A | - | - | - | - | - | 322W (550W Forced Air) | Household Appliances, ITE (Commercial), Laboratory | 400 V | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.59" H (127.0mm x 76.2mm x 40.5mm) | ||
|
|
VGS-350D-24AC-DC, 350 W, 24 VDC, SINGLE OUT |
1,763 |
|
数据手册 |
VGS-350D (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.08" H (220.0mm x 62.0mm x 27.5mm) | ||
|
GTM91110P15015FSIM(RAC/DC CONVERTER 15V 150W |
1,721 |
|
数据手册 |
GTM91110P150VV-F-S | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 4 kV | -10°C ~ 50°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | ||
|
ABC225-1T24LAC/DC CONVERTER 24V 113W |
2,207 |
|
数据手册 |
ABC225 (225W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.68 A | - | - | - | - | - | 113W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
ABC180-1024LAC/DC CONVERTER 24V 120W |
3,368 |
|
数据手册 |
ABC180 (180W) | Bulk | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 4.68 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | ||
|
|
VOF-70-28AC/DC CONVERTER 28V 70W |
523 |
|
数据手册 |
VOF-70 (70W) | Bulk | Active | Open Frame | 1 | 90 ~ 277 VAC | 28V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 70W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
MULP180-1315AC/DC CONVERTER 15V 120W |
2,785 |
|
数据手册 |
MULP180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (180W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | ||
|
1011388GRN-80-2002 OVP |
3,892 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 8 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
|
1011387GRN-80-2001 OVP |
3,590 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 2 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
