| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率(瓦特) | 应用 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFWLT300-1004AC/DC CONVERTER 48V 300W |
3,971 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
|
MPI-806H-BATX PSU, 60W convection, 80W wit |
2,458 |
|
数据手册 |
MPI-806H-B (80W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5V | 12V | -12V | 3.3V | - | - | 500 mA | 3 A | 6 A | 8 A | - | - | 102W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.04" L x 3.19" W x 1.57" H (128.0mm x 81.0mm x 40.0mm) | ||
|
1011395CHCOGRN-45-3001 OVP CHCO |
3,244 |
|
数据手册 |
GRN-45 (45W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 45W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | ||
|
1011396CHCOGRN-45-3002 OVP CHCO |
2,609 |
|
数据手册 |
GRN-45 (45W) | Box | Active | Enclosed | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 5 A | 1 A | 1 A | - | - | - | 55W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.75" W x 1.28" H (114.3mm x 69.9mm x 32.5mm) | ||
|

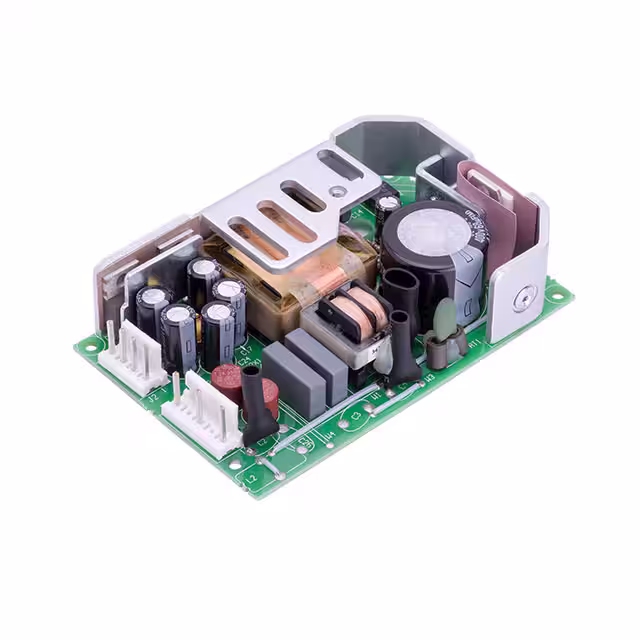

GSM28-12GAC/DC CONVERTER 12V 28W |
155 |
|
数据手册 |
GSM28 (28W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 28W | Medical | - | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.00" L x 2.59" W x 0.92" H (101.6mm x 65.8mm x 23.4mm) | ||
|
VMS-200-48AC/DC CONVERTER 48V 200W |
2,182 |
|
数据手册 |
VMS-200 (200W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 200W | Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) | ||
|
VMS-200-24AC/DC CONVERTER 24V 200W |
2,139 |
|
数据手册 |
VMS-200 (200W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Medical | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) | ||
|
ULP180-0012AC/DC CONVERTER 12V 120W |
1,916 |
|
数据手册 |
ULP180 (180W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.50" W x 0.75" H (101.6mm x 63.5mm x 19.1mm) | ||
|
|
MPB125-2012GAC/DC CONVERTER 2X12V 125W |
3,152 |
|
数据手册 |
MPB125 (125W) | Bulk | Obsolete | Open Frame | 2 | 90 ~ 264 VAC | 12V | 12V | - | - | - | - | 10.5 A | 500 mA | - | - | - | - | 125W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
MMK75S-12AC/DC CONVERTER 12V 75W |
4,167 |
|
数据手册 |
MMK75S (75W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 75W | Medical | 5.656 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - | ||
|
MMK75S-24AC/DC CONVERTER 24V 75W |
3,312 |
|
数据手册 |
MMK75S (75W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 75W | Medical | 5.656 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - | ||
|
PM202-12BN1AC/DC CONVERTER 12V 150W |
3,925 |
|
数据手册 |
PM202 (202W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
PM202-14BN1AC/DC CONVERTER 24V 150W |
1,720 |
|
数据手册 |
PM202 (202W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|

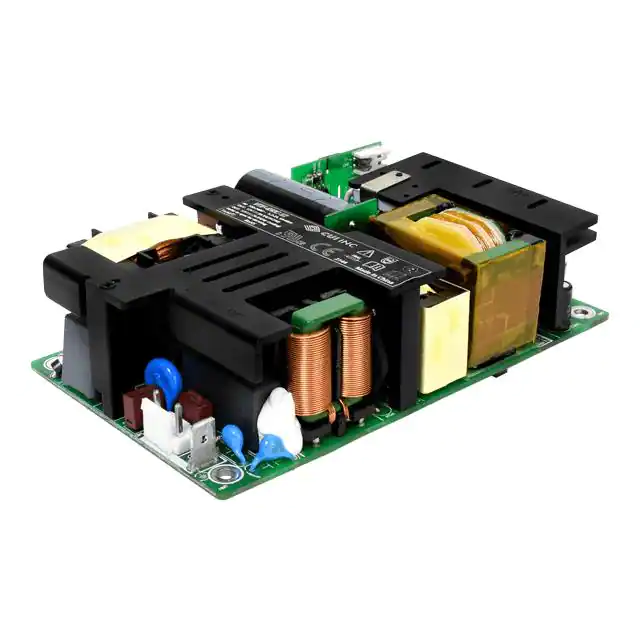

VOF-450C-12AC/DC CONVERTER 12V 400W |
124 |
|
数据手册 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 33.3 A | - | - | - | - | - | 400W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|
RACM150-15SAC/DC CONVERTER 15V 150W |
3,519 |
|
数据手册 |
MEDLINE RACM150 (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 9 A | - | - | - | - | - | 150W | Medical | 4 kV | -25°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.2mm) | ||
|
RACM150-48SAC/DC CONVERTER 48V 150W |
3,765 |
|
数据手册 |
MEDLINE RACM150 (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 150W | Medical | 4 kV | -25°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.2mm) | ||
|
RACM150-12SAC/DC CONVERTER 12V 150W |
2,313 |
|
数据手册 |
MEDLINE RACM150 (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 10.8 A | - | - | - | - | - | 150W | Medical | 4 kV | -25°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.94" H (116.8mm x 62.0mm x 49.2mm) | ||
|
PMMK150S-24-AAC/DC CONVERTER 24V 151W |
773 |
|
数据手册 |
PMMK150U (151W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Medical | 5.656 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.50" L x 3.17" W x 1.60" H (139.7mm x 80.5mm x 40.6mm) | ||
|
ABC275-1024LAC/DC CONVERTER 24V 160/275W |
4,984 |
|
数据手册 |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
1011258GRN-80-2002 |
3,186 |
|
数据手册 |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 8 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
