拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200RDP1T1B1M7RSWITCH TOGGLE DPDT 0.4VA 48V E-Switch |
182 |
|
数据手册 |
200R | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
100SP4T7B13M2QEHSWITCH TOGGLE SPDT 5A 120V E-Switch |
141 |
|
数据手册 |
100 | Tray | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

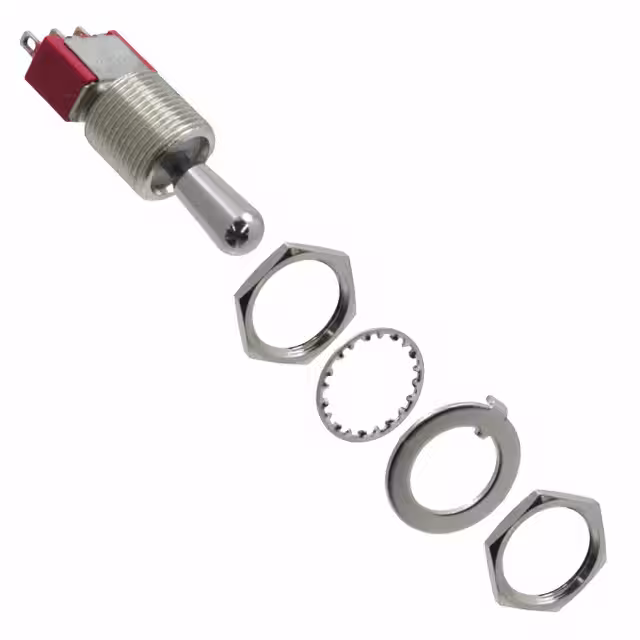

100SP4T7B13M1QEHSWITCH TOGGLE SPDT 5A 120V E-Switch |
423 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

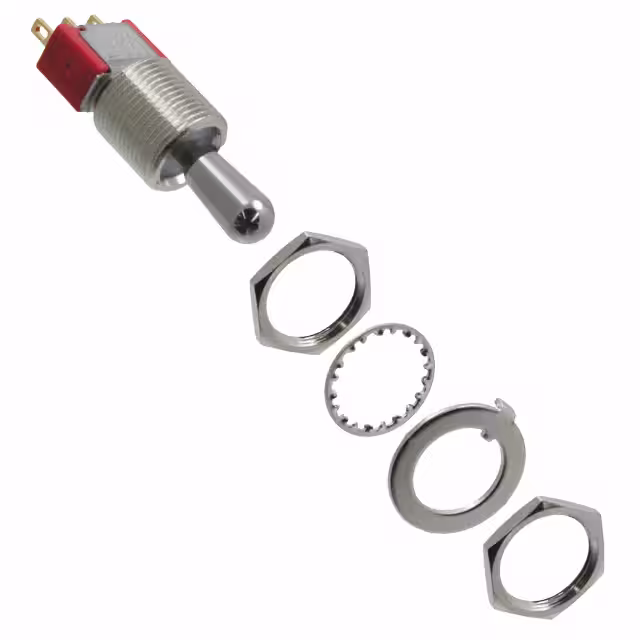

100SP3T7B13M1REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
477 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWDP1T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
252 |
|
数据手册 |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T8B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
710 |
|
数据手册 |
100 | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T2A1M6QESWITCH TOGGLE DPDT 3A 120V E-Switch |
211 |
|
数据手册 |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

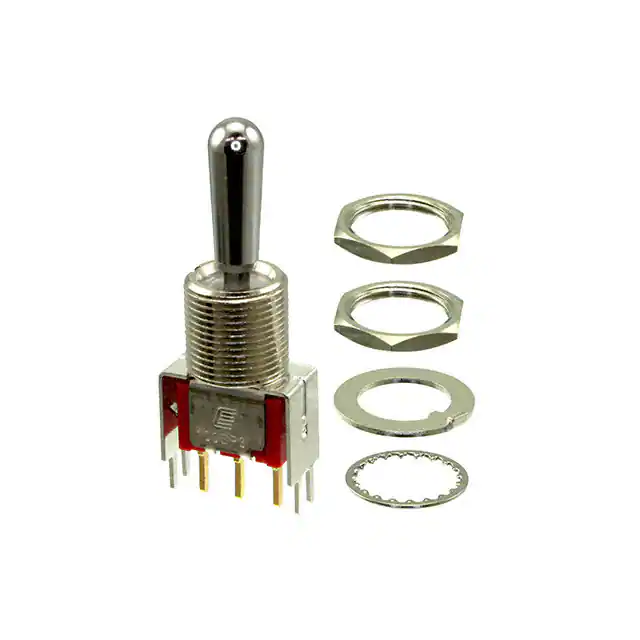

100SP3T8B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
253 |
|
数据手册 |
100 | Tray | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP6T1B4M7RESWITCH TOGGLE SP3T 0.4VA 20V E-Switch |
319 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100DP1K1B25M1REHSWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
152 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
