上传BOM单
拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP1T3B1M6REHSWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
983 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

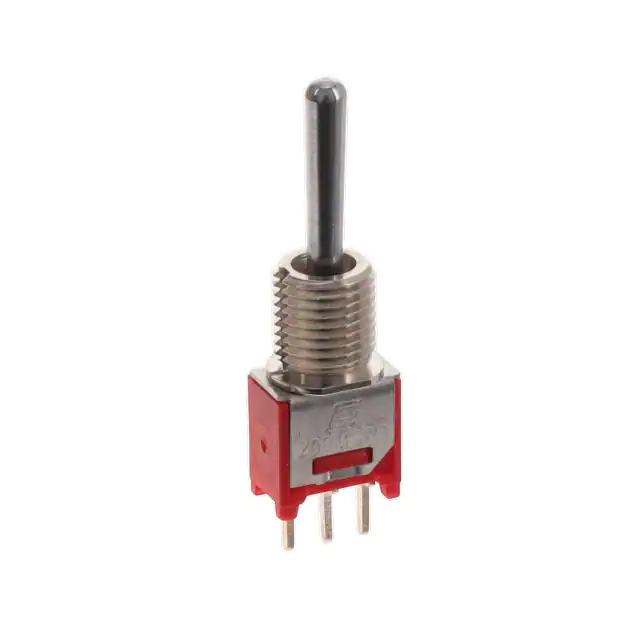

200MSP3T4B7M2QESWITCH TOGGLE SPDT 3A 120V E-Switch |
129 |
|
数据手册 |
200 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 11.68mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

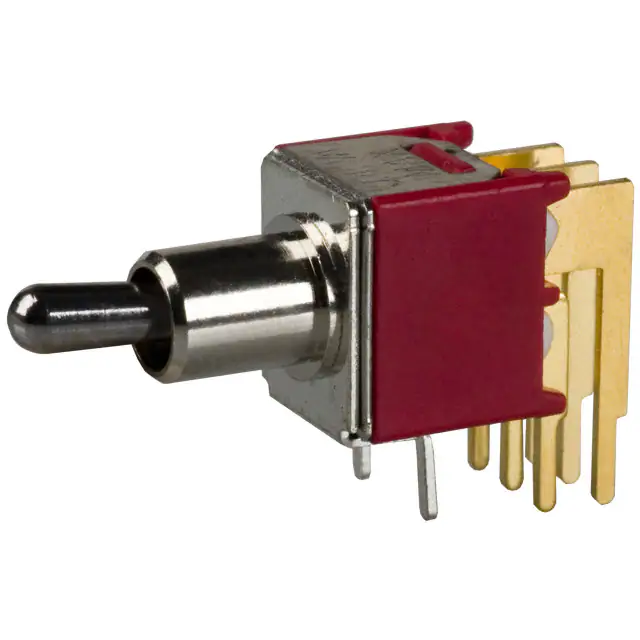

200MDP1T2B2M6RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
517 |
|
数据手册 |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

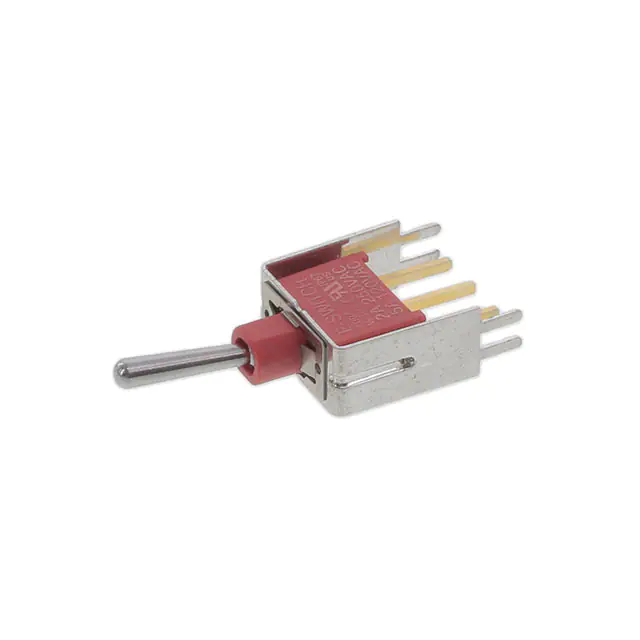

100AWSP1T1B4VS3QESWITCH TOGGLE SPDT 5A 120V E-Switch |
181 |
|
数据手册 |
100A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

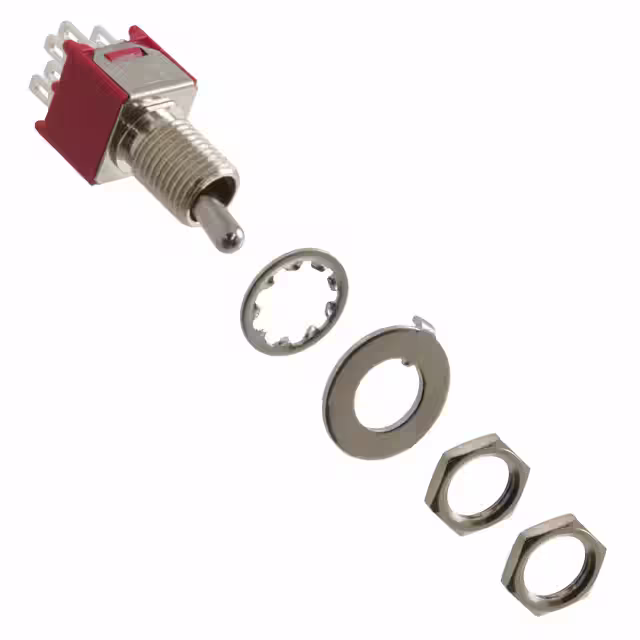

200MDP1T5B5M1QEHSWITCH TOGGLE DPDT 3A 120V E-Switch |
300 |
|
数据手册 |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T1A1M2RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
351 |
|
数据手册 |
200A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

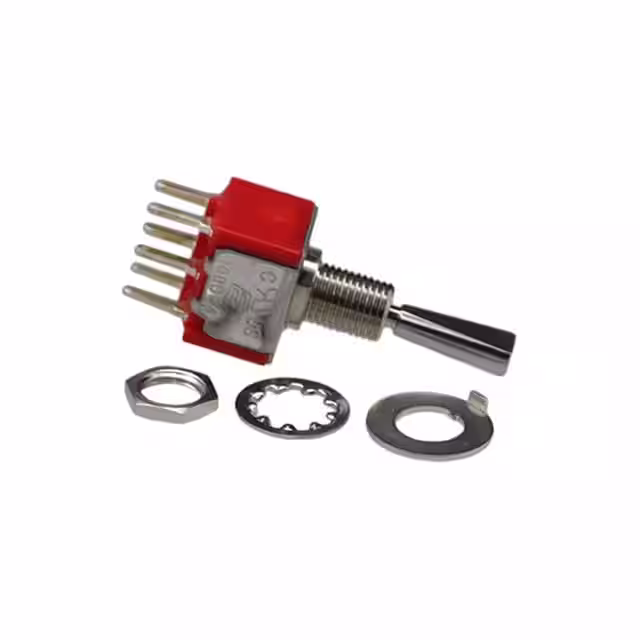

100DP4T6B11M2QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
479 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

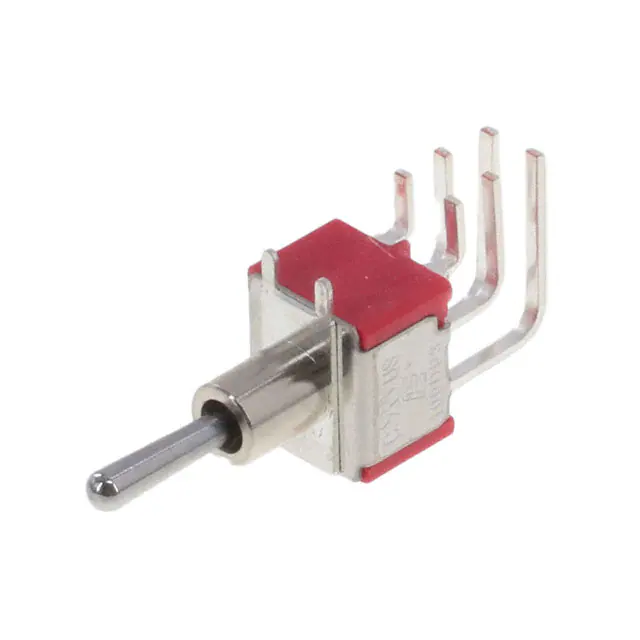

100DP3T1B4M7QESWITCH TOGGLE DPDT 5A 120V E-Switch |
687 |
|
数据手册 |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWSP1T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
178 |
|
数据手册 |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP5T6B11M1QEHSWITCH TOGGLE DPDT 5A 120V E-Switch |
512 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
