上传BOM单
拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MDP3T1B3M2QESWITCH TOGGLE DPDT 3A 120V E-Switch |
4,358 |
|
数据手册 |
200 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T7B13M2REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
2,689 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200AWMDP1T2A2M2RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
3,371 |
|
数据手册 |
200A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP5T3B9M1RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
3,788 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MSP3T2B1M7QESWITCH TOGGLE SPDT 3A 120V E-Switch |
2,780 |
|
数据手册 |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

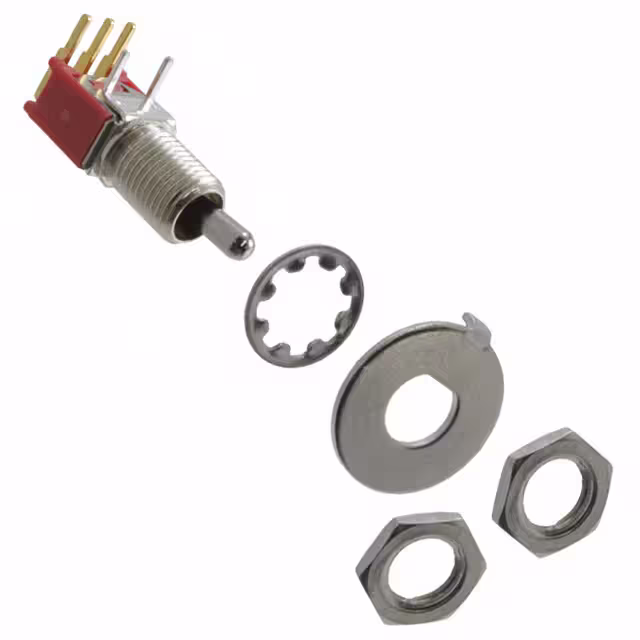

200MSP1T3B5M6REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
1,416 |
|
数据手册 |
200 | Tray | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T8B13M1REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
1,740 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T1B6M1QEHSWITCH TOGGLE SP3T 5A 120V E-Switch |
3,454 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
100SP5T6B11M1RESWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
3,049 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP2T4B3M1QESWITCH TOGGLE DPDT 3A 120V E-Switch |
3,883 |
|
数据手册 |
200 | Bulk | Active | Panel Mount | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
