拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP5T1B9M1QESWITCH TOGGLE DPDT 5A 120V E-Switch |
1,126 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

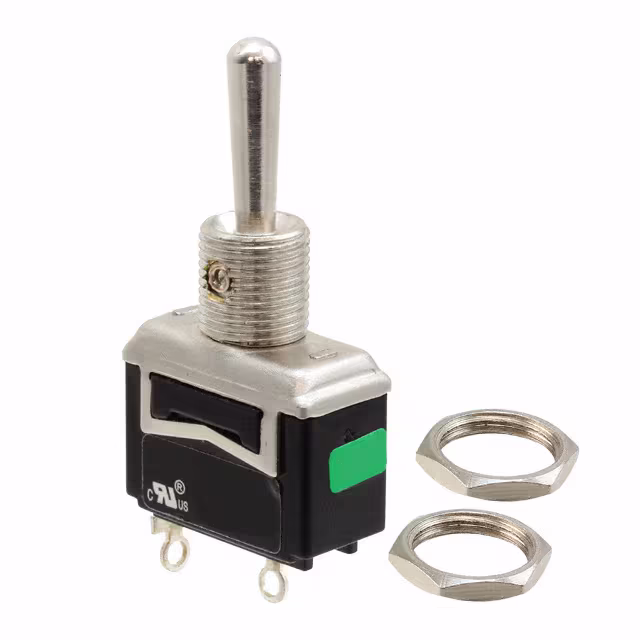

ST124D00SWITCH TOGGLE SPST-NO 20A 125V E-Switch |
1,929 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
ST14MD02SWITCH TOGGLE SPST 20A 125V E-Switch |
1,266 |
|
数据手册 |
ST1 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
100DP5T2B1M2RESWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
3,542 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B1M7QESWITCH TOGGLE DPDT 5A 120V E-Switch |
4,915 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T1B1M7QESWITCH TOGGLE DPDT 3A 120V E-Switch |
4,947 |
|
数据手册 |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B3VS5REHSWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
1,115 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T8B13M2QEHSWITCH TOGGLE SPDT 5A 120V E-Switch |
1,603 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T2B1M2REHSWITCH TOGGLE DPDT 0.4VA 20V E-Switch |
3,671 |
|
数据手册 |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T6B11M6REHSWITCH TOGGLE SPDT 0.4VA 20V E-Switch |
4,545 |
|
数据手册 |
100 | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
