拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3531001N000SWITCH TOGGLE SPST 20A 28V APEM Inc. |
2,172 |
|
数据手册 |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
MTG72AD4SWITCH TOGGLE SPDT 6A 30V APEM Inc. |
871 |
|
数据手册 |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Paddle | 16.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
MTG72AD3SWITCH TOGGLE SPDT 6A 30V APEM Inc. |
4,424 |
|
数据手册 |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Winged | 15.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
12146AKSWITCH TOGGLE DPDT 4A 125V APEM Inc. |
3,477 |
|
数据手册 |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

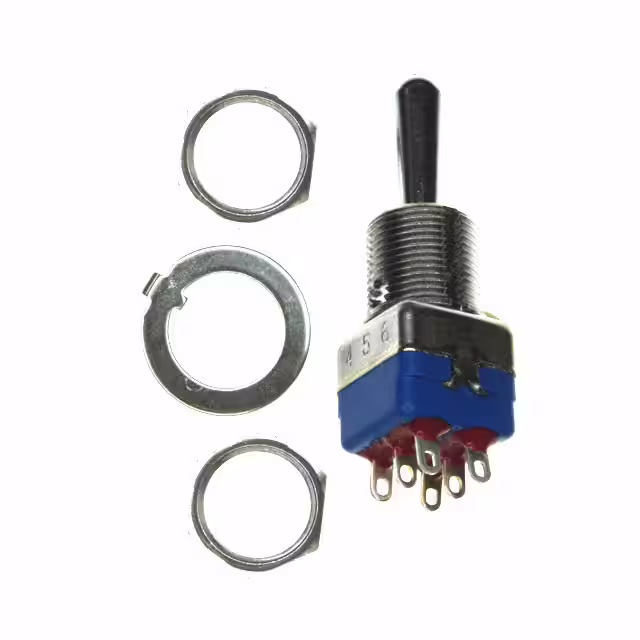

12147ASWITCH TOGGLE DPDT 4A 125V APEM Inc. |
2,936 |
|
数据手册 |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

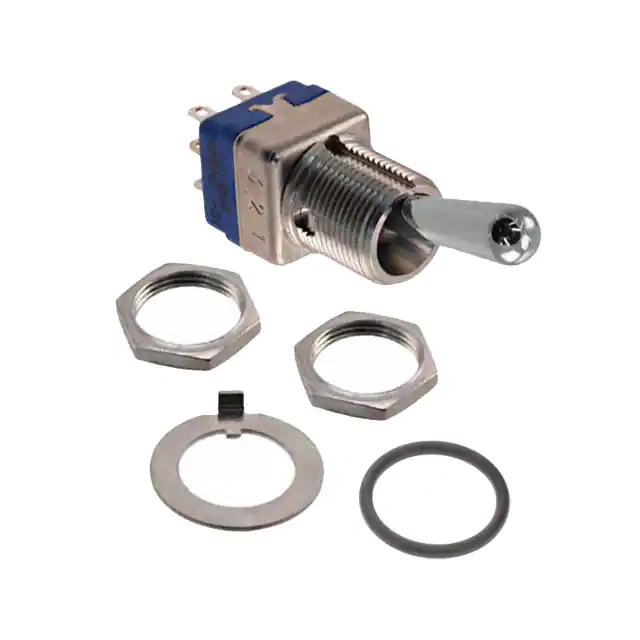

12146AD2GKSWITCH TOGGLE DPDT 4A 125V APEM Inc. |
4,995 |
|
数据手册 |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|

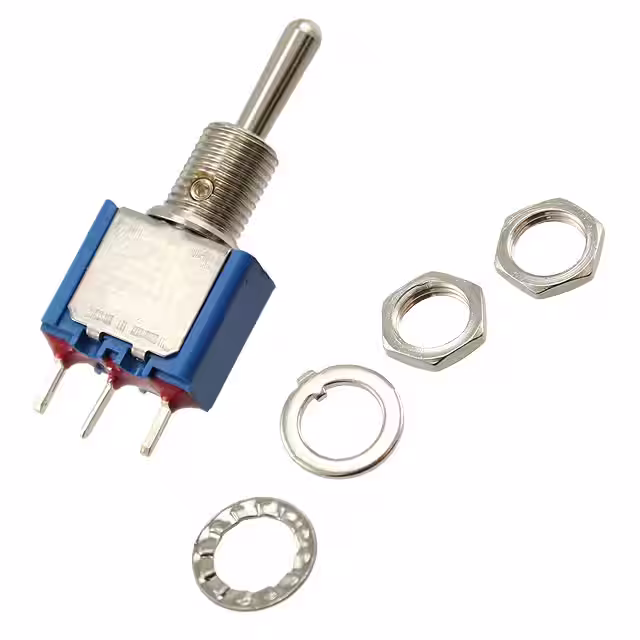

5239ABSWITCH TOGGLE SPDT 6A 125V APEM Inc. |
3,156 |
|
数据手册 |
5000 | Tray | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

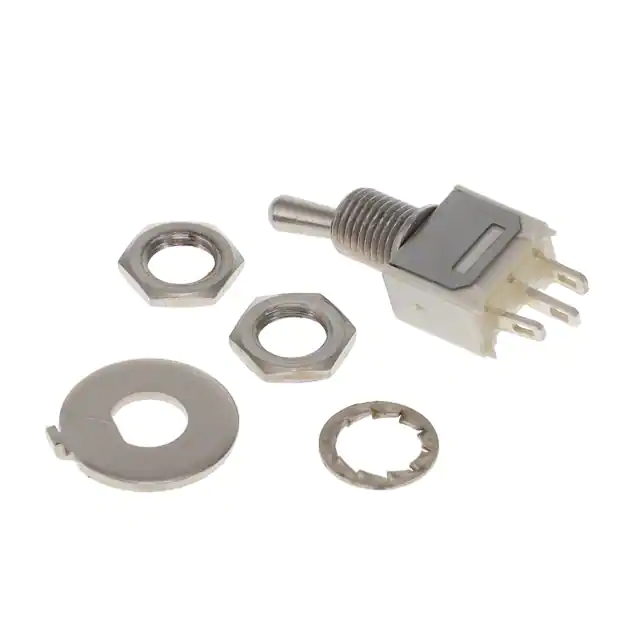

ZL36S010100SWITCH TOGGLE SPDT 500MA 48V APEM Inc. |
105 |
|
数据手册 |
ZL | Bulk | Active | Panel Mount | SPDT | On-On | 500mA (AC/DC) | 48 V | 48 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.90mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL38P000000SWITCH TOGGLE SPDT 0.4VA 20V APEM Inc. |
169 |
|
数据手册 |
TL | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

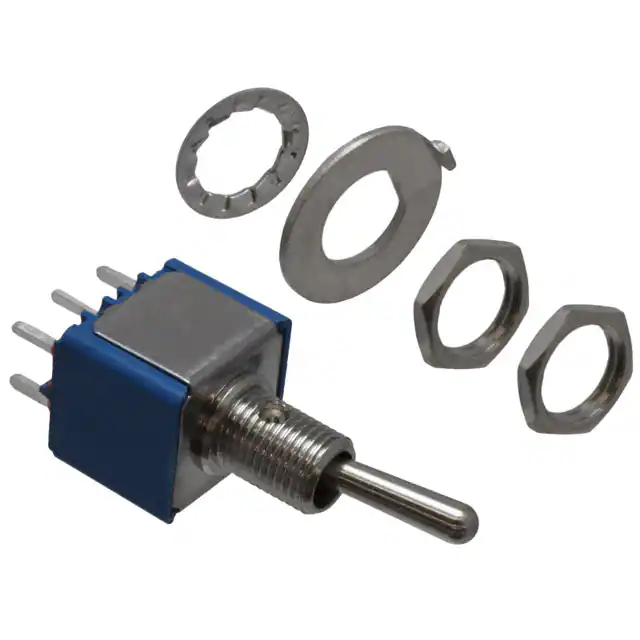

5246ABSWITCH TOGGLE DPDT 6A 125V APEM Inc. |
2,356 |
|
数据手册 |
5000 | Tray | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
