拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

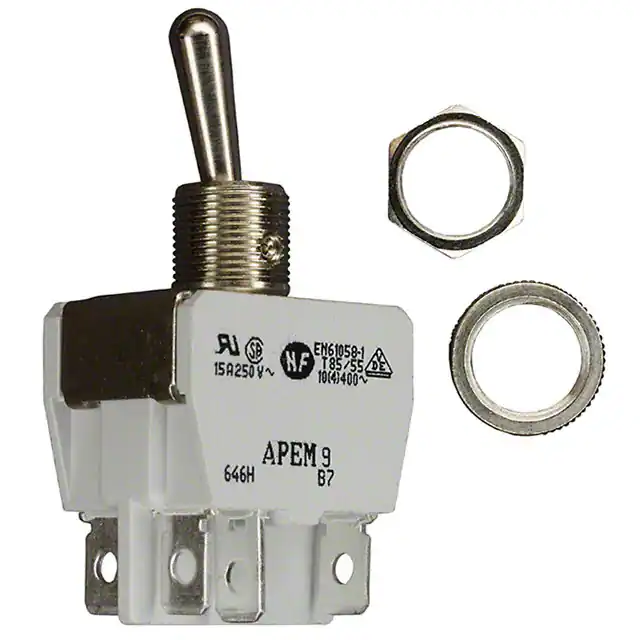

646H/2SWITCH TOGGLE DPDT 15A 250V APEM Inc. |
1,158 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

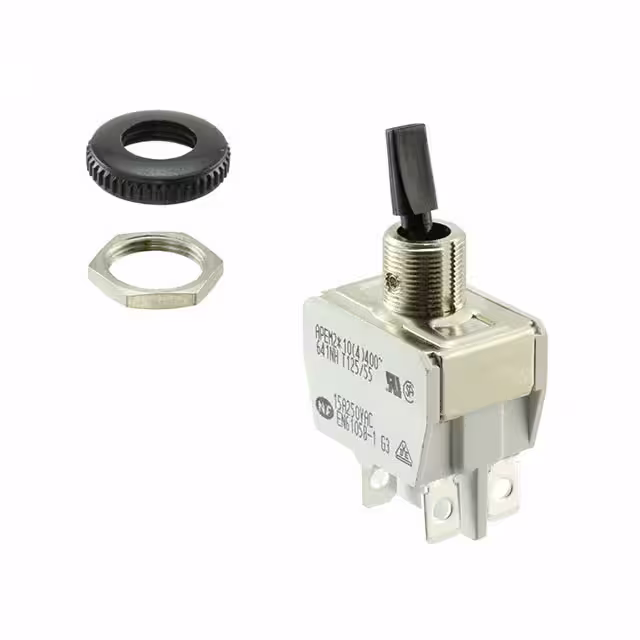

641NH/2SWITCH TOGGLE DPST 15A 250V APEM Inc. |
363 |
|
数据手册 |
600NH | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
641H/2SWITCH TOGGLE DPST 15A 250V APEM Inc. |
211 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

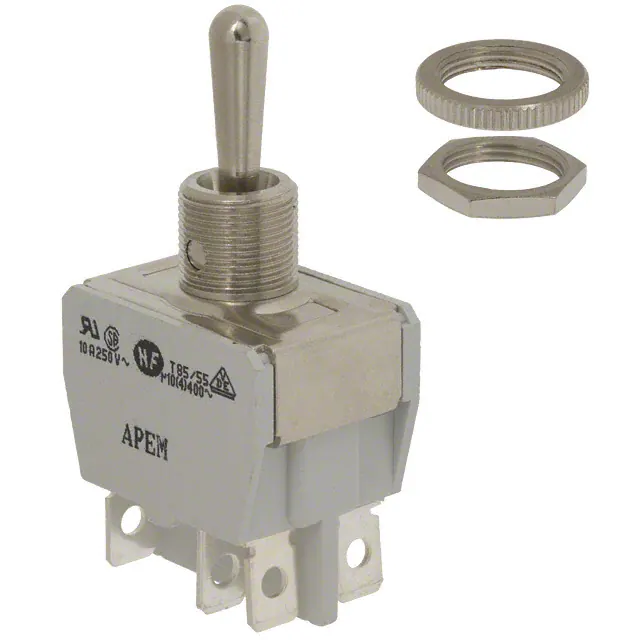

647H/2SWITCH TOGGLE DPDT 10A 250V APEM Inc. |
118 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
5646AB2VSWITCH TOGGLE DPDT 6A 125V APEM Inc. |
195 |
|
数据手册 |
5000 | Tray | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 14.75mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
646HSWITCH TOGGLE DPDT 15A 250V APEM Inc. |
213 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
644H/2SWITCH TOGGLE DPDT 10A 250V APEM Inc. |
268 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | On-On-On | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
11136ASWITCH TOGGLE SPDT 4A 125V APEM Inc. |
353 |
|
数据手册 |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
3636NF/2SWITCH TOGGLE SPDT 6A 125V APEM Inc. |
274 |
|
数据手册 |
3600NF | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

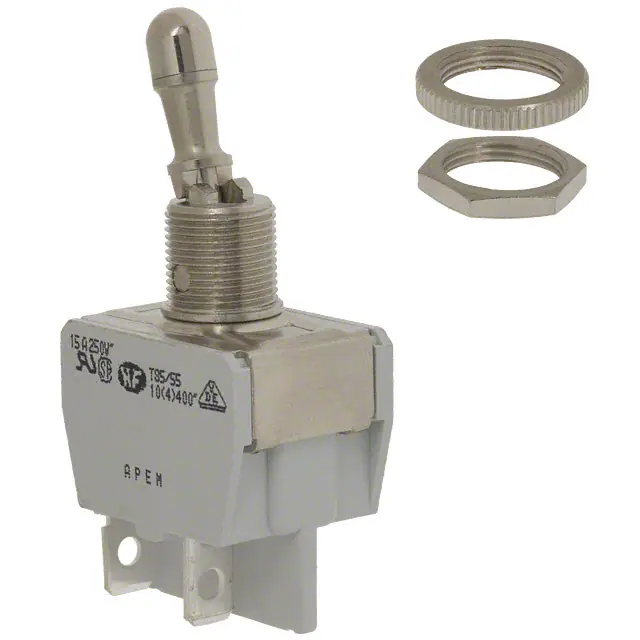

641H/22VSWITCH TOGGLE DPST 15A 250V APEM Inc. |
125 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Locking Lever | 19.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
