拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

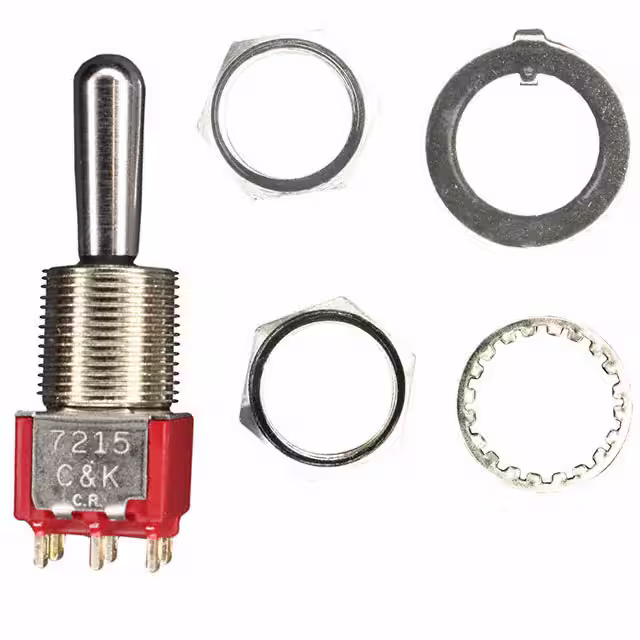

7215TZQESWITCH TOGGLE SP3T 5A 120V |
1,051 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
WT18SSWITCH TOGGLE SPDT 10A 125V |
3,784 |
|
数据手册 |
WT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
7401MPYZBESWITCH TOGGLE 4PDT 0.4VA 20V |
3,510 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

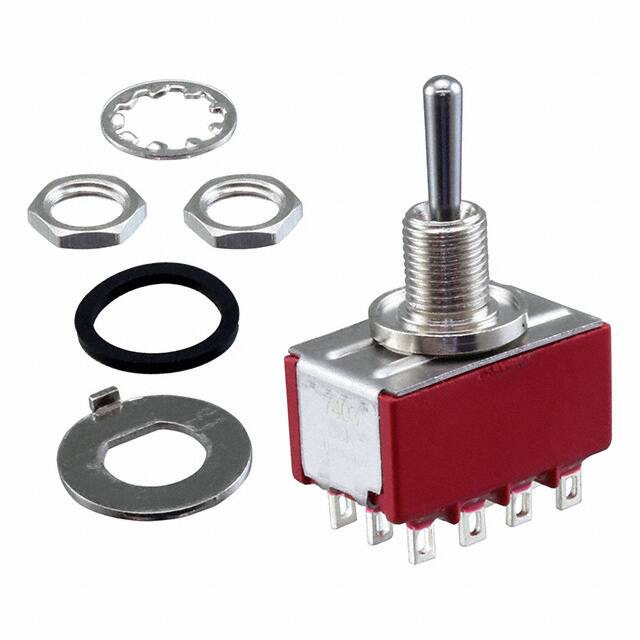

7403SCWZQESWITCH TOGGLE 4PDT 5A 120V |
2,140 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

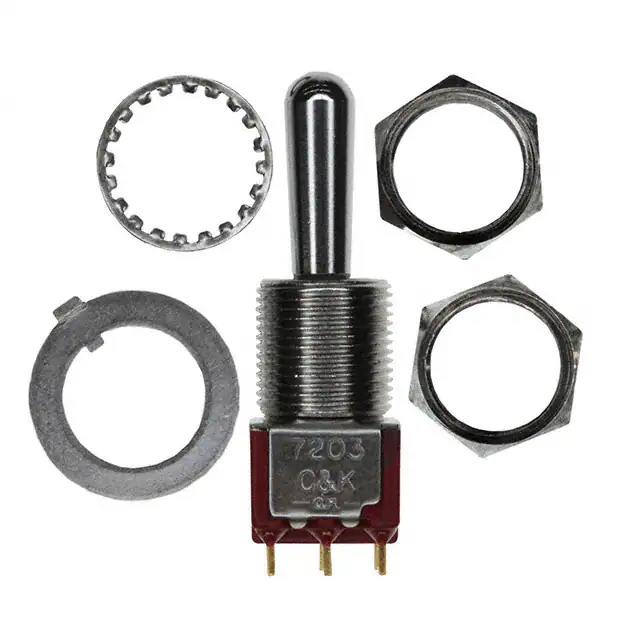

7203TCWZGESWITCH TOGGLE DPDT 5A 120V |
4,373 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S29AWFSWITCH TOGGLE DPDT 15A 125V |
4,347 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
62NT1-7-NHSWITCH TOGGLE DPDT 10A 125V |
3,458 |
|
数据手册 |
NT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
S8AW-WLSWITCH TOGGLE SPDT 15A 125V |
4,915 |
|
数据手册 |
S | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
S333F/USWITCH TOGGLE DPDT 25A 125V |
3,564 |
|
数据手册 |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S422SWITCH TOGGLE DPDT 25A 125V |
1,374 |
|
数据手册 |
S400 | Bulk | Active | Panel Mount | DPDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
ET425N12-ZSWITCH TOGGLE 4PDT 25A 125V |
4,471 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | 4PDT | On-On | 25A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
S333FSWITCH TOGGLE DPDT 25A 125V |
4,801 |
|
数据手册 |
S300 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
S7AW-WLSWITCH TOGGLE DPDT 20A 125V |
1,585 |
|
数据手册 |
S | Box | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
5644THAB3VSWITCH TOGGLE SP3T 6A 125V |
4,891 |
|
数据手册 |
5000 | Tray | Active | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
648H/2SWITCH TOGGLE DPDT 10A 250V |
3,649 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
S7AWFSWITCH TOGGLE DPDT 20A 125V |
4,361 |
|
数据手册 |
S | Bulk | Active | Panel Mount | DPDT | On-Off-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|

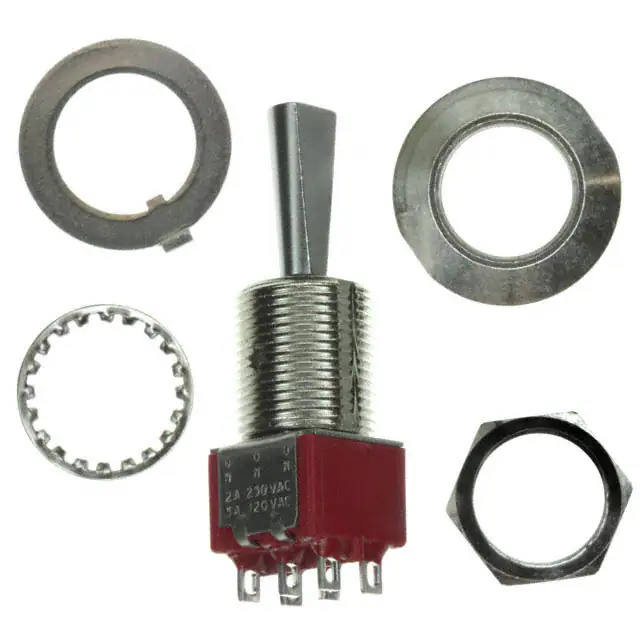

7211T2PZQESWITCH TOGGLE SP3T 5A 120V |
3,386 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 15.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
WT29SSWITCH TOGGLE DPDT 10A 125V |
1,672 |
|
数据手册 |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
7303SDCQESWITCH TOGGLE 3PDT 5A 120V |
2,170 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55025-04SWITCH TOGGLE SPDT 15A 24V |
3,042 |
|
数据手册 |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 15.30mm | Non-Illuminated | - | - | Wire Leads | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
