拨动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 面板开孔尺寸 | 衬套螺纹 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7207SYCQESWITCH TOGGLE DPDT 5A 120V |
3,764 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
635HSWITCH TOGGLE SPDT 10A 250V |
3,196 |
|
数据手册 |
600H | Bulk | Active | Panel Mount | SPDT | On-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
T101SCFZQESWITCH TOGGLE SPDT 3A 120V |
1,417 |
|
数据手册 |
T | Tray | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 7.11mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S331F/CULSWITCH TOGGLE DPST 20A 125V |
2,669 |
|
数据手册 |
S300 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7101K12CQESWITCH TOGGLE SPDT 5A 120V |
2,152 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
6GA5B-73SWITCH TOGGLE SPST-NO 15A 125V |
4,736 |
|
数据手册 |
G | Box | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
7207SYZQESWITCH TOGGLE DPDT 5A 120V |
1,158 |
|
数据手册 |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
4,657 |
|
数据手册 |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12JJHCFSWITCH TOGGLE SPDT 0.4VA 28V |
1,631 |
|
数据手册 |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|

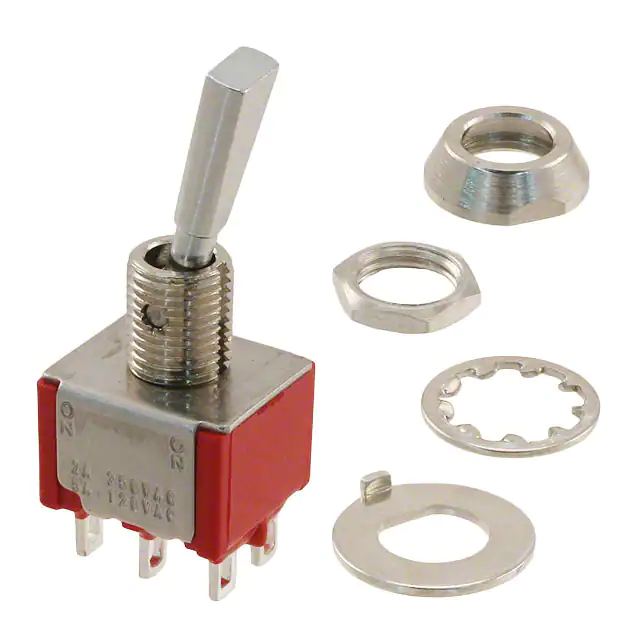

7201P3DZQESWITCH TOGGLE DPDT 5A 120V |
2,166 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201MD9AV2QESWITCH TOGGLE DPDT 5A 120V |
1,127 |
|
数据手册 |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

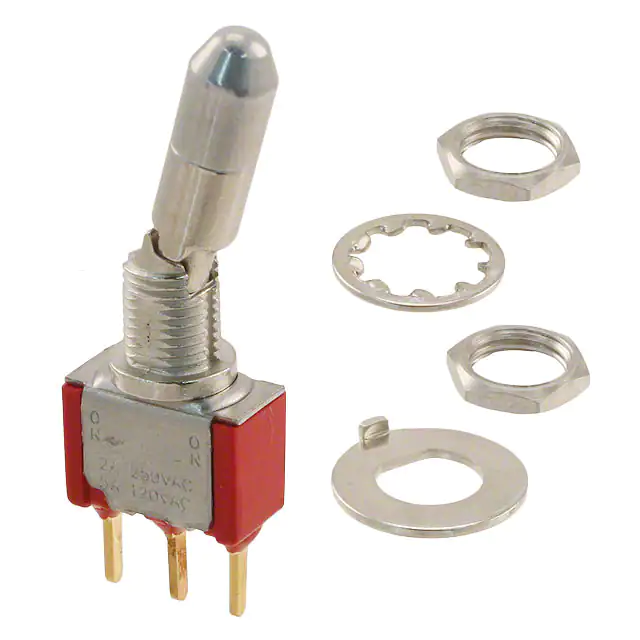

7101K2CGESWITCH TOGGLE SPDT 5A 120V |
100 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET215N10-ZSWITCH TOGGLE DPDT 15A 125V |
2,413 |
|
数据手册 |
ET | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
55021SWITCH TOGGLE SPDT 15A 24V |
2,689 |
|
数据手册 |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
6FA54-73SWITCH TOGGLE SPST-NO 15A 125V |
4,768 |
|
数据手册 |
F | Box | Active | Panel Mount | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
SQR14141XXSWITCH TOGGLE SP4T 15A 120V |
2,289 |
|
数据手册 |
Square D, X | Box | Active | Panel Mount | SP4T | - | 15A (AC) | 120 V | - | - | - | - | - | - | Screw Terminal | - | - | - | - | -5°C ~ 45°C |
|
7205TCWCGESWITCH TOGGLE DPDT 5A 120V |
3,967 |
|
数据手册 |
7000 | Tray | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S9AWSWITCH TOGGLE SPDT 15A 125V |
3,056 |
|
数据手册 |
S | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
5588SWITCH TOGGLE DPST 15A 24V |
3,231 |
|
数据手册 |
- | Bulk | Active | Panel Mount | DPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
7201MD9V3QESWITCH TOGGLE DPDT 5A 120V |
2,809 |
|
数据手册 |
7000 | Tray | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
