通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VR68000006805FAC00VR68 1% AC 68M Vishay Beyschlag/Draloric/BC Components |
3,479 |
|
数据手册 |
VR68 | Cut Tape (CT) | Last Time Buy | 68 MOhms | ±1% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
AC03000003601JAC00RES 3.6K OHM 3W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,464 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 3.6 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
|
AC03000004301JAC00RES 4.3K OHM 3W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,006 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 4.3 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|

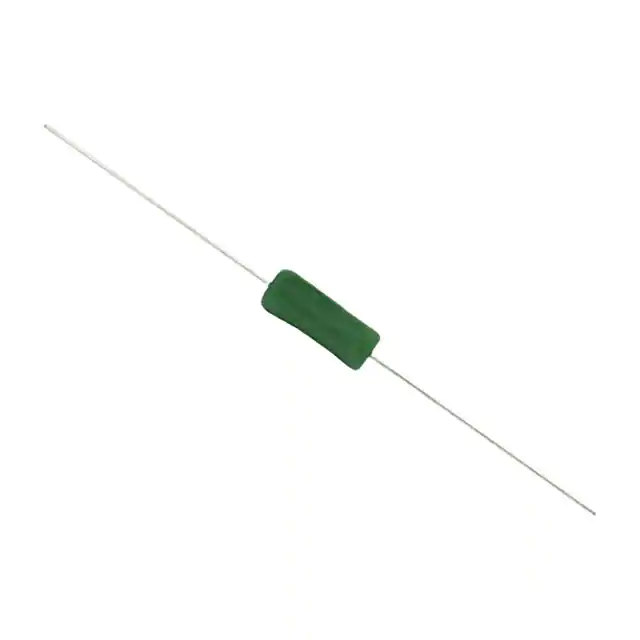

G24071931007J7A000RES 0.1 OHM 5% WW Vishay Beyschlag/Draloric/BC Components |
1,553 |
|
数据手册 |
G200 | Cut Tape (CT) | Active | 100 mOhms | ±5% | 7W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 100/ +180ppm/°C | -55°C ~ 350°C | Axial | 0.335" Dia x 0.760" L (8.50mm x 19.30mm) | - | 2 | - |
|
|
G24071932209J7A000RES 22 OHM 5% WW Vishay Beyschlag/Draloric/BC Components |
1,497 |
|
数据手册 |
G200 | Cut Tape (CT) | Active | 22 Ohms | ±5% | 7W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 100/ +180ppm/°C | -55°C ~ 350°C | Axial | 0.335" Dia x 0.760" L (8.50mm x 19.30mm) | - | 2 | - |
|
AC07000009101JAC00RES 9.1K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
1,695 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 9.1 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000001102JAC00RES 11K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,655 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 11 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
PAC500007501FAC000RES 7.5K OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,686 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 7.5 kOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
PAC500009101FAC000RES 9.1K OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,584 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 9.1 kOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
UXB02070G1002BCU00RES 10K OHM 1/4W 0.1% AXIAL Vishay Beyschlag/Draloric/BC Components |
4,961 |
|
数据手册 |
UXB 0207 | Tape & Box (TB) | Active | 10 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | ±5ppm/°C | -20°C ~ 125°C | Axial | 0.098" Dia x 0.248" L (2.50mm x 6.30mm) | - | 2 | - |
