通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC07000003601JAC00RES 3.6K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,352 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 3.6 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000003901JAC00RES 3.9K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
4,885 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 3.9 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000005601JAC00RES 5.6K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
1,368 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 5.6 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000001302JAC00RES 13K OHM 7W 5% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,187 |
|
数据手册 |
AC | Cut Tape (CT) | Active | 13 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
PAC500006801FAC000RES 6.8K OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
2,127 |
|
数据手册 |
PAC | Tape & Box (TB) | Active | 6.8 kOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
G22041432200J4C000RES 220 OHM 5% WW Vishay Beyschlag/Draloric/BC Components |
1,544 |
|
数据手册 |
G200 | Cut Tape (CT) | Active | 220 Ohms | ±5% | 4W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 100/ +180ppm/°C | -55°C ~ 350°C | Axial | 0.224" Dia x 0.512" L (5.70mm x 13.00mm) | - | 2 | - |
|
|
G22041432701J4A000RES 2.7K OHM 5% WW Vishay Beyschlag/Draloric/BC Components |
1,664 |
|
数据手册 |
G200 | Cut Tape (CT) | Active | 2.7 kOhms | ±5% | 4W | Wirewound | Flame Proof, Pulse Withstanding, Safety | 100/ +180ppm/°C | -55°C ~ 350°C | Axial | 0.224" Dia x 0.512" L (5.70mm x 13.00mm) | - | 2 | - |
|
PAC300001507FAC000RES 0.15 OHM 3W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
4,067 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 150 mOhms | ±1% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|

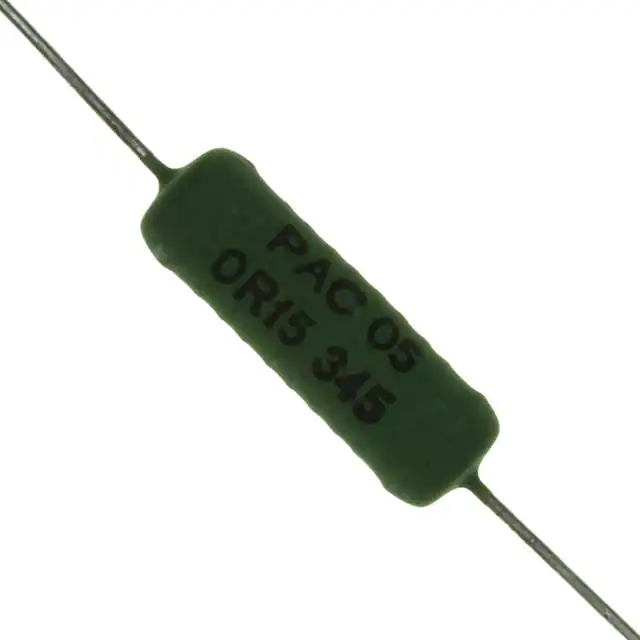

PAC500001507FAC000RES 0.15 OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
3,306 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 150 mOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
PAC500003007FAC000RES 0.3 OHM 5W 1% AXIAL Vishay Beyschlag/Draloric/BC Components |
1,407 |
|
数据手册 |
PAC | Cut Tape (CT) | Active | 300 mOhms | ±1% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
