通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HPA5R018JRES 0.018 OHM 5% 5W AXIAL |
2,801 |
|
数据手册 |
HPA, CGS | Bulk | Active | 18 mOhms | ±5% | 5W | Metal Foil | Current Sense | ±100ppm/°C | - | Axial | 0.374" Square x 0.846" L (9.50mm x 21.50mm) | - | 2 | - |
|

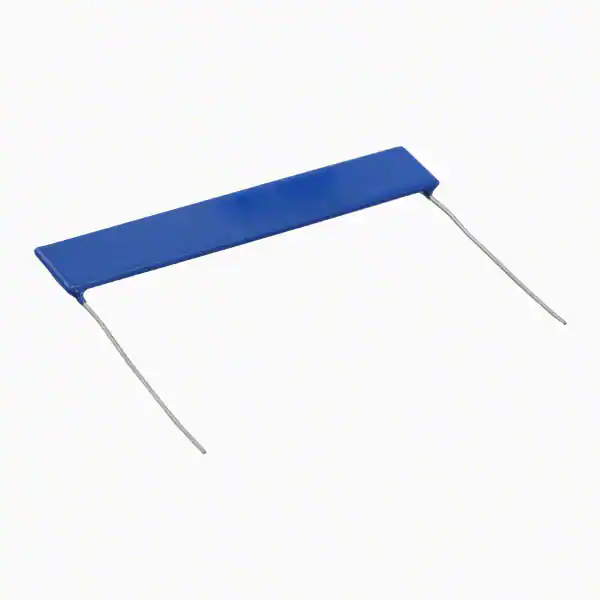

HB35M0JRZERES 5M OHM 5% 2W RADIAL |
3,939 |
|
数据手册 |
HB, CGS | Tray | Obsolete | 5 MOhms | ±5% | 2W | Thick Film | High Voltage, Pulse Withstanding | ±100ppm/°C | -55°C ~ 125°C | Radial Lead | 2.047" L x 0.118" W (52.00mm x 3.00mm) | 0.409" (10.40mm) | 2 | - |
|
|
1879103-1RES 56 OHM 5% 3W AXIAL |
2,294 |
|
数据手册 |
ES, CGS | Tape & Reel (TR) | Obsolete | 56 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES05W100RJRES 100 OHM 5% 1/2W AXIAL |
2,651 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 100 Ohms | ±5% | 0.5W, 1/2W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.118" Dia x 0.354" L (3.00mm x 9.00mm) | - | 2 | - |
|
CBT50J1R0RES 1 OHM 5% 1/2W AXIAL |
1,374 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 1 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | -600/ +200ppm/°C | -55°C ~ 125°C | Axial | 0.142" Dia x 0.374" L (3.60mm x 9.50mm) | - | 2 | - |
.jpg)
|
CFR16J3M9RES 3.9M OHM 5% 1/4W AXIAL |
1,919 |
|
数据手册 |
CFR16, Neohm | Tape & Box (TB) | Active | 3.9 MOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | 0/ -1500ppm/°C | -55°C ~ 155°C | Axial | 0.073" Dia x 0.138" L (1.85mm x 3.50mm) | - | 2 | - |
|
|
ZR0204CRES 0 OHM JUMPER 1/8W AXIAL |
4,474 |
|
数据手册 |
ZR, Neohm | Tape & Box (TB) | Obsolete | 0 Ohms | Jumper | 0.125W, 1/8W | Metal Foil | - | - | -55°C ~ 125°C | Axial | 0.073" Dia x 0.138" L (1.85mm x 3.50mm) | - | 2 | - |
|
|
CFR200J12KRES 12K OHM 5% 2W AXIAL |
3,612 |
|
数据手册 |
CFR200, Neohm | Tape & Box (TB) | Active | 12 kOhms | ±5% | 2W | Carbon Film | - | 0/ -450ppm/°C | -55°C ~ 155°C | Axial | 0.217" Dia x 0.630" L (5.50mm x 16.00mm) | - | 2 | - |
|
CBT50J100RRES 100 OHM 5% 1/2W AXIAL |
3,638 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 100 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | -600/ +200ppm/°C | -55°C ~ 125°C | Axial | 0.142" Dia x 0.374" L (3.60mm x 9.50mm) | - | 2 | - |
|
CBT25J4R7RES 4.7 OHM 5% 1/4W AXIAL |
2,356 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Active | 4.7 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
|
CBT25J100RRES 100 OHM 5% 1/4W AXIAL |
3,866 |
|
数据手册 |
CBT, Neohm | Cut Tape (CT) | Obsolete | 100 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J10RRES 10 OHM 5% 1/4W AXIAL |
3,262 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 10 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J150RRES 150 OHM 5% 1/4W AXIAL |
3,712 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 150 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J15KRES 15K OHM 5% 1/4W AXIAL |
3,776 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 15 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J15RRES 15 OHM 5% 1/4W AXIAL |
2,744 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Active | 15 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J1K0RES 1K OHM 5% 1/4W AXIAL |
1,393 |
|
数据手册 |
CBT, Neohm | Cut Tape (CT) | Obsolete | 1 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J1K5RES 1.5K OHM 5% 1/4W AXIAL |
1,732 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 1.5 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J1M5RES 1.5M OHM 5% 1/4W AXIAL |
3,481 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Active | 1.5 MOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J1R5RES 1.5 OHM 5% 1/4W AXIAL |
3,211 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 1.5 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
|
CBT25J220RRES 220 OHM 5% 1/4W AXIAL |
4,613 |
|
数据手册 |
CBT, Neohm | Tape & Box (TB) | Obsolete | 220 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | -700/ +400ppm/°C | -55°C ~ 125°C | Axial | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | - | 2 | - |
