通孔式电阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻 | 容差 | 功率 (W) | 成分 | 特性 | 温度系数 | 工作温度 | 供应商器件封装 | 尺寸 / 尺寸 | 高度 - 安装（最大值） | 端子数 | 故障率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

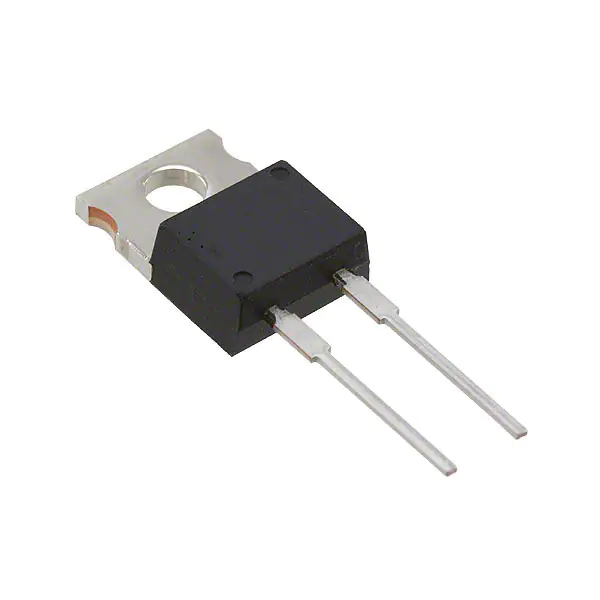

MPR20C33RJRES 33 OHM 5% 20W TO220-2 |
3,048 |
|
数据手册 |
MPR, CGS | Bulk | Obsolete | 33 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20C1K0JRES 1K OHM 5% 20W TO220-2 |
3,101 |
|
数据手册 |
MPR, CGS | Bulk | Active | 1 kOhms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20C22RJRES 22 OHM 5% 20W TO220-2 |
1,362 |
|
数据手册 |
MPR, CGS | Tray | Obsolete | 22 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20C220RJRES 220 OHM 5% 20W TO220-2 |
4,507 |
|
数据手册 |
MPR, CGS | Bulk | Obsolete | 220 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20H10RJRES 10 OHM 5% 20W TO220-2 |
1,450 |
|
数据手册 |
MPR, CGS | Bulk | Obsolete | 10 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20H470RJRES 470 OHM 5% 20W TO220-2 |
4,730 |
|
数据手册 |
MPR, CGS | Bulk | Active | 470 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20C33KJRES 33K OHM 5% 20W TO220-2 |
2,302 |
|
数据手册 |
MPR, CGS | Bulk | Active | 33 kOhms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20C470RJRES 470 OHM 5% 20W TO220-2 |
4,319 |
|
数据手册 |
MPR, CGS | Bulk | Obsolete | 470 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20HR47JRES 0.47 OHM 5% 20W TO220-2 |
1,690 |
|
数据手册 |
MPR, CGS | Bulk | Obsolete | 470 mOhms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±250ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20A6R8JRES 6.8 OHM 5% 20W TO220-2 |
2,494 |
|
数据手册 |
MPR, CGS | Bulk | Active | 6.8 Ohms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±100ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
|
MPR20H15KJRES 15K OHM 5% 20W TO220-2 |
2,398 |
|
数据手册 |
MPR, CGS | Bulk | Active | 15 kOhms | ±5% | 20W | Thick Film | Flame Proof, Non-Inductive, Safety | ±50ppm/°C | -55°C ~ 155°C | TO-220-2 | 0.417" L x 0.177" W (10.60mm x 4.50mm) | 0.748" (19.00mm) | 2 | - |
|
ES3W3R3JRES 3.3 OHM 5% 3W AXIAL |
3,511 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 3.3 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES3WR07JRES 0.07 OHM 5% 3W AXIAL |
1,360 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 70 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES3W150RJRES 150 OHM 5% 3W AXIAL |
3,267 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 150 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES3W100RJRES 100 OHM 5% 3W AXIAL |
3,256 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 100 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES3W47RJRES 47 OHM 5% 3W AXIAL |
1,478 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 47 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES3W100RJTRRES 100 OHM 5% 3W AXIAL |
4,623 |
|
数据手册 |
ES, CGS | Tape & Reel (TR) | Obsolete | 100 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | - | 2 | - |
|
|
ES6W1K0JRES 1K OHM 5% 6W AXIAL |
1,683 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 1 kOhms | ±5% | 6W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.335" Dia x 0.984" L (8.50mm x 25.00mm) | - | 2 | - |
|
|
ES6W2R7JRES 2.7 OHM 5% 6W AXIAL |
1,548 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 2.7 Ohms | ±5% | 6W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.335" Dia x 0.984" L (8.50mm x 25.00mm) | - | 2 | - |
|
|
ES5WR10JRES 0.1 OHM 5% 5W AXIAL |
1,689 |
|
数据手册 |
ES, CGS | Tape & Box (TB) | Obsolete | 100 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±300ppm/°C | - | Axial | 0.256" Dia x 0.787" L (6.50mm x 20.00mm) | - | 2 | - |
