散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AER45-45-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,833 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.811" (20.60mm) | - | 2.00°C/W @ 200 LFM | 7.50°C/W | Aluminum Alloy | Black Anodized |
|
|
AER45-45-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,908 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.890" (22.61mm) | - | 1.90°C/W @ 200 LFM | 7.30°C/W | Aluminum Alloy | Black Anodized |
|
APR45-45-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,794 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.457" (11.60mm) | - | 2.73°C/W @ 200 LFM | 8.73°C/W | Aluminum Alloy | Black Anodized |
|
|
APR45-45-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,097 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.575" (14.60mm) | - | 2.48°C/W @ 200 LFM | 8.36°C/W | Aluminum Alloy | Black Anodized |
|
|
APR45-45-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,104 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.693" (17.60mm) | - | 2.27°C/W @ 200 LFM | 7.99°C/W | Aluminum Alloy | Black Anodized |
|

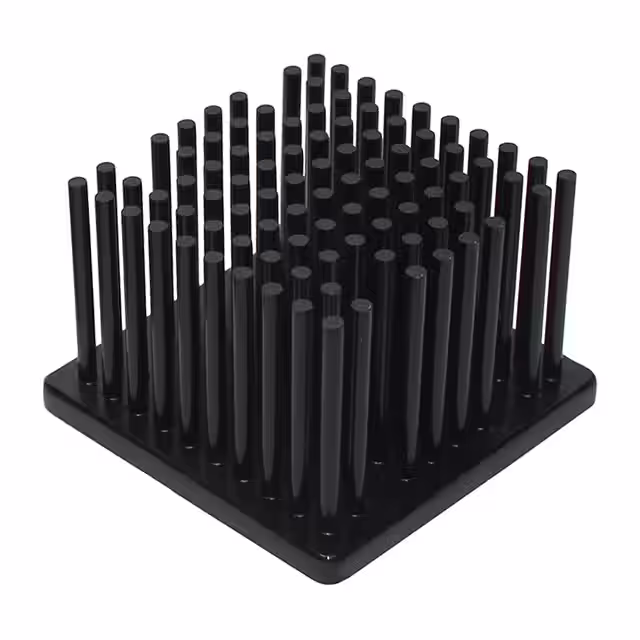

APR35-35-28CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,051 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.366" (34.70mm) | 1.366" (34.70mm) | - | 1.087" (27.60mm) | - | 2.06°C/W @ 200 LFM | 8.87°C/W | Aluminum Alloy | Black Anodized |
|
|
APR35-35-33CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,183 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.366" (34.70mm) | 1.366" (34.70mm) | - | 1.283" (32.60mm) | - | 1.90°C/W @ 200 LFM | 8.22°C/W | Aluminum Alloy | Black Anodized |
|

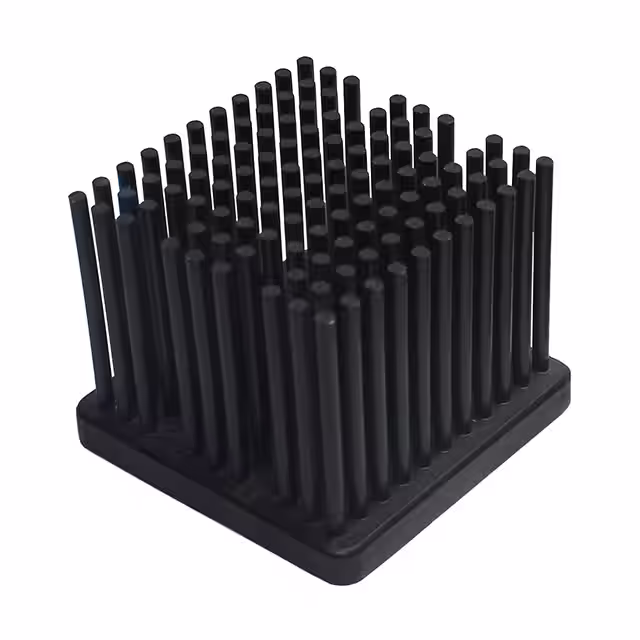

APR38-38-28CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,313 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 1.087" (27.60mm) | - | 2.00°C/W @ 200 LFM | 7.73°C/W | Aluminum Alloy | Black Anodized |
|
|
APR38-38-33CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,510 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 1.283" (32.60mm) | - | 1.80°C/W @ 200 LFM | 7.13°C/W | Aluminum Alloy | Black Anodized |
|
APR40-40-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,085 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.811" (20.60mm) | - | 2.30°C/W @ 200 LFM | 8.43°C/W | Aluminum Alloy | Black Anodized |
