散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

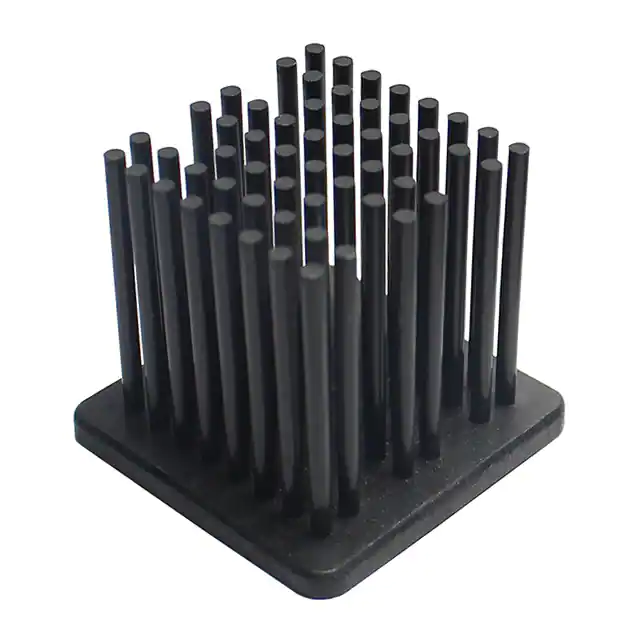

APR31-31-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,436 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.205" (30.61mm) | 1.205" (30.61mm) | - | 0.693" (17.60mm) | - | 3.26°C/W @ 200 LFM | 11.47°C/W | Aluminum Alloy | Black Anodized |
|
AER40-40-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,385 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.457" (11.60mm) | - | 3.02°C/W @ 200 LFM | 10.01°C/W | Aluminum Alloy | Black Anodized |
|
|
AER40-40-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,065 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.575" (14.60mm) | - | 2.72°C/W @ 200 LFM | 9.51°C/W | Aluminum Alloy | Black Anodized |
|
|
AER40-40-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,170 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.559" (39.60mm) | 1.559" (39.60mm) | - | 0.693" (17.60mm) | - | 2.42°C/W @ 200 LFM | 9.01°C/W | Aluminum Alloy | Black Anodized |
|
AER43-43-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,718 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.457" (11.60mm) | - | 2.82°C/W @ 200 LFM | 9.57°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,146 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.575" (14.60mm) | - | 2.52°C/W @ 200 LFM | 9.07°C/W | Aluminum Alloy | Black Anodized |
|
|
AER43-43-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,577 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.657" (42.10mm) | 1.657" (42.10mm) | - | 0.693" (17.60mm) | - | 2.32°C/W @ 200 LFM | 8.57°C/W | Aluminum Alloy | Black Anodized |
|

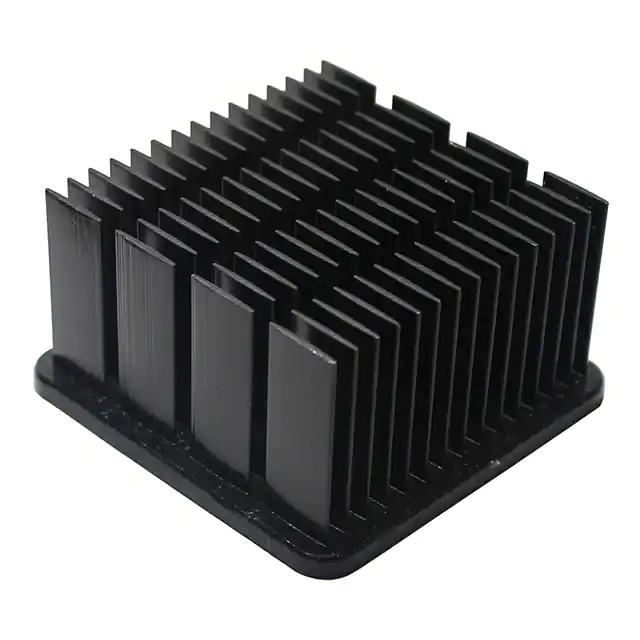

AER45-45-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,539 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.457" (11.60mm) | - | 2.70°C/W @ 200 LFM | 8.70°C/W | Aluminum Alloy | Black Anodized |
|
|
AER45-45-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,422 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.575" (14.60mm) | - | 2.40°C/W @ 200 LFM | 8.20°C/W | Aluminum Alloy | Black Anodized |
|
|
AER45-45-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,495 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.756" (44.60mm) | 1.756" (44.60mm) | - | 0.693" (17.60mm) | - | 2.20°C/W @ 200 LFM | 7.80°C/W | Aluminum Alloy | Black Anodized |
