散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AER29-29-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,009 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 0.575" (14.60mm) | - | 3.82°C/W @ 200 LFM | 12.08°C/W | Aluminum Alloy | Black Anodized |
|
|
AER29-29-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,531 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 0.693" (17.60mm) | - | 3.62°C/W @ 200 LFM | 11.48°C/W | Aluminum Alloy | Black Anodized |
|
APR23-23-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,073 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.890" (22.61mm) | 0.890" (22.61mm) | - | 0.890" (22.61mm) | - | 4.62°C/W @ 200 LFM | 12.81°C/W | Aluminum Alloy | Black Anodized |
|
AER33-33-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,585 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.283" (32.60mm) | 1.283" (32.60mm) | - | 0.811" (20.60mm) | - | 2.52°C/W @ 200 LFM | 10.25°C/W | Aluminum Alloy | Black Anodized |
|
|
AER33-33-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,005 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.283" (32.60mm) | 1.283" (32.60mm) | - | 0.890" (22.61mm) | - | 2.42°C/W @ 200 LFM | 9.95°C/W | Aluminum Alloy | Black Anodized |
|
AER35-35-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,053 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 0.811" (20.60mm) | - | 2.62°C/W @ 200 LFM | 9.60°C/W | Aluminum Alloy | Black Anodized |
|
|
AER35-35-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,518 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 0.890" (22.61mm) | - | 2.42°C/W @ 200 LFM | 9.30°C/W | Aluminum Alloy | Black Anodized |
|

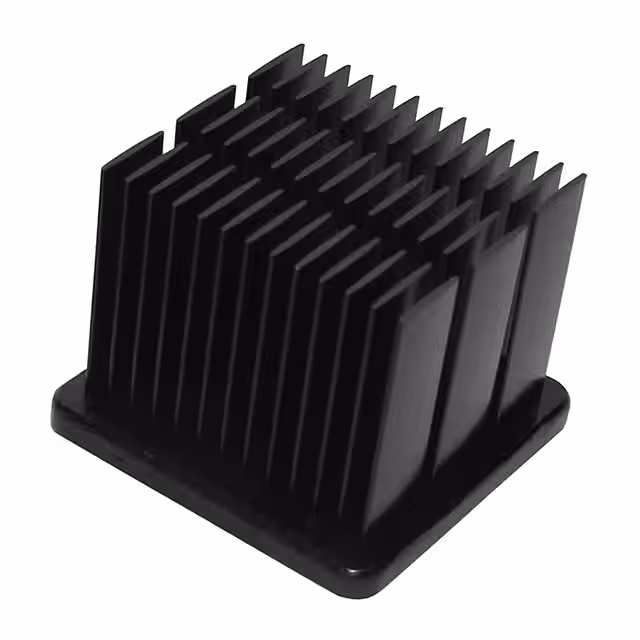

AER38-38-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,434 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.461" (37.10mm) | 1.461" (37.10mm) | - | 0.811" (20.60mm) | - | 2.32°C/W @ 200 LFM | 9.15°C/W | Aluminum Alloy | Black Anodized |
|
|
AER38-38-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,415 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.461" (37.10mm) | 1.461" (37.10mm) | - | 0.890" (22.61mm) | - | 2.12°C/W @ 200 LFM | 8.85°C/W | Aluminum Alloy | Black Anodized |
|
|
APR23-23-28CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,680 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.890" (22.61mm) | 0.890" (22.61mm) | - | 1.087" (27.60mm) | - | 4.26°C/W @ 200 LFM | 11.88°C/W | Aluminum Alloy | Black Anodized |
