散热器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AER23-23-33CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,134 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.890" (22.61mm) | 0.890" (22.61mm) | - | 1.283" (32.60mm) | - | 2.82°C/W @ 200 LFM | 10.82°C/W | Aluminum Alloy | Black Anodized |
|
AER25-25-28CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,712 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 1.087" (27.60mm) | - | 2.92°C/W @ 200 LFM | 10.58°C/W | Aluminum Alloy | Black Anodized |
|
|
AER25-25-33CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,802 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.969" (24.61mm) | 0.969" (24.61mm) | - | 1.283" (32.60mm) | - | 2.62°C/W @ 200 LFM | 9.68°C/W | Aluminum Alloy | Black Anodized |
|
APR23-23-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
2,299 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.890" (22.61mm) | 0.890" (22.61mm) | - | 0.811" (20.60mm) | - | 4.94°C/W @ 200 LFM | 13.20°C/W | Aluminum Alloy | Black Anodized |
|
APR27-27-21CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
3,969 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.811" (20.60mm) | - | 3.98°C/W @ 200 LFM | 12.05°C/W | Aluminum Alloy | Black Anodized |
|
|
APR27-27-23CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,279 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.047" (26.60mm) | 1.047" (26.60mm) | - | 0.890" (22.61mm) | - | 3.66°C/W @ 200 LFM | 11.63°C/W | Aluminum Alloy | Black Anodized |
|

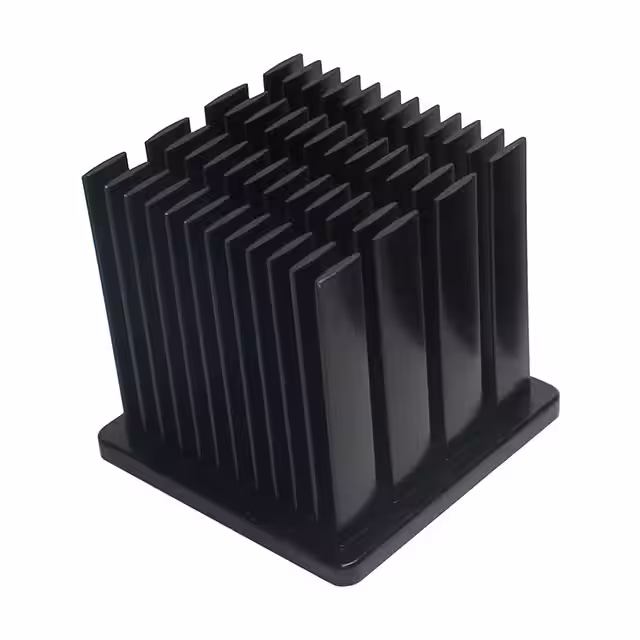

AER35-35-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,321 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 0.457" (11.60mm) | - | 3.32°C/W @ 200 LFM | 11.00°C/W | Aluminum Alloy | Black Anodized |
|
|
AER35-35-15CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,281 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 0.575" (14.60mm) | - | 3.02°C/W @ 200 LFM | 10.50°C/W | Aluminum Alloy | Black Anodized |
|
|
AER35-35-18CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
4,444 |
|
数据手册 |
AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 1.362" (34.60mm) | 1.362" (34.60mm) | - | 0.693" (17.60mm) | - | 2.82°C/W @ 200 LFM | 10.00°C/W | Aluminum Alloy | Black Anodized |
|
APR29-29-12CB/A01HEATSINK FORGED BLK ANO TOP MNT CTS Thermal Management Products |
1,919 |
|
数据手册 |
APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.126" (28.60mm) | 1.126" (28.60mm) | - | 0.457" (11.60mm) | - | 4.25°C/W @ 200 LFM | 12.58°C/W | Aluminum Alloy | Black Anodized |
