测试探针尖端
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 尖头 - 类型 | 连接类型 | 尖端长度 | 长度 - 总体 | 颜色 | 电压额定值 | 额定值 | 数量 | 电流额定值（安培） | 材质 - 本体 | 尖端材料 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

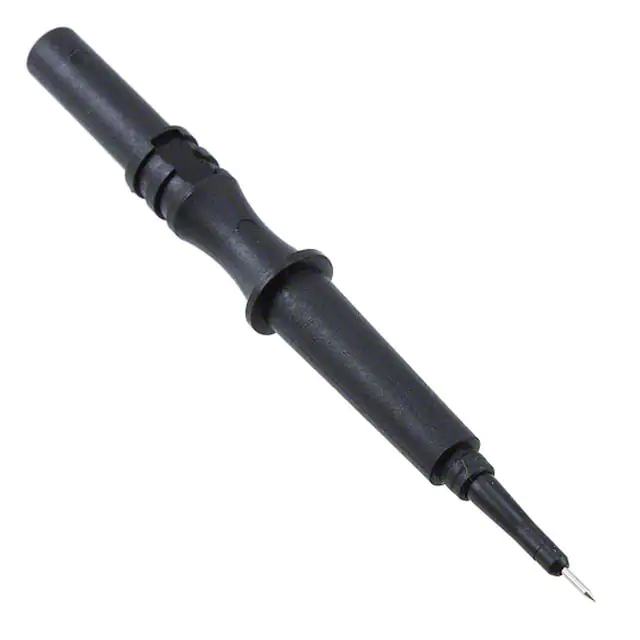

72923-0SMD TEST PROBE SPRING MNTDED TIP Pomona Electronics |
3,210 |
|
数据手册 |
72923 | Bag | Active | Sharp Tip, Spring Mounted, 0.030" (0.76mm) Dia | Banana, Female Socket (Jack), Mini | 0.177" (4.50mm) | 3.350" (85.00mm) | Black | - | CAT III 600V | 1 Piece | 1 A | Polypropylene | Steel | -4 ~ 176°F (-20 ~ 80°C) |
|
6212TIP QUAD-PNT GLD .04" DMM Pomona Electronics |
2,263 |
|
数据手册 |
6212 | Bulk | Active | Quad Point Piston Pin Tip, Spring Mounted, 0.040" (1.02mm) Dia | 0.040" (1.02mm) Test Probe Tips | - | - | - | - | - | 1 Piece | 3 A | - | Beryllium Copper, Gold Plated | - |
|

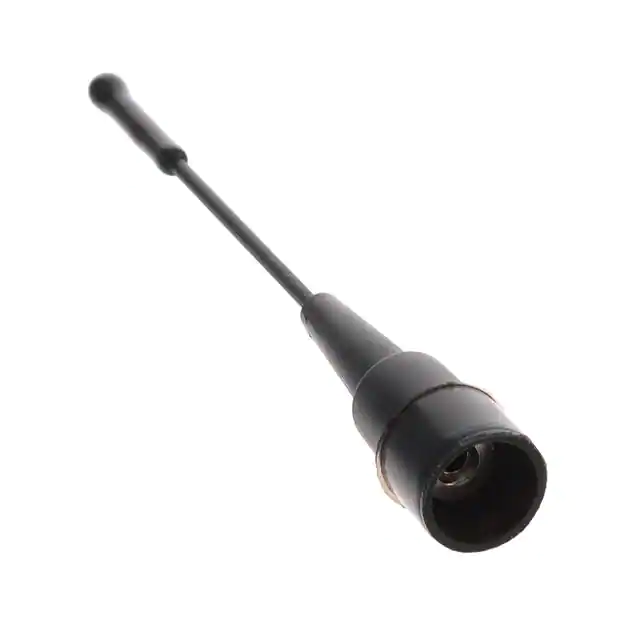

5682-0ADAPTER EXTENDED TIP BLACK Pomona Electronics |
4,513 |
|
数据手册 |
5682 | Bulk | Active | Standard Tip, 0.080" (2.03mm) Dia | 5548A Style Probes | 2.000" (50.80mm) | 3.270" (83.06mm) | Black | 300VRMS/DC | - | 1 Piece | 3 A | Nylon | Steel, Stainless | 122°F (50°C) |
|
|
5432-0MINIATURE TEST PROBE BLACK Pomona Electronics |
2,794 |
|
数据手册 |
Do-It-Yourself | Bulk | Active | Standard Tip, 0.080" (2.03mm) Dia | 18-22 AWG Test Lead | 0.500" (12.70mm) | 4.920" (124.97mm) | Black | 1500VAC/DC | - | 1 Piece | 10 A | Nylon | Brass, Nickel Plated | 176°F (80°C) |
|
|
5906A#TEST PROBE SET Pomona Electronics |
1,605 |
|
数据手册 |
5906A | Bulk | Active | Lantern Tip, 0.157" (4.00mm) Dia | Banana, Female Socket (Jack) | 0.728" (18.49mm) | 4.810" (122.17mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Brass, Nickel Plated | - |
|
|
6479#TEST PROBE SET .080 ST.STL TIP P Pomona Electronics |
2,181 |
|
数据手册 |
6479 | Bulk | Active | Sharp Tip, 0.080" (2.03mm) Dia | Banana, Female Socket (Jack) | 0.630" (16.00mm) | 4.540" (115.50mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Steel, Stainless | - |
|
|
6213TIP SHARP STAIN-STEEL .04" DMM Pomona Electronics |
3,858 |
|
数据手册 |
6213 | - | Obsolete | Sharp Tip, 0.040" (1.02mm) Dia | 0.040" (1.02mm) Test Probe Tips | - | - | - | - | - | 1 Piece | 3 A | - | Steel, Stainless | - |
|
|
6479SET PROBE TEST STAIN-STEEL TIPS Pomona Electronics |
4,263 |
|
数据手册 |
6479 | Bulk | Active | Sharp Tip, 0.080" (2.03mm) Dia | Banana, Female Socket (Jack) | 0.630" (16.00mm) | 4.540" (115.50mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Steel, Stainless | - |
|
4988REPLACE PROBE TIP NEEDLE POINT Pomona Electronics |
1,360 |
|
数据手册 |
4988 | - | Obsolete | Very Fine Tip, 0.028" (0.71mm) Dia | 0.080" (2.00mm) Probe Tips | 0.200" (5.08mm) | 0.600" (15.24mm) | - | - | - | 1 Piece | 10 A | - | Steel, Stainless | - |
|
|
5246-0IC TEST TIP ADAPTER BLACK Pomona Electronics |
1,258 |
|
数据手册 |
5246 | - | Obsolete | - | - | - | 1.250" (31.75mm) | Black | 300VRMS/DC | - | 1 Piece | 3 A | Nylon | Steel, Stainless | 176°F (80°C) |
