测试探针尖端
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 尖头 - 类型 | 连接类型 | 尖端长度 | 长度 - 总体 | 颜色 | 电压额定值 | 额定值 | 数量 | 电流额定值（安培） | 材质 - 本体 | 尖端材料 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5133PROBE TIP .080 MICROTIP SS Pomona Electronics |
127 |
|
数据手册 |
Microtip™ 5133 | Bulk | Active | Sharp Tip, 0.040" (1.02mm) Dia | 0.080" (2.00mm) Probe Tips | 0.920" (23.37mm) | 1.261" (32.03mm) | - | 600VRMS | - | 1 Piece | 5 A | - | Steel, Stainless | - |
|
6411BACK PROBE PIN Pomona Electronics |
149 |
|
数据手册 |
6411 | Bulk | Active | Back Probe Pin, 0.064" (1.63mm) Dia | Banana, Female Socket (Jack) | 0.125" (3.18mm) | 3.250" (82.55mm) | Yellow | 33VRMS | - | 1 Piece | 3 A | Polypropylene | Beryllium Copper, Gold Plated | - |
|
5432-2MINIATURE TEST PROBE RED Pomona Electronics |
595 |
|
数据手册 |
Do-It-Yourself | Bulk | Active | Standard Tip, 0.080" (2.03mm) Dia | 18-22 AWG Test Lead | 0.500" (12.70mm) | 4.920" (124.97mm) | Red | 1500VAC/DC | - | 1 Piece | 10 A | Nylon | Brass, Nickel Plated | 176°F (80°C) |
|
|
6354KIT REPLACE TIPS FOR .040" PROBE Pomona Electronics |
100 |
|
数据手册 |
6354 | Bulk | Active | Set - Quad Point, Sharp Tips, Triple Point, 0.040" (1.02mm) Dia | 0.040" (1.02mm) Test Probe Tips | - | - | - | 1000V | CAT II 1000V | 10 Pieces | 3 A | - | Beryllium Copper, Stainless Steel | - |
|

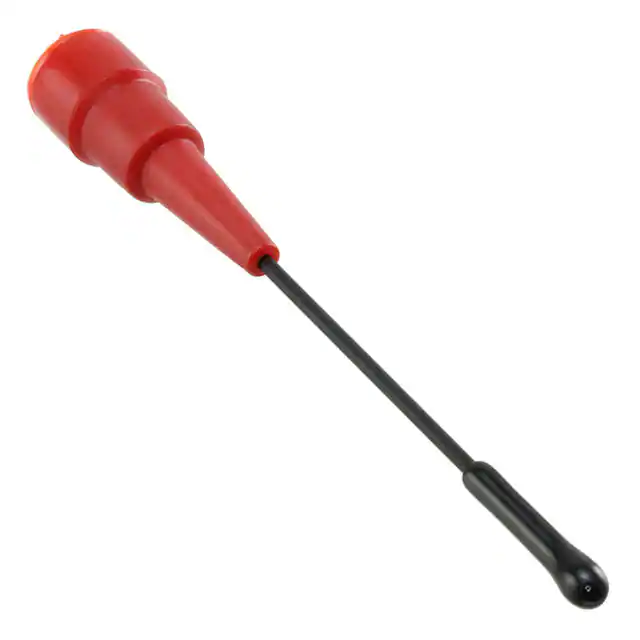

5682-2ADAPTER EXTENDED TIP RED Pomona Electronics |
2,108 |
|
数据手册 |
5682 | Bulk | Active | Standard Tip, 0.080" (2.03mm) Dia | 5548A Style Probes | 2.000" (50.80mm) | 3.270" (83.06mm) | Red | 300VRMS/DC | - | 1 Piece | 3 A | Nylon | Steel, Stainless | 122°F (50°C) |
|

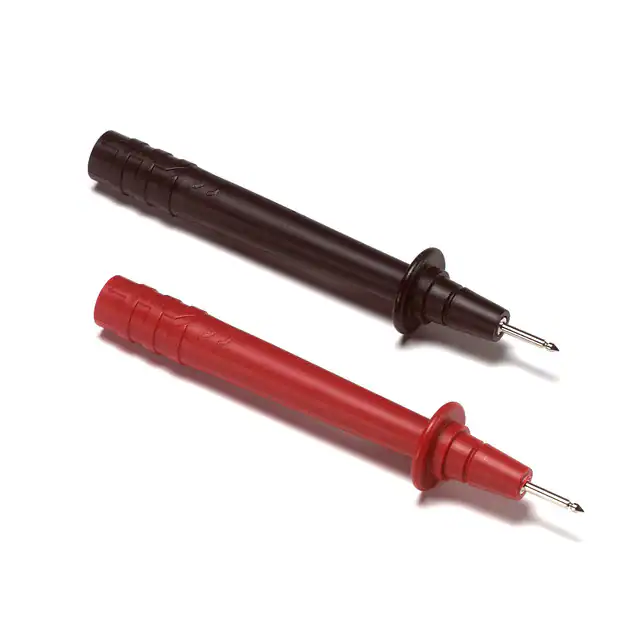

6232ASET TEST PROBE .08 BRASS TIP 2PC Pomona Electronics |
1,869 |
|
数据手册 |
6232 | Bulk | Active | Notched Tip, 0.080" (2.03mm) Dia | Banana, Female Socket (Jack) | - | 4.550" (115.57mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Brass, Nickel Plated | - |
|

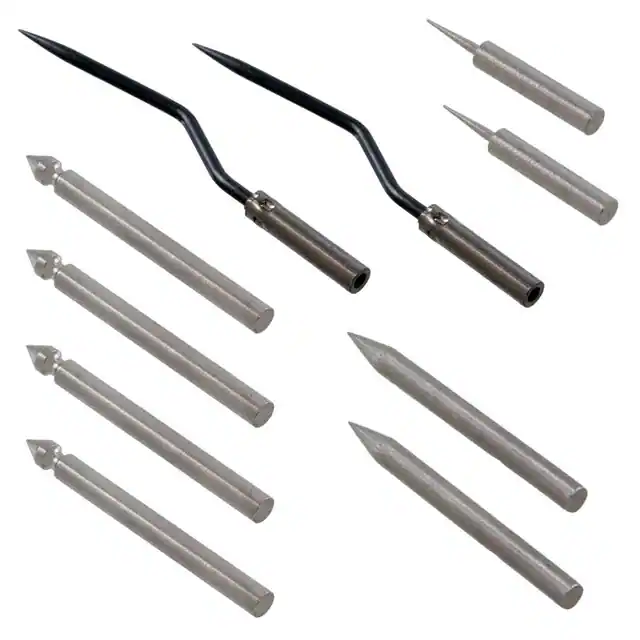

6364REPLACEMENT TIPS 080 SERIES 10PC Pomona Electronics |
4,378 |
|
数据手册 |
6364 | Bulk | Active | Set - Needle Tip, Sharp Tips | 0.080" (2.00mm) Probe Tips | - | - | - | - | - | 10 Pieces | 10 A | - | Brass, Stainless Steel | - |
|

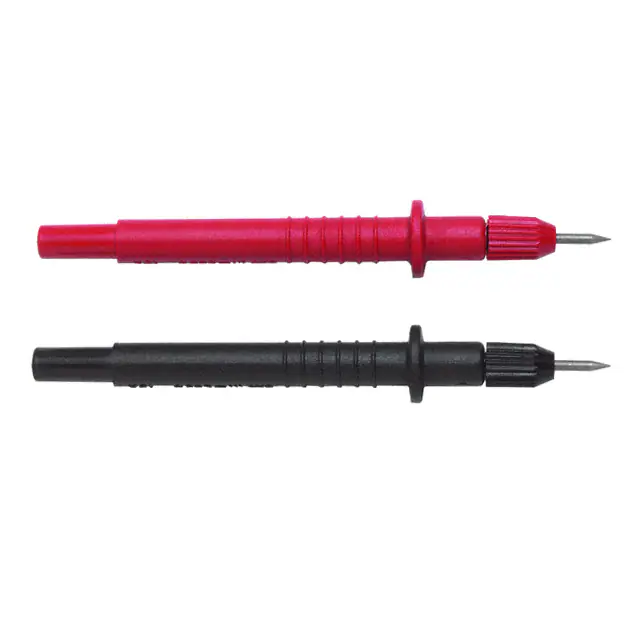

5689APROBE REPLACE TIP W/BANA JACK Pomona Electronics |
2,219 |
|
数据手册 |
5689 | Bulk | Active | Sharp Tip | Banana, Female Socket (Jack) | 0.510" (12.95mm) | 4.370" (111.00mm) | Black and Red | 600V | CAT III 600V | 2 Pieces | 10 A | Nylon | Steel, Stainless | - |
|

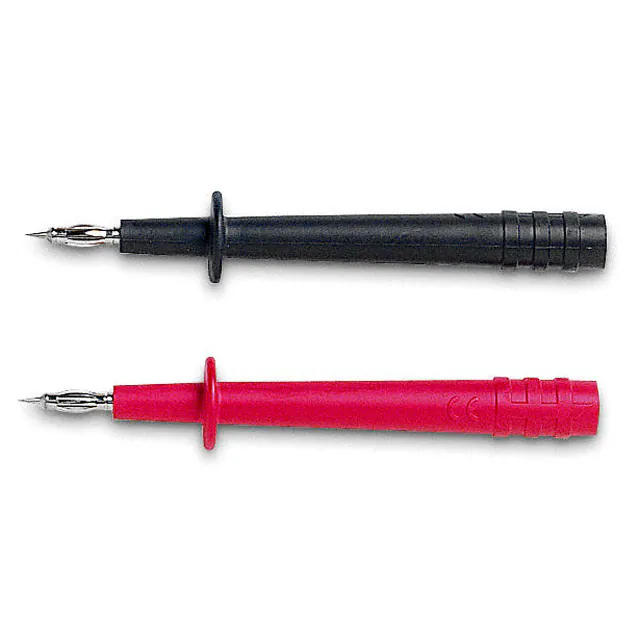

5906ATEST PROBE LENTERN TIP SET Pomona Electronics |
2,976 |
|
数据手册 |
5906A | Bulk | Active | Lantern Tip, 0.157" (4.00mm) Dia | Banana, Female Socket (Jack) | 0.728" (18.49mm) | 4.810" (122.17mm) | Black and Red | - | CAT III 1000V | 1 Pair | 10 A | Polypropylene | Brass, Nickel Plated | - |
|

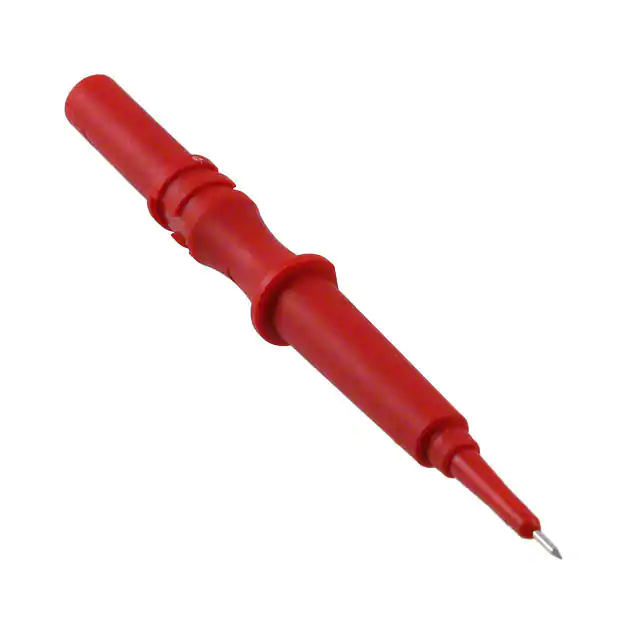

72923-2SMD TEST PROBE SPRING MNTDED TIP Pomona Electronics |
1,229 |
|
数据手册 |
72923 | Bag | Active | Sharp Tip, Spring Mounted, 0.030" (0.76mm) Dia | Banana, Female Socket (Jack), Mini | 0.177" (4.50mm) | 3.350" (85.00mm) | Red | - | CAT III 600V | 1 Piece | 1 A | Polypropylene | Steel | -4 ~ 176°F (-20 ~ 80°C) |
