测试点
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 安装类型 | 颜色 | 孔直径 | 尺寸 / 尺寸 | 高度 | 电镀 | 材料 - 绝缘 | 材质 - 本体 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6048PC TEST POINT JACK WHITE |
3,029 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | White | - | 0.208" L x 0.156" W (5.28mm x 3.96mm) | 0.203" (5.16mm) | Silver | Polyamide (PA), Nylon | Beryllium Copper |
|
105-0860-001PC TEST POINT JACK BLUE |
595 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole | Blue | 0.052" (1.32mm) | 0.188" Dia x 0.312" L (4.78mm x 7.92mm) | - | Silver | Polyamide (PA66), Nylon 6/6 | Beryllium Copper |
|
105-0854-001PC TEST POINT JACK GREEN |
425 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole | Green | 0.052" (1.32mm) | 0.188" Dia x 0.312" L (4.78mm x 7.92mm) | - | Silver | Polyamide (PA66), Nylon 6/6 | Beryllium Copper |
|

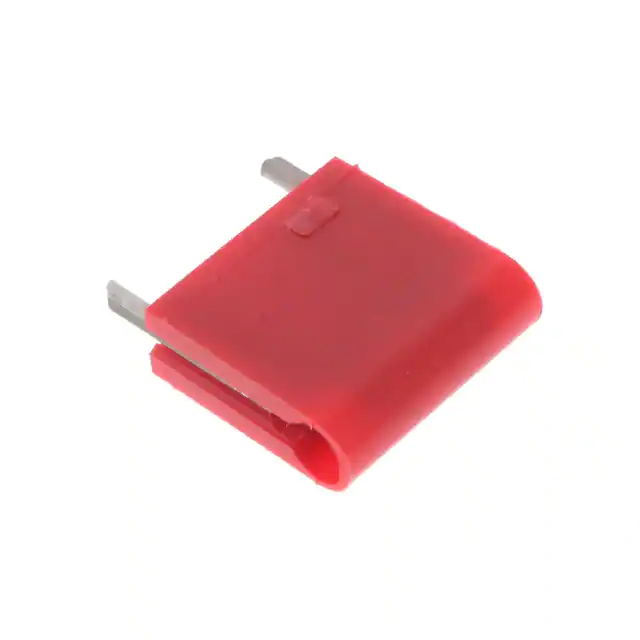

1-521800-2PC TEST POINT JACK RED |
1,844 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | - | - | Tin | Polyamide (PA66), Nylon 6/6 | Beryllium Copper |
|
6060PC TEST POINT JACK WHITE |
3,337 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | White | - | 0.460" L x 0.156" W (11.68mm x 3.96mm) | 0.220" (5.59mm) | Gold | Polyamide (PA), Nylon | Beryllium Copper |
|

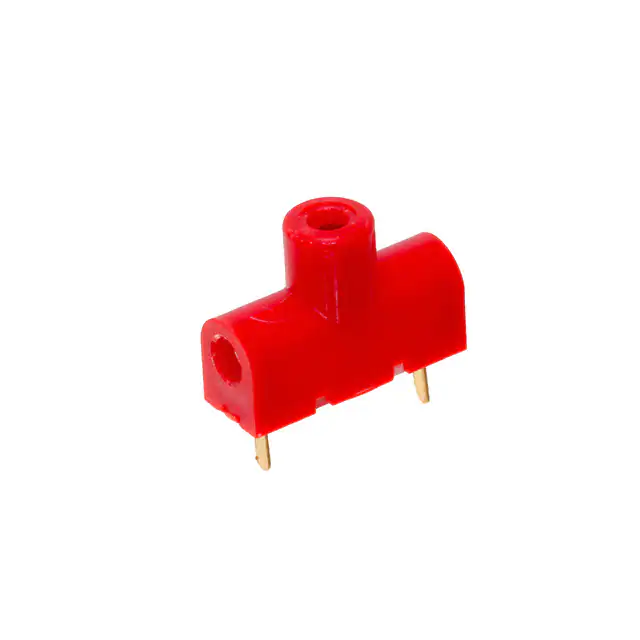

0040.1022PC TEST POINT JACK RED |
664 |
|
数据手册 |
PB | Bulk | Active | PC Test Point Jack | Through Hole | Red | 0.051" (1.30mm) | 0.531" L x 0.189" W (13.50mm x 4.80mm) | 0.394" (10.00mm) | Gold | Polycarbonate (PC) | - |
|

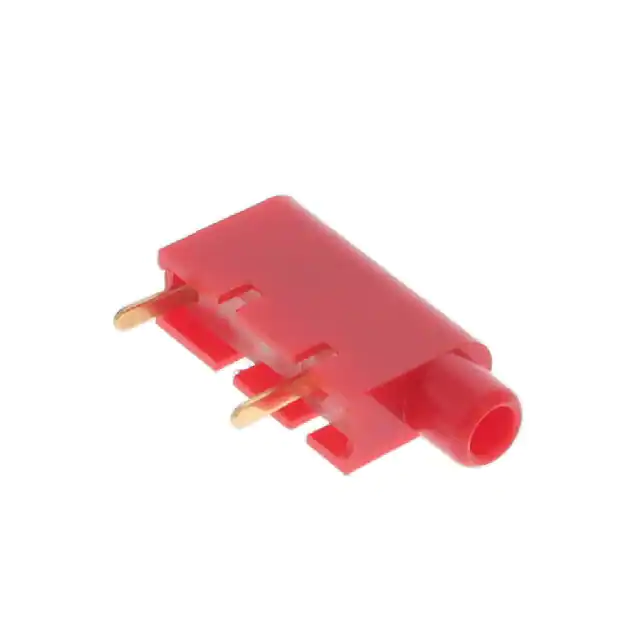

0040.1112PC TEST POINT JACK RED |
143 |
|
数据手册 |
PB | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | 0.051" (1.30mm) | 0.630" L x 0.157" W (16.00mm x 4.00mm) | 0.315" (8.00mm) | Gold | Polycarbonate (PC) | - |
|
|
11009PC TEST POINT JACK WHITE |
235 |
|
数据手册 |
11009 | Bulk | Active | PC Test Point Jack | Panel Mount | White | - | 0.218" Dia (5.54mm) | 0.450" (11.43mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11012-BPC TEST POINT JACK BLACK |
2,868 |
|
数据手册 |
11012 | Bulk | Active | PC Test Point Jack | Through Hole | Black | - | 0.218" Dia (5.54mm) | 0.500" (12.70mm) | Gold | Polytetrafluoroethylene (PTFE) | Brass |
|
11013-RPC TEST POINT JACK RED |
902 |
|
数据手册 |
11013 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.218" Dia x 0.689" L (5.54mm x 17.5mm) | 0.343" (8.72mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11016-BPC TEST POINT JACK BLACK |
762 |
|
数据手册 |
11016 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Black | - | - | - | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11012-RPC TEST POINT JACK RED |
727 |
|
数据手册 |
11012 | Bulk | Active | PC Test Point Jack | Through Hole | Red | - | 0.218" Dia (5.54mm) | 0.500" (12.70mm) | Gold | Polytetrafluoroethylene (PTFE) | Brass |
|
11016PC TEST POINT JACK WHITE |
397 |
|
数据手册 |
11016 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | White | - | - | - | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
|
11003PC TEST POINT JACK WHITE |
189 |
|
数据手册 |
11003 | Bulk | Active | PC Test Point Jack | Panel Mount | White | - | 0.172" Dia (4.37mm) | 0.193" (4.90mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11014-RPC TEST POINT JACK RED |
486 |
|
数据手册 |
11014 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.218" Dia x 0.378" L (5.54mm x 9.60mm) | 0.343" (8.72mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
129-0701-301PC TEST POINT JACK |
504 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | - | 0.041" (1.04mm) | 0.125" Dia (3.18mm) | - | Tin | TFE Fluorocarbon | Beryllium Copper |
|

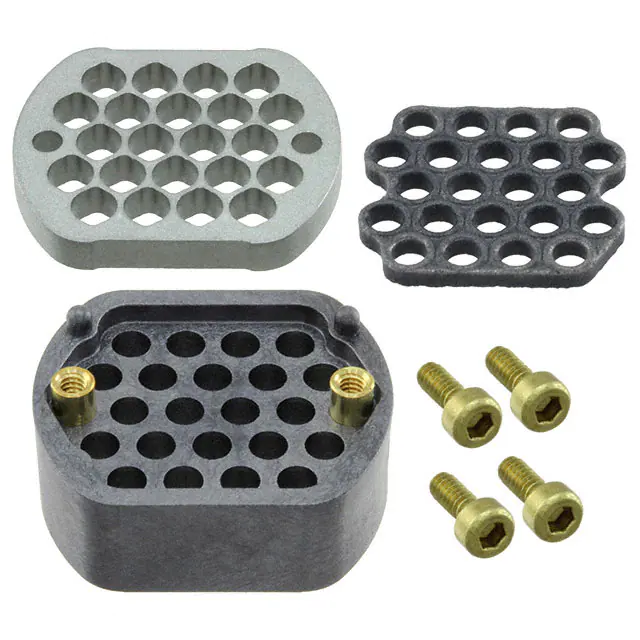

BAR-J-22PC TEST POINT 22POS BULLSEYE HDR |
484 |
|
数据手册 |
Bulls Eye® | Bulk | Active | PC Test Point | Threaded Stud | - | - | 0.835" L x 0.708" W (21.22mm x 17.99mm) | - | - | No Insulation | - |
|

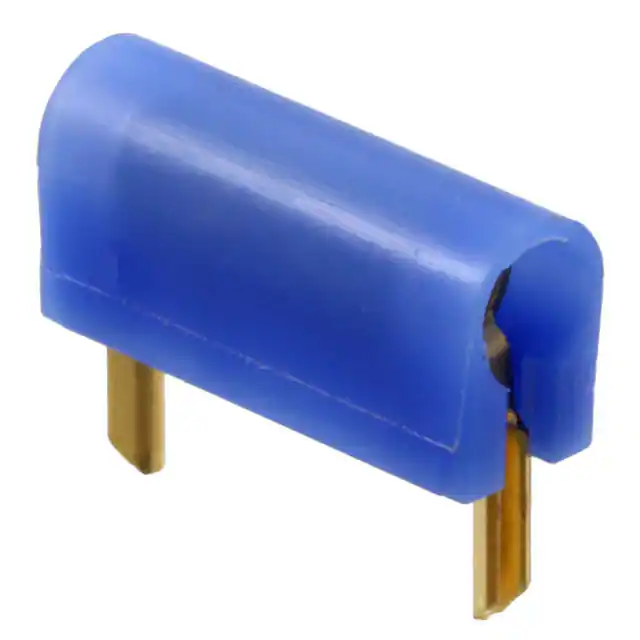

3-582118-6PC TEST POINT JACK BLUE |
1,134 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Blue | - | - | - | Gold | Polyamide (PA66), Nylon 6/6 | Brass |
|

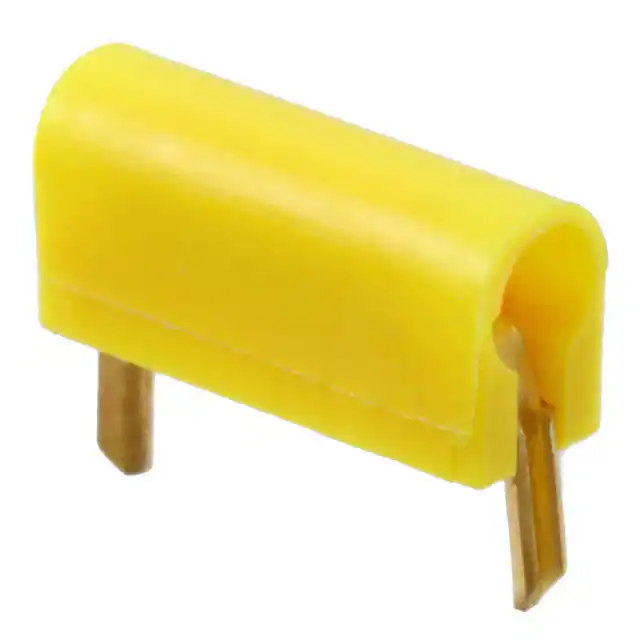

3-582118-4PC TEST POINT JACK YELLOW |
8,990 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Yellow | - | - | - | Gold | Polyamide (PA66), Nylon 6/6 | Brass |
|
11001-RPC TEST POINT JACK RED |
238 |
|
数据手册 |
11001 | Bulk | Active | PC Test Point Jack | Panel Mount | Red | - | 0.142" Dia (3.61mm) | 0.290" (7.37mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
