测试点
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 安装类型 | 颜色 | 孔直径 | 尺寸 / 尺寸 | 高度 | 电镀 | 材料 - 绝缘 | 材质 - 本体 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
105-0856-001PC TEST POINT JACK ORANGE |
6,469 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole | Orange | 0.052" (1.32mm) | 0.188" Dia x 0.312" L (4.78mm x 7.92mm) | - | Silver | Polyamide (PA66), Nylon 6/6 | Beryllium Copper |
|
6055PC TEST POINT JACK RED |
7,534 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.410" L x 0.156" W (10.41mm x 3.96mm) | 0.203" (5.16mm) | Silver | Polyamide (PA), Nylon | Beryllium Copper |
|
6054PC TEST POINT JACK WHITE |
895 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | White | - | 0.410" L x 0.156" W (10.41mm x 3.96mm) | 0.203" (5.16mm) | Silver | Polyamide (PA), Nylon | Beryllium Copper |
|
6049PC TEST POINT JACK RED |
4,267 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.208" L x 0.156" W (5.28mm x 3.96mm) | 0.203" (5.16mm) | Silver | Polyamide (PA), Nylon | Beryllium Copper |
|
6061PC TEST POINT JACK RED |
359 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | 0.460" L x 0.156" W (11.68mm x 3.96mm) | 0.220" (5.59mm) | Gold | Polyamide (PA), Nylon | Beryllium Copper |
|
0040.1101PC TEST POINT JACK BLACK |
1,373 |
|
数据手册 |
PB | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Black | 0.051" (1.30mm) | 0.591" L x 0.157" W (15.00mm x 4.00mm) | 0.256" (6.50mm) | Gold | Polycarbonate (PC) | - |
|
0040.1102PC TEST POINT JACK RED |
502 |
|
数据手册 |
PB | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | 0.051" (1.30mm) | 0.591" L x 0.157" W (15.00mm x 4.00mm) | 0.256" (6.50mm) | Gold | Polycarbonate (PC) | - |
|

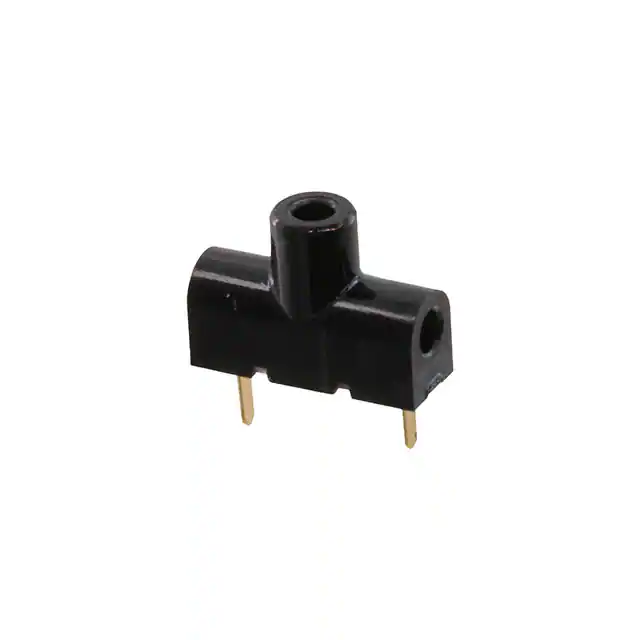

0040.1021PC TEST POINT JACK BLACK |
7,290 |
|
数据手册 |
PB | Bulk | Active | PC Test Point Jack | Through Hole | Black | 0.051" (1.30mm) | 0.531" L x 0.189" W (13.50mm x 4.80mm) | 0.394" (10.00mm) | Gold | Polycarbonate (PC) | - |
|

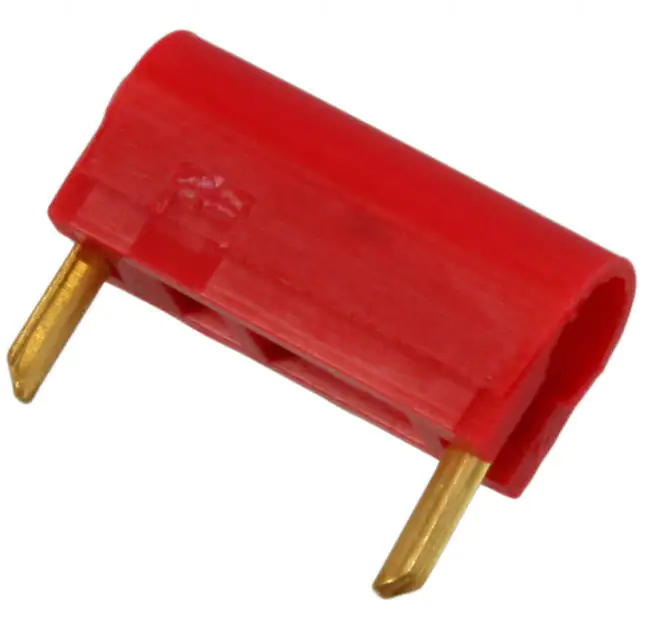

3-582118-2PC TEST POINT JACK RED |
3,712 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Red | - | - | - | Gold | Polyamide (PA66), Nylon 6/6 | Brass |
|
11013-BPC TEST POINT JACK BLACK |
939 |
|
数据手册 |
11013 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | Black | - | 0.218" Dia x 0.689" L (5.54mm x 17.5mm) | 0.343" (8.72mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11011-RPC TEST POINT JACK RED |
384 |
|
数据手册 |
11011 | Bulk | Active | PC Test Point Jack | Through Hole | Red | - | 0.218" Dia (5.54mm) | 0.430" (10.92mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11013PC TEST POINT JACK WHITE |
197 |
|
数据手册 |
11013 | Bulk | Active | PC Test Point Jack | Through Hole, Right Angle | White | - | 0.218" Dia x 0.689" L (5.54mm x 17.5mm) | 0.343" (8.72mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
11011-BPC TEST POINT JACK BLACK |
194 |
|
数据手册 |
11011 | Bulk | Active | PC Test Point Jack | Through Hole | Black | - | 0.218" Dia (5.54mm) | 0.430" (10.92mm) | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper |
|
4955PC TEST POINT LOOP |
1,441 |
|
数据手册 |
- | Bulk | Active | PC Test Point, Loop | Through Hole | - | 0.053" (1.35mm) | 0.169" L x 0.118" W (4.29mm x 3.00mm) | - | Tin | No Insulation | Brass |
|
1034PC TEST POINT SLOTTED |
2,601 |
|
数据手册 |
- | Bulk | Active | PC Test Point, Slotted | Through Hole | - | 0.043" (1.09mm) | 0.218" L x 0.100" W (5.54mm x 2.54mm) | - | Tin | No Insulation | Brass |
|
5268PC TEST POINT MINIATURE GRAY |
8,583 |
|
数据手册 |
- | Bulk | Active | PC Test Point, Miniature | Through Hole | Gray | 0.042" (1.06mm) | 0.100" Dia x 0.300" L (2.54mm x 7.62mm) | 0.180" (4.57mm) | Tin | Nylon 46, UL 94V-0 | Phosphor Bronze |
|
5265PC TEST POINT MINIATURE BROWN |
2,634 |
|
数据手册 |
- | Bulk | Active | PC Test Point, Miniature | Through Hole | Brown | 0.042" (1.06mm) | 0.100" Dia x 0.300" L (2.54mm x 7.62mm) | 0.180" (4.57mm) | Tin | Nylon 46, UL 94V-0 | Phosphor Bronze |
|
5288PC TEST POINT MULTIPURPOSE GRAY |
1,121 |
|
数据手册 |
- | Bulk | Active | PC Test Point, Multipurpose | Through Hole | Gray | 0.063" (1.60mm) | 0.125" Dia x 0.445" L (3.18mm x 11.30mm) | 0.320" (8.13mm) | Tin | Nylon 46, UL 94V-0 | Phosphor Bronze |
|
105-2204-201PC TEST POINT JACK GREEN |
186 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole | Green | 0.052" (1.32mm) | 0.188" Dia x 0.312" L (4.78mm x 7.92mm) | - | Silver | Polyamide (PA66), Nylon 6/6 | Beryllium Copper |
|
6040PC TEST POINT JACK GREEN |
572 |
|
数据手册 |
- | Bulk | Active | PC Test Point Jack | Through Hole | Green | - | 0.187" Dia x 0.312" L (4.75mm x 7.92mm) | - | Silver | Polyamide (PA66), Nylon 6/6 | Brass |
