机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20B145053600060THERMOSTAT 145DEG C SPST-NO 2SIP |
2,865 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 293°F (145°C) | 240°F (115°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B150053600060THERMOSTAT 150DEG C SPST-NO 2SIP |
4,718 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 302°F (150°C) | 248°F (120°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
B12B06005AEDA0GETHERMOSTAT 60DEG C SPST-NO RAD |
1,993 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 140°F (60°C) | 86°F (30°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B07505AEDA0GETHERMOSTAT 75DEG C SPST-NO RAD |
2,815 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B08505AEDA0GETHERMOSTAT 85DEG C SPST-NO RAD |
3,093 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 185°F (85°C) | 131°F (55°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B09005AEDA0GETHERMOSTAT 90DEG C SPST-NO RAD |
2,021 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 194°F (90°C) | 140°F (60°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B09505AEDA0GETHERMOSTAT 95DEG C SPST-NO RAD |
3,827 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 203°F (95°C) | 149°F (65°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

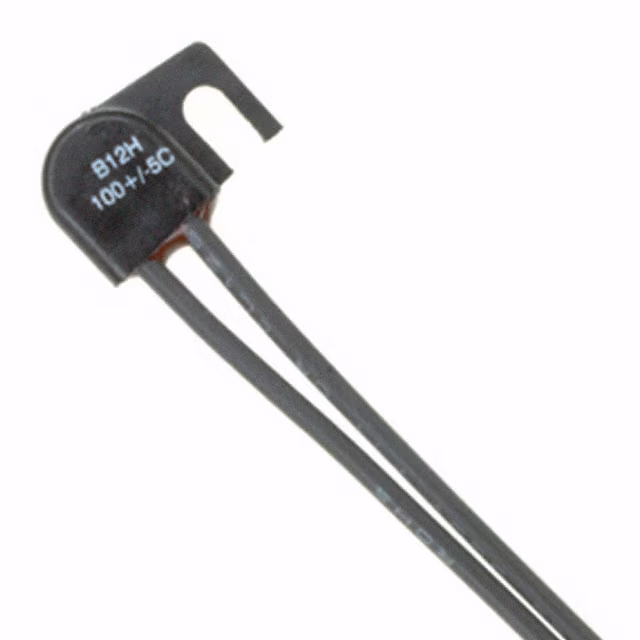

B12B10005AEDA0GETHERMOSTAT 100DEG C SPST-NO RAD |
4,072 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 212°F (100°C) | 158°F (70°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B10505AEDA0GETHERMOSTAT 105DEG C SPST-NO RAD |
3,881 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 221°F (105°C) | 167°F (75°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

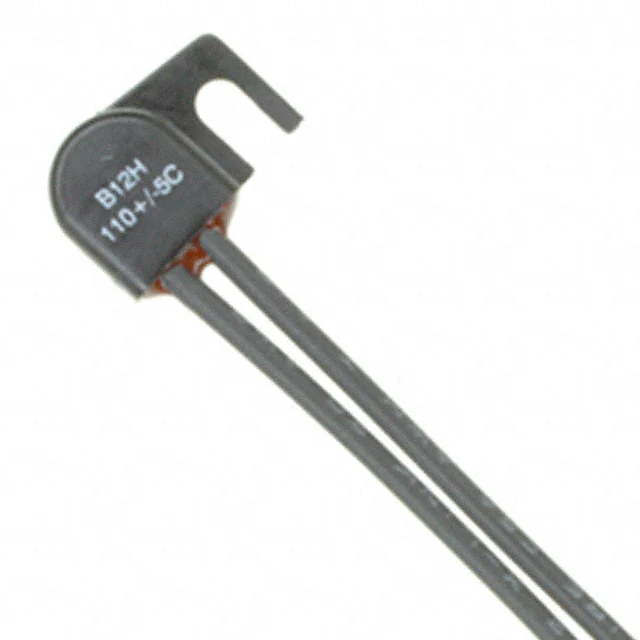

B12B11005AEDA0GETHERMOSTAT 110DEG C SPST-NO RAD |
2,189 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 230°F (110°C) | 176°F (80°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

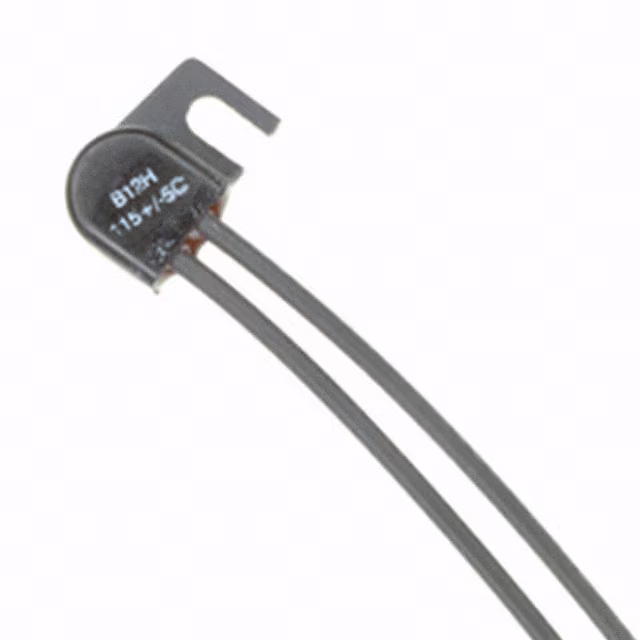

B12B11505AEDA0GETHERMOSTAT 115DEG C SPST-NO RAD |
2,301 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 240°F (115°C) | 185°F (85°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B12005AEDA0GETHERMOSTAT 120DEG C SPST-NO RAD |
3,937 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 248°F (120°C) | 194°F (90°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B12505AEDA0GETHERMOSTAT 125DEG C SPST-NO RAD |
3,786 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 257°F (125°C) | 203°F (95°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

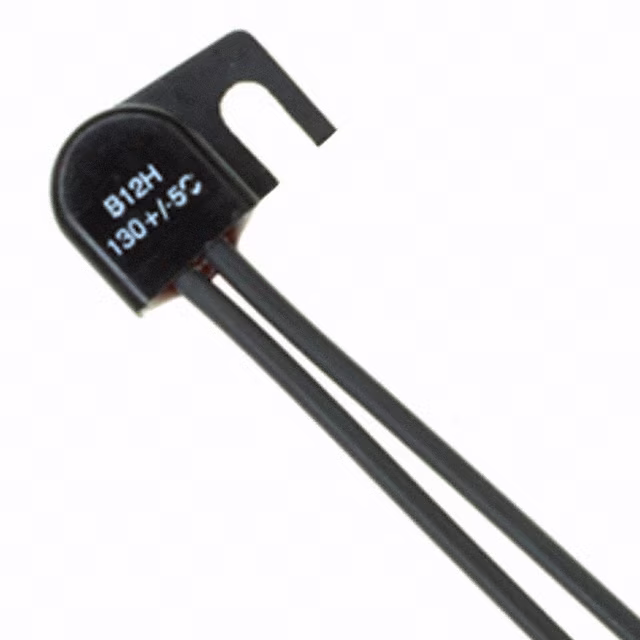

B12B13005AEDA0GETHERMOSTAT 130DEG C SPST-NO RAD |
2,120 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 266°F (130°C) | 212°F (100°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

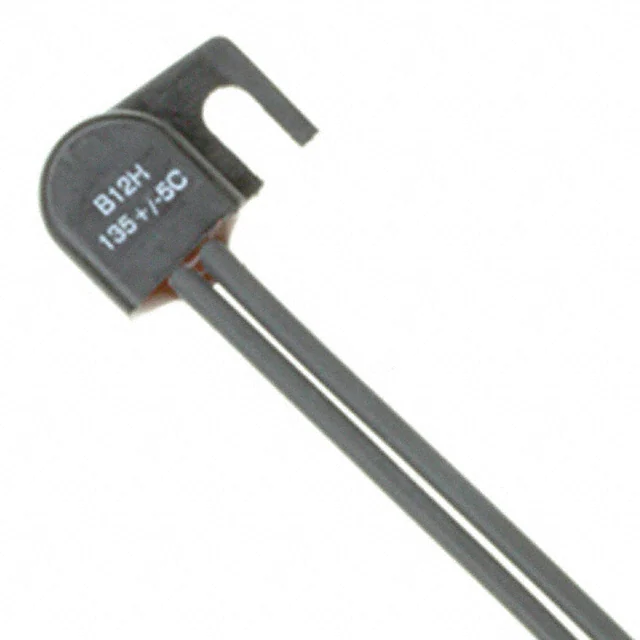

B12B13505AEDA0GETHERMOSTAT 135DEG C SPST-NO RAD |
2,239 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 275°F (135°C) | 221°F (105°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

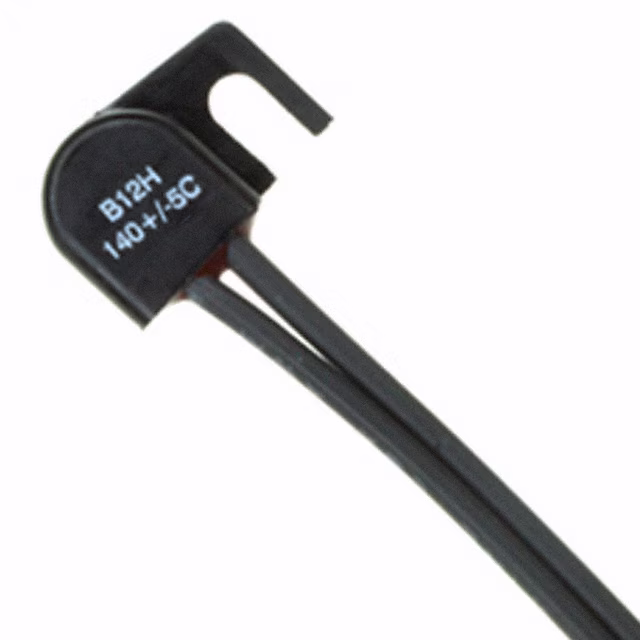

B12B14005AEDA0GETHERMOSTAT 140DEG C SPST-NO RAD |
3,839 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 284°F (140°C) | 230°F (110°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B14505AEDA0GETHERMOSTAT 145DEG C SPST-NO RAD |
3,475 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NO | 293°F (145°C) | 240°F (115°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12A15505AEDA0GETHERMOSTAT 155DEG C SPST-NC RAD |
4,861 |
|
数据手册 |
B12 | Radial | Bag | Active | SPST-NC | 311°F (155°C) | 257°F (125°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|
F20B075051ZA0060THERMOSTAT 75DEG C SPST-NO 2SIP |
4,879 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|

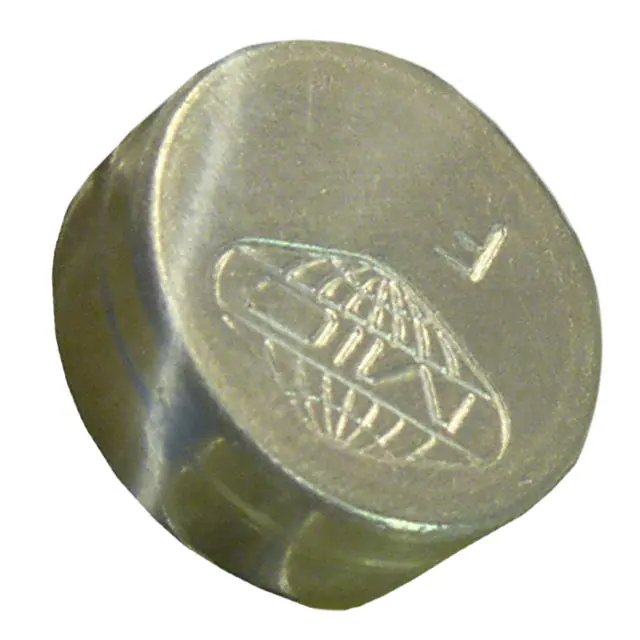

F1109045THERMOSTAT 90DEG C SPST-NC |
4,813 |
|
数据手册 |
F20 | - | Bulk | Active | SPST-NC | 194°F (90°C) | 140°F (60°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | - | Through Hole |
