机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F20B140051ZA0060THERMOSTAT 140DEG C SPST-NO 2SIP |
3,787 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 284°F (140°C) | 230°F (110°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
|
F20B150051ZA0060THERMOSTAT 150DEG C SPST-NO 2SIP |
4,938 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 302°F (150°C) | 248°F (120°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
|
F20B155051ZA0060THERMOSTAT 155DEG C SPST-NO 2SIP |
4,332 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 311°F (155°C) | 257°F (125°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
|
F20B160051ZA0060THERMOSTAT 160DEG C SPST-NO 2SIP |
1,846 |
|
数据手册 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NO | 320°F (160°C) | 266°F (130°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads | Through Hole |
|
F20A150053600060THERMOSTAT 150DEG C SPST-NC 2SIP |
3,234 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 302°F (150°C) | 248°F (120°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A155053600060THERMOSTAT 155DEG C SPST-NC 2SIP |
1,634 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 311°F (155°C) | 257°F (125°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A160053600060THERMOSTAT 160DEG C SPST-NC 2SIP |
1,470 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 320°F (160°C) | 266°F (130°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
F20A15505DCFB06ETHERMOSTAT 155DEG C SPST-NC WIRE |
1,445 |
|
数据手册 |
F20 | Housed Sensor | Bulk | Active | SPST-NC | 311°F (155°C) | 257°F (125°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 4" (101.6mm) | Through Hole |
|
|
B12B05005AEDA0GETHERMOSTAT 50DEG C SPST-NO RAD |
1,816 |
|
数据手册 |
B12 | Radial | Bag | Obsolete | SPST-NO | 122°F (50°C) | 68°F (20°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
|
B12B05505AEDA0GETHERMOSTAT 55DEG C SPST-NO RAD |
3,744 |
|
数据手册 |
B12 | Radial | Bag | Obsolete | SPST-NO | 131°F (55°C) | 77°F (25°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

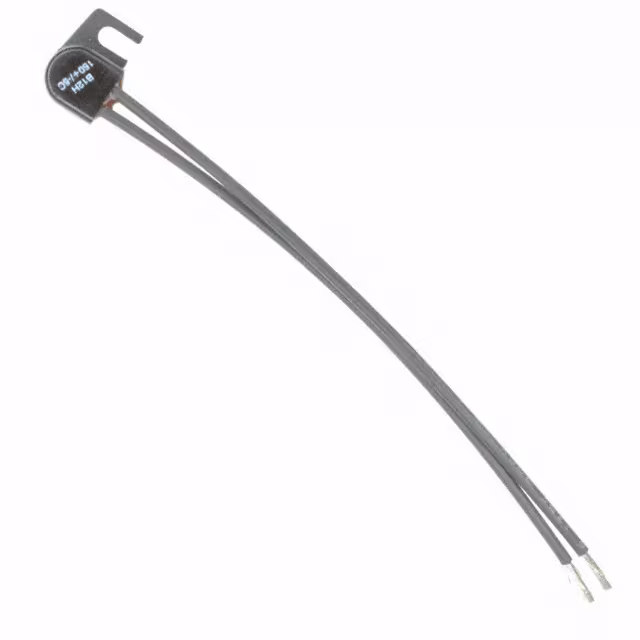

B12B15005AEDA0GETHERMOSTAT 150DEG C SPST-NO RAD |
4,274 |
|
数据手册 |
B12 | Radial | Bag | Obsolete | SPST-NO | 302°F (150°C) | 248°F (120°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
B12B15505AEDA0GETHERMOSTAT 155DEG C SPST-NO RAD |
1,138 |
|
数据手册 |
B12 | Radial | Bag | Obsolete | SPST-NO | 311°F (155°C) | 257°F (125°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|

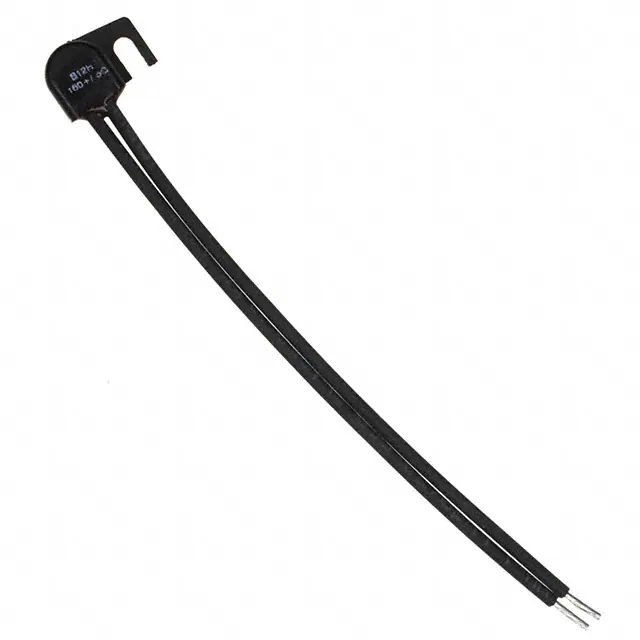

B12B16005AEDA0GETHERMOSTAT 160DEG C SPST-NO RAD |
3,867 |
|
数据手册 |
B12 | Radial | Bag | Obsolete | SPST-NO | 320°F (160°C) | 266°F (130°C) | 1.6A (250V) | - | ±9°F (±5°C) | 5K | Wire Leads - 4" (101.6mm) | Through Hole |
|
|
F20B075053600060THERMOSTAT 75DEG C SPST-NO 2SIP |
2,922 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 167°F (75°C) | 113°F (45°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B105053600060THERMOSTAT 105DEG C SPST-NO 2SIP |
2,011 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 221°F (105°C) | 167°F (75°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B115053600060THERMOSTAT 115DEG C SPST-NO 2SIP |
4,287 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 240°F (115°C) | 185°F (85°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B125053600060THERMOSTAT 125DEG C SPST-NO 2SIP |
2,405 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 257°F (125°C) | 203°F (95°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B130053600060THERMOSTAT 130DEG C SPST-NO 2SIP |
2,164 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 266°F (130°C) | 212°F (100°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B135053600060THERMOSTAT 135DEG C SPST-NO 2SIP |
2,606 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 275°F (135°C) | 221°F (105°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B140053600060THERMOSTAT 140DEG C SPST-NO 2SIP |
1,536 |
|
数据手册 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 284°F (140°C) | 230°F (110°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
