钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6TCF220M5LCAP TANT POLY 220UF 6.3V 2917 |
4,982 |
|
数据手册 |
POSCAP™ TC | 2917 (7343 Metric) | Tape & Reel (TR) | Last Time Buy | 220 µF | ±20% | 6.3 V | Molded | 5mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
TCME686M020R0025ECAP TANT POLY 68UF 20V 2917 |
1,117 |
|
数据手册 |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 20 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
T521X107M025AHE060100.UF 25.0V |
495 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
T59EE477M016C0020CAP TANT POLY 470UF 16V 2917 |
957 |
|
数据手册 |
vPolyTan™ T59 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | Molded | 20mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | - | General Purpose |
|
T543X107M025AHE060CAP TANT POLY 100UF 25V 2917 |
2,730 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|

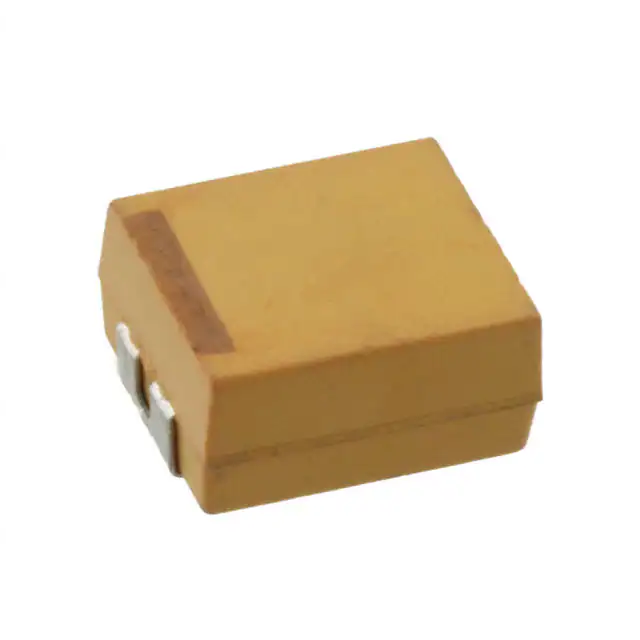

TCMU686M040R0050ECAP TANT POLY 68UF 40V 2924 |
158 |
|
数据手册 |
TCM | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 40 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | - | General Purpose |
|
|
T543B476K010AHW035D100CAP TANT POLY 47UF 10V 1411 |
252 |
|
数据手册 |
KO-CAP® T543 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±10% | 10 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
T543X476K035ATE060CAP TANT POLY 47UF 35V 2917 |
608 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±10% | 35 V | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
|
T543X337M010AHW010CAP TANT POLY 330UF 10V 2917 |
500 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
T54EE157M030CSA075CAP TANT POLY 150UF 30V 2917 |
769 |
|
数据手册 |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 30 V | Molded | 75mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | COTS | High Reliability |
|
|
T54EE226M063CSA100CAP TANT POLY 22UF 63V 2917 |
400 |
|
数据手册 |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 63 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | COTS | High Reliability |
|
|
T543X336K050AHW040CAP TANT POLY 33UF 50V 2917 |
847 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±10% | 50 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
|
T543X336K050ATW040CAP TANT POLY 33UF 50V 2917 |
342 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±10% | 50 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
|
T543X226M063AHW075CAP TANT POLY 22UF 63V 2917 |
2,705 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 63 V | Molded | 75mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
|
T543X336M050ATW040CAP TANT POLY 33UF 50V 2917 |
969 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 50 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
|
T54EE226M063ESA100CAP TANT POLY 22UF 63V 2917 |
649 |
|
数据手册 |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 63 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | COTS | High Reliability |
|
|
T543X337M016AHW0257505CAP TANT POLY 330UF 16V 2917 |
1,191 |
|
数据手册 |
KO-CAP® T543 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | COTS | High Reliability |
.jpg)
|
T540D157M010AH6710CAP TANT POLY 150UF 10V 2917 |
125 |
|
数据手册 |
KO-CAP® T540 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 10 V | Molded | 55mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | High Reliability |
|
T54EE337M016ESA025CAP TANT POLY 330UF 16V 2917 |
519 |
|
数据手册 |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | COTS | High Reliability |
|
|
T54EE476M050ESA100CAP TANT POLY 47UF 50V 2917 |
395 |
|
数据手册 |
vPolyTan™ T54 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 50 V | Molded | 100mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | COTS | High Reliability |
