钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T530D227M006ATE006CAP TANT POLY 220UF 6.3V 2917 |
480 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|

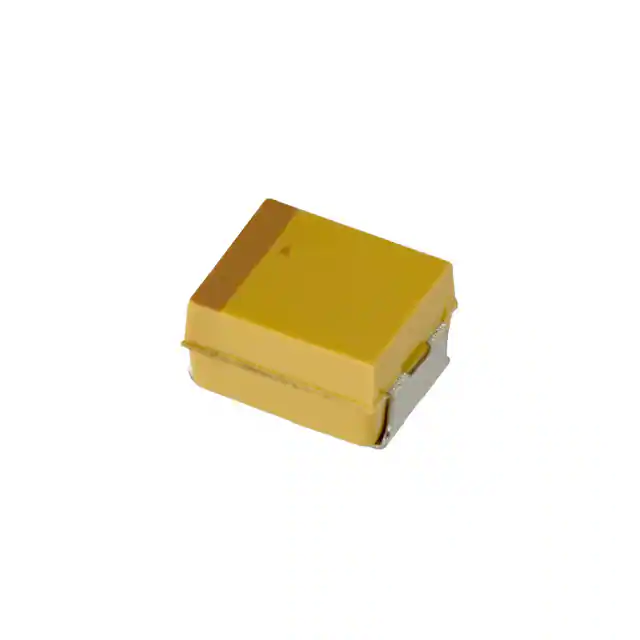

TCN4477M016R0070ECAP TANT POLY 470UF 16V 2924 |
625 |
|
数据手册 |
TCN | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
|
T530X687M004ATE006CAP TANT POLY 680UF 4V 2917 |
3,981 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 4 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
TCJD475M100R0250CAP TANT POLY 4.7UF 100V 2917 |
130 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 100 V | Molded | 250mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCME687M006R0012ECAP TANT POLY 680UF 6.3V 2917 |
975 |
|
数据手册 |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 12mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCME687M006R0012CAP TANT POLY 680UF 6.3V 2917 |
905 |
|
数据手册 |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 12mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
2R5TPF470M6LCAP TANT POLY 470UF 2.5V 2917 |
52,908 |
|
数据手册 |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|
T598D476M025AHS060CAP TANT POLY 47UF 25V 2917 |
503 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T530D227M010AHE010CAP TANT POLY 220UF 10V 2917 |
1,076 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T598D336M035AHS065CAP TANT POLY 33UF 35V 2917 |
174 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | Molded | 65mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|

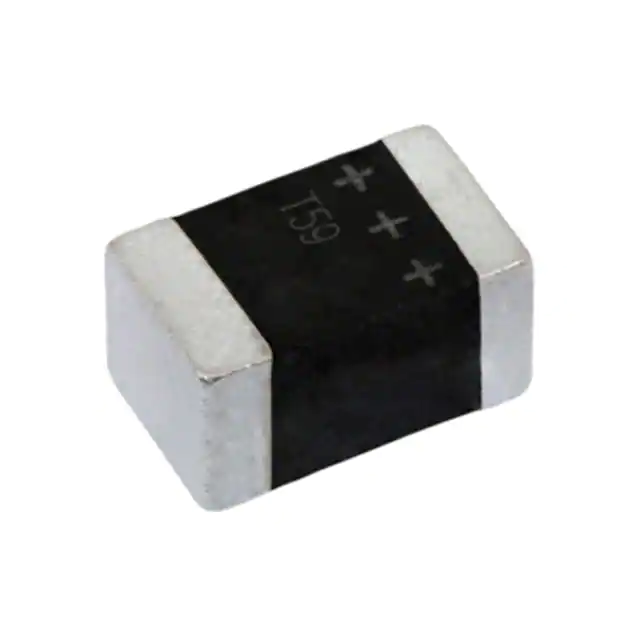

T59EE157M030C0150CAP TANT POLY 150UF 30V 2917 |
126 |
|
数据手册 |
vPolyTan™ T59 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 30 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | - | General Purpose |
|
|
T530Y108M2R5ATE005CAP TANT POLY 1000UF 2.5V 2917 |
5,082 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 5mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
|
ETPF680M5HCAP TANT POLY 680UF 2.5V 2917 |
2,931 |
|
数据手册 |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Not For New Designs | 680 µF | ±20% | 2.5 V | Molded | 5mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
H.JPG)
|
T520H158M006ATE055CAP TANT POLY 1500UF 6.3V 2924 |
4,639 |
|
数据手册 |
KO-CAP® T520 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | H | - | General Purpose |
|
TCNX108M006R0200CAP TANT POLY 1000UF 6.3V 2917 |
347 |
|
数据手册 |
TCN J-CAP | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
|
T530X337M010AHE006CAP TANT POLY 330UF 10V 2917 |
770 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|

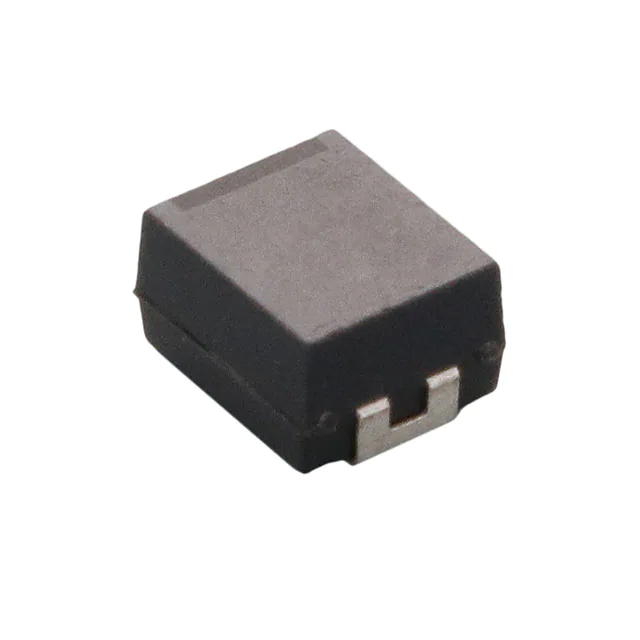

TCQU107M025R0070ECAP TANT POLY 100UF 25V 2924 |
1,516 |
|
数据手册 |
TCQ | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | AEC-Q200 | Automotive |
|
|
T530X157M016AHE015CAP TANT POLY 150UF 16V 2917 |
1,220 |
|
数据手册 |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 15mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
TCN4107M025R0100ECAP TANT POLY 100UF 25V 2924 |
3,247 |
|
数据手册 |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
6TPF220M5LCAP TANT POLY 220UF 6.3V 2917 |
16,561 |
|
数据手册 |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Last Time Buy | 220 µF | ±20% | 6.3 V | Molded | 5mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
