扬声器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

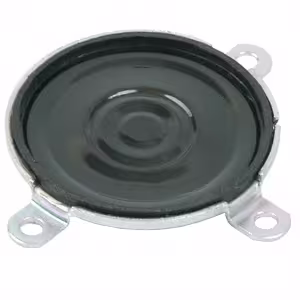

CLS0231MA3E-L152SPEAKR 32OHM 200MW TOP PORT 84DB Same Sky (Formerly CUI Devices) |
1,356 |
|
数据手册 |
CLS | Tray | Obsolete | Magnetic | Low Profile | 680 Hz ~ 7 kHz | 680Hz | 32 Ohms | 84.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
GA0451SPEAKER 8OHM 200MW TOP PORT 80DB Same Sky (Formerly CUI Devices) |
3,961 |
|
数据手册 |
GA | Bag | Active | Magnetic | General Purpose | 500 Hz ~ 9 kHz | 500Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.752" Dia (44.50mm) |
|
CMS-15118E-SPSPEAKER 8OHM 800MW TOP PT 90.5DB Same Sky (Formerly CUI Devices) |
2,187 |
|
数据手册 |
CMS | Tray | Active | Magnetic | Low Profile | 440 Hz ~ 10 kHz | 550Hz | 8 Ohms | 90.50 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

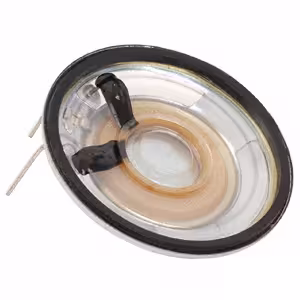

CLS0401MPSPEAKER 8OHM 200MW TOP PORT 80DB Same Sky (Formerly CUI Devices) |
2,056 |
|
数据手册 |
CLS | Bulk | Obsolete | Magnetic | Low Profile | 600 Hz ~ 8 kHz | 600Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.575" Dia (40.00mm) |
|
GA0506SPEAKER 8OHM 250MW TOP PORT 88DB Same Sky (Formerly CUI Devices) |
2,329 |
|
数据手册 |
GA | Bag | Active | Magnetic | General Purpose | 430 Hz ~ 4 kHz | 430Hz | 8 Ohms | 88.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|
|
GA0571SPEAKER 8OHM 250MW TOP PORT 88DB Same Sky (Formerly CUI Devices) |
3,366 |
|
数据手册 |
GA | Bag | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 400Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
GA0381MSPEAKER 8OHM 200MW TOP PORT 79DB Same Sky (Formerly CUI Devices) |
4,842 |
|
数据手册 |
GA | Bag | Active | Magnetic | General Purpose | 800 Hz ~ 9 kHz | 800Hz | 8 Ohms | 79.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.496" Dia (38.00mm) |
|
CDS-16098ASPEAKER 8OHM 700MW TOP PORT 86DB Same Sky (Formerly CUI Devices) |
2,046 |
|
数据手册 |
CDS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CLS0402MA-1SPEAKER 8OHM 500MW TOP PORT 90DB Same Sky (Formerly CUI Devices) |
2,290 |
|
数据手册 |
CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 6 kHz | 530Hz | 8 Ohms | 90.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
GF0571MSPEAKER 8OHM 250MW TOP PORT 86DB Same Sky (Formerly CUI Devices) |
1,108 |
|
数据手册 |
GF | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 14 kHz | 480Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
