扬声器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

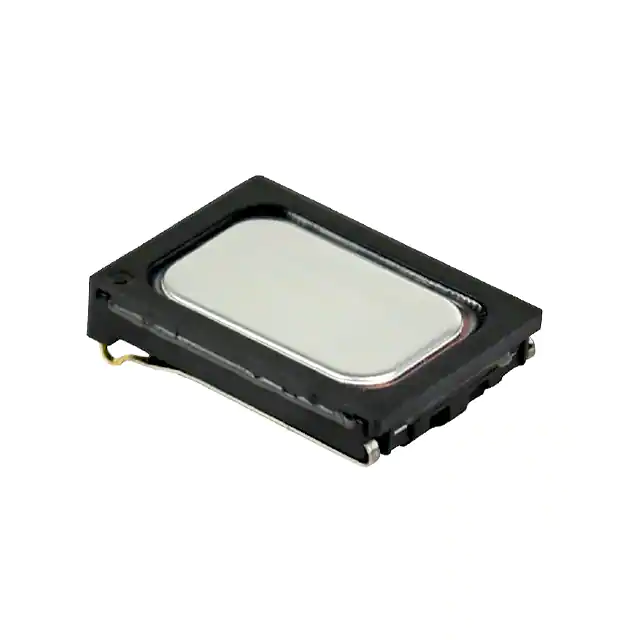

CMS-15116-30-SPSPEAKER 6OHM 940MW TOP PORT 94DB Same Sky (Formerly CUI Devices) |
1,753 |
|
数据手册 |
CMS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 6 Ohms | 94.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

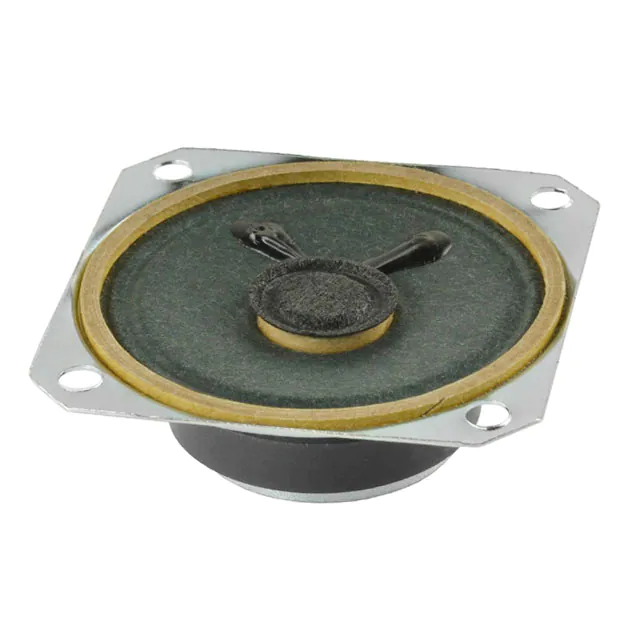

CSS-50508NSPEAKER 8OHM 250MW TOP PORT 85DB Same Sky (Formerly CUI Devices) |
2,639 |
|
数据手册 |
CSS | Tray | Active | Magnetic | General Purpose | 304 Hz ~ 3.2 kHz | 380Hz | 8 Ohms | 85.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.988" L x 1.988" W (50.50mm x 50.50mm) |
|

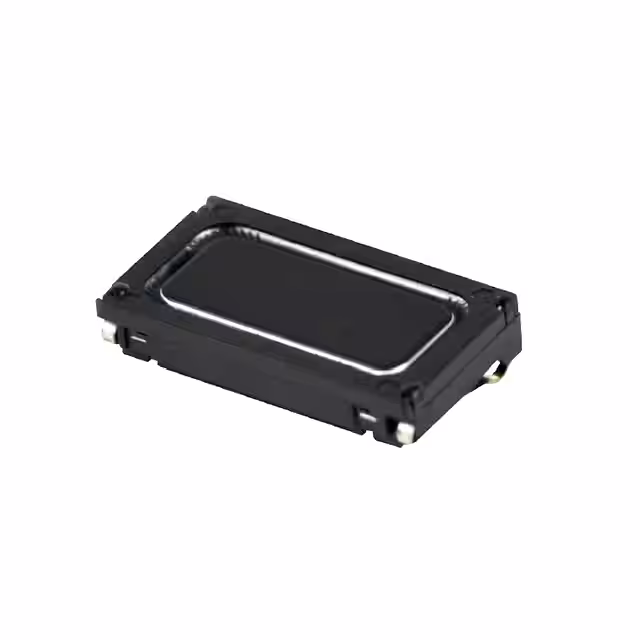

CMS-160916-30-SPSPEAKER 6OHM 800MW TOP PORT 92DB Same Sky (Formerly CUI Devices) |
1,640 |
|
数据手册 |
CMS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 6 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CDS-15118B-L100SPEAKER 8OHM 700MW TOP PORT 86DB Same Sky (Formerly CUI Devices) |
3,927 |
|
数据手册 |
CDS | Tray | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS0201PEIXAudio Devices Same Sky (Formerly CUI Devices) |
3,028 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

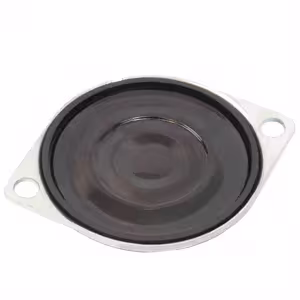

CLF0251MPSPEAKER 8OHM 100MW TOP PORT 70DB Same Sky (Formerly CUI Devices) |
2,405 |
|
数据手册 |
CLF | Tray | Obsolete | Magnetic | Low Profile | 650 Hz ~ 5 kHz | 650Hz | 8 Ohms | 70.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 0.984" Dia (25.00mm) |
|
CMS-160916-30-2SPEAKER 6OHM 700MW TOP PT 89.5DB Same Sky (Formerly CUI Devices) |
2,841 |
|
数据手册 |
CMS | Tray | Obsolete | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 6 Ohms | 89.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
GC0201MAP-1SPEAKER 8OHM 400MW TOP PORT 81DB Same Sky (Formerly CUI Devices) |
3,349 |
|
数据手册 |
GC | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 7 kHz | 850Hz | 8 Ohms | 81.00 | - | Sound Pressure Level (SPL) | 400 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.787" Dia (20.00mm) |
|

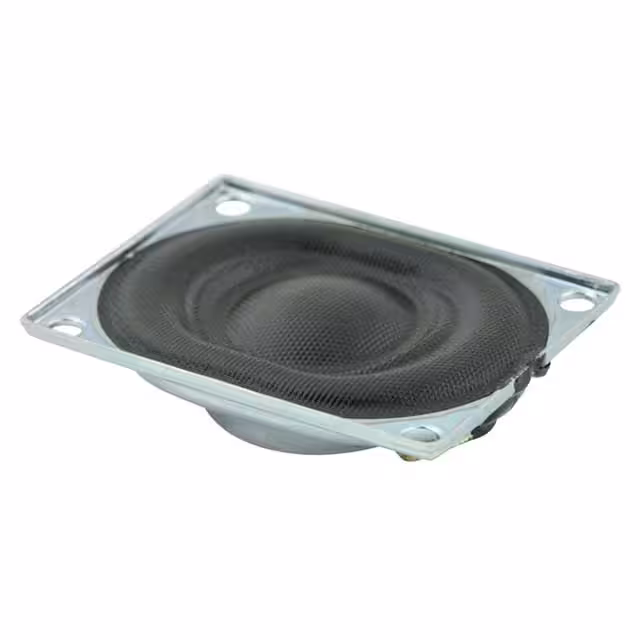

CDS-27208SPEAKER 8OHM 2W TOP PORT 95DB Same Sky (Formerly CUI Devices) |
1,055 |
|
数据手册 |
CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|

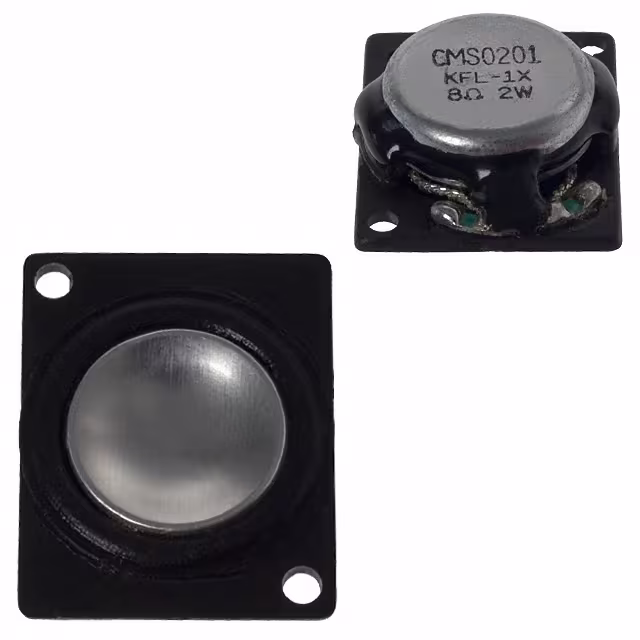

CMS0201KFL-1XSPEAKER 8OHM 2W TOP PORT 81DB Same Sky (Formerly CUI Devices) |
2,900 |
|
数据手册 |
CMS | Bulk | Obsolete | - | General Purpose | 1.05 kHz ~ 20 kHz | 1050Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round, Rectangular Frame | - | - | - | - | Solder Eyelet(s) | 0.787" L x 0.630" W (20.00mm x 16.00mm) |
