扬声器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GC0351P-1SPEAKER 4OHM 1W TOP PORT 82DB Same Sky (Formerly CUI Devices) |
369 |
|
数据手册 |
GC | Tray | Active | Magnetic | General Purpose | 630 Hz ~ 13 kHz | 630Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

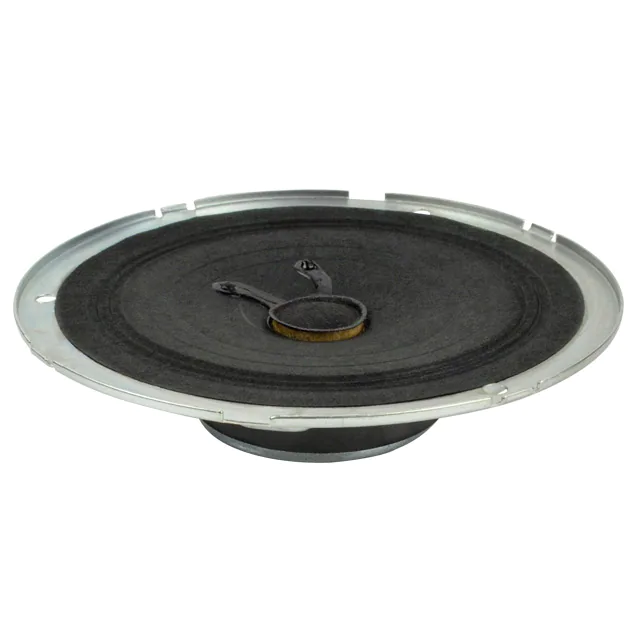

GF1207SPEAKER 8OHM 5W TOP PORT 96DB Same Sky (Formerly CUI Devices) |
985 |
|
数据手册 |
GF | Box | Active | Magnetic | General Purpose | 160 Hz ~ 8 kHz | 160Hz | 8 Ohms | 96.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | - |
|
CES-885955-26PMSPEAKER 6OHM 2W TOP PORT 91DB Same Sky (Formerly CUI Devices) |
187 |
|
数据手册 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 256 Hz ~ 20 kHz | 320Hz | 6 Ohms | 91.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Wire Leads | 3.461" L x 2.334" W (87.90mm x 59.29mm) |
|
CMS-1545-058L5515MM ROUND, .5W, 8, 1000HZ Same Sky (Formerly CUI Devices) |
870 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 90.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
|
CMS-241535-078L6524X15MM OVAL, .7W, 8, 850HZ Same Sky (Formerly CUI Devices) |
1,033 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval, Rectangular Frame | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
|
CMS-3047-18L30030MM ROUND, 1W, 8, 600HZ Same Sky (Formerly CUI Devices) |
987 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 6 kHz | 600Hz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.181" Dia (30.00mm) |
|
|
CMS-2003-058SPSPEAKER, 20 MM, 3 MM DEEP, PET, Same Sky (Formerly CUI Devices) |
979 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 456 Hz ~ 20 kHz | 570Hz | 8 Ohms | 78.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
|
CMS-203-058SPSPEAKER, 20MM ROUND, 3 MM DEEP, Same Sky (Formerly CUI Devices) |
495 |
|
数据手册 |
- | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 500Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
|
CMS-1535-058SPSPEAKER, 15 MM ROUND, 3.5 MM DEE Same Sky (Formerly CUI Devices) |
490 |
|
数据手册 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 96.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
|
CMS-171233-18SP-X8SPEAKER, 17 X 12 MM, 3.3 MM DEEP Same Sky (Formerly CUI Devices) |
759 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 10 kHz | 1kHz | 8 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.669" L x 0.472" W (17.00mm x 12.00mm) |
