扬声器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-40558N-L152BSPEAKER 8OHM 500MW TOP PORT 90DB Same Sky (Formerly CUI Devices) |
457 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|

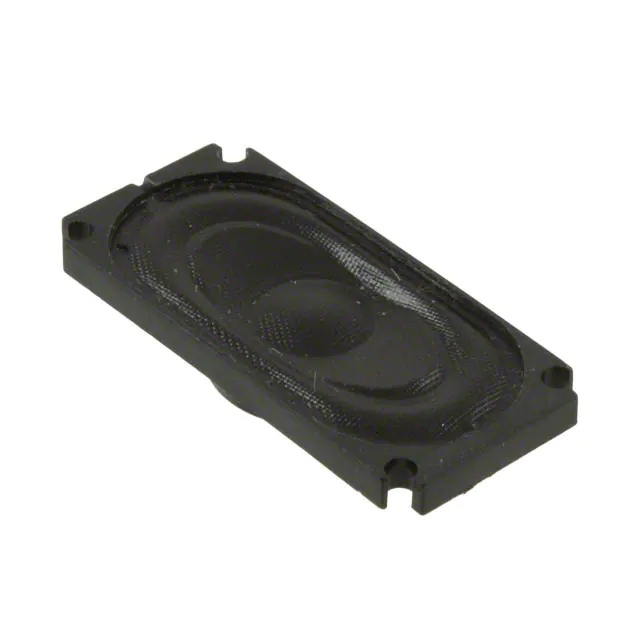

GC0351M-3SPEAKER 8OHM 1W TOP PORT 83DB Same Sky (Formerly CUI Devices) |
1,897 |
|
数据手册 |
GC | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|
CLS0501MSPEAKER 8OHM 200MW TOP PORT 80DB Same Sky (Formerly CUI Devices) |
980 |
|
数据手册 |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CDS-27204-L1003SPEAKER 4OHM 2W TOP PORT 93DB Same Sky (Formerly CUI Devices) |
981 |
|
数据手册 |
CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
CLS0301MASPEAKER 8OHM 200MW TOP PORT 89DB Same Sky (Formerly CUI Devices) |
171 |
|
数据手册 |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
GF0701SPEAKER 8OHM 500MW TOP PORT 91DB Same Sky (Formerly CUI Devices) |
948 |
|
数据手册 |
GF | Box | Active | Magnetic | General Purpose | 310 Hz ~ 4 kHz | 310Hz | 8 Ohms | 91.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
|
GF0661SPEAKER 8OHM 300MW TOP PORT 86DB Same Sky (Formerly CUI Devices) |
1,000 |
|
数据手册 |
GF | Box | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 300Hz | 8 Ohms | 86.00 | 300mW/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|
CMS-35206-158SPEAKER 8OHM 1.5W TOP PORT 100DB Same Sky (Formerly CUI Devices) |
240 |
|
数据手册 |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.374" L x 0.787" W (34.90mm x 20.00mm) |
|

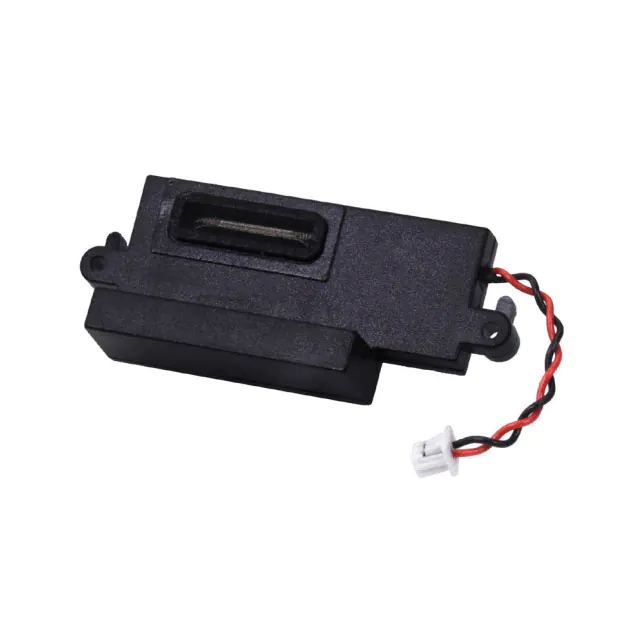

CES-361810-18PMSPEAKER 8OHM 1W TOP PORT 90.5DB Same Sky (Formerly CUI Devices) |
226 |
|
数据手册 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 800 Hz ~ 10 kHz | 1kHz | 8 Ohms | 90.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.610" L x 0.728" W (40.90mm x 18.50mm) |
|
|

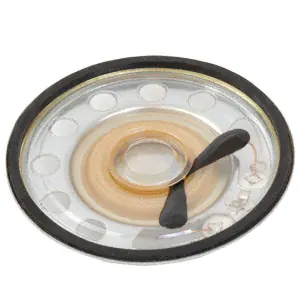

CLS0501M-L152SPEAKER 8OHM 200MW TOP PORT 80DB Same Sky (Formerly CUI Devices) |
297 |
|
数据手册 |
CLS | Bulk | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.969" Dia (50.00mm) |
