滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

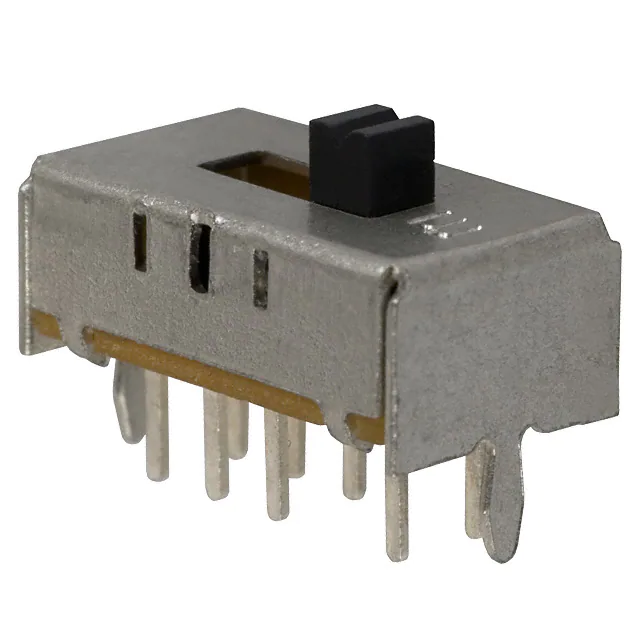

EG2305ASWITCH SLIDE DP3T 200MA 30V E-Switch |
2,431 |
|
数据手册 |
EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
EGL2290GSWITCH SLIDE DPDT 300MA 6V E-Switch |
1,500 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Green |
|

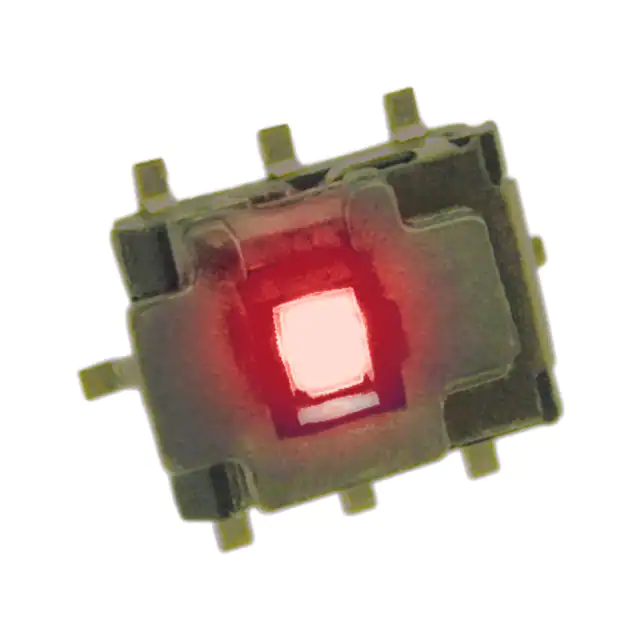

EGL2290RSWITCH SLIDE DPDT 300MA 6V E-Switch |
1,130 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Red |
|
600SP1S2M1RSWITCH SLIDE SPDT 0.4VA 20V E-Switch |
225 |
|
数据手册 |
600 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.81mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP67 |
|

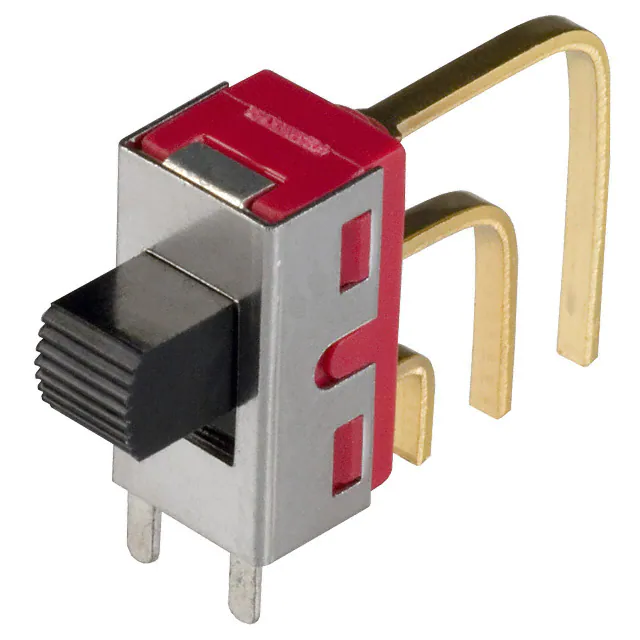

500SSP1S1M7REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
580 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

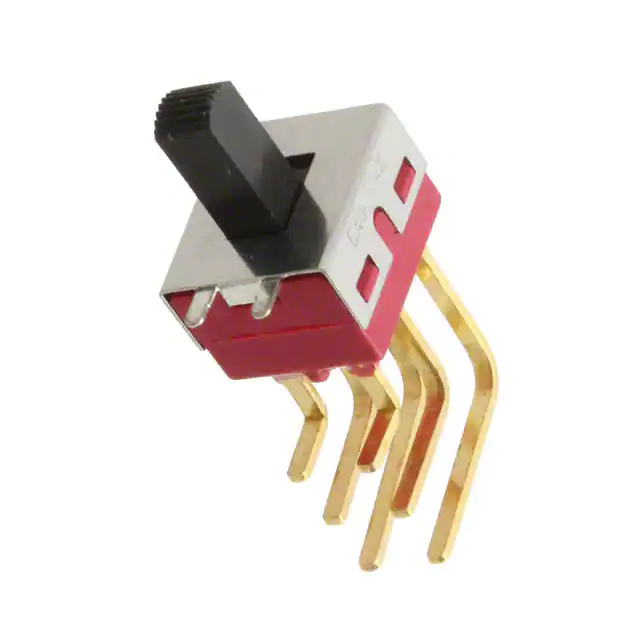

500SDP1S3M7REASWITCH SLIDE DPDT 0.4VA 20V E-Switch |
206 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

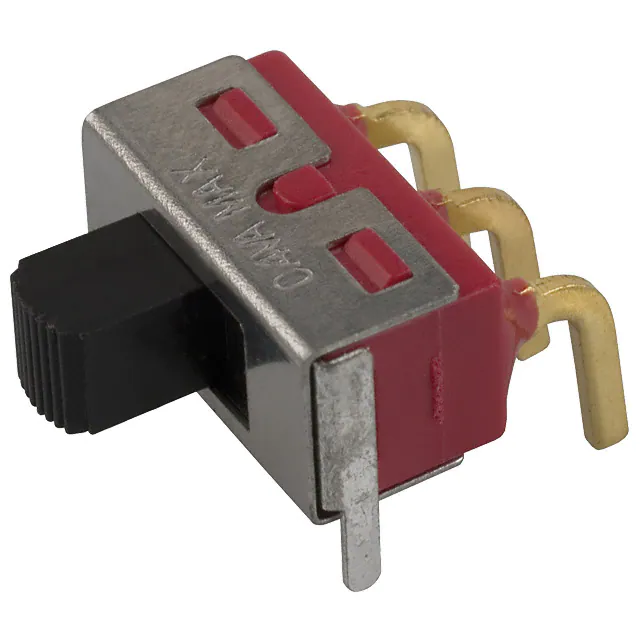

500SSP1S1M6REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
176 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
500SSP1S1M1QEASWITCH SLIDE SPDT 5A 120V E-Switch |
5,372 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

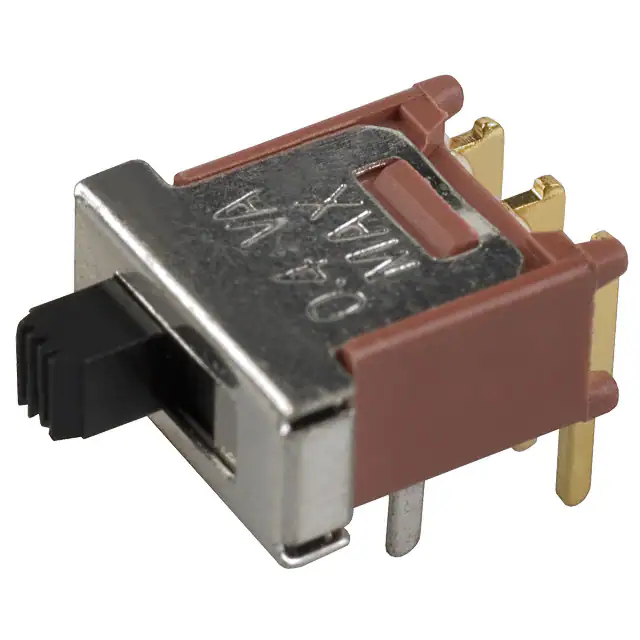

500ASSP1M6RESWITCH SLIDE SPDT 0.4VA 20V E-Switch |
5,997 |
|
数据手册 |
500A | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

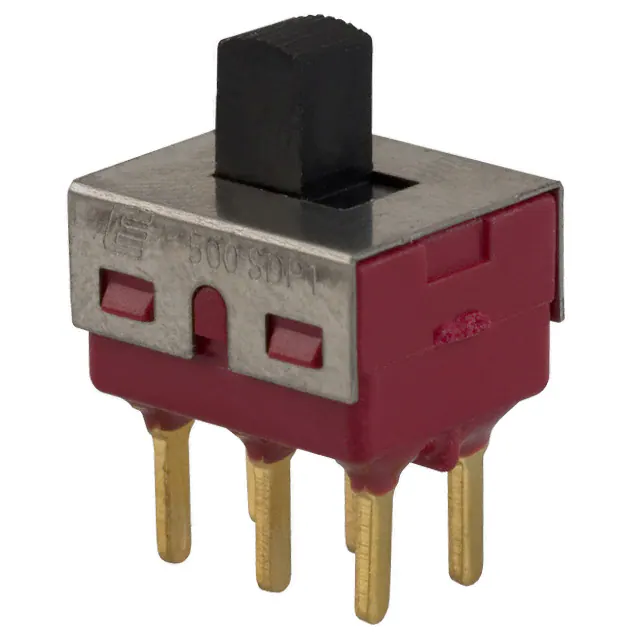

500SDP1S1M2REASWITCH SLIDE DPDT 0.4VA 20V E-Switch |
156 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
