上传BOM单
滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

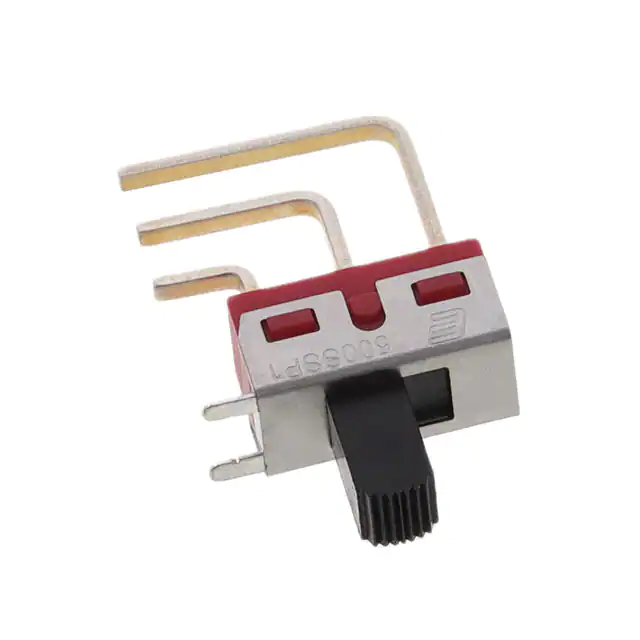

500SSP1S2M7QEASWITCH SLIDE SPDT 5A 120V E-Switch |
3,921 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

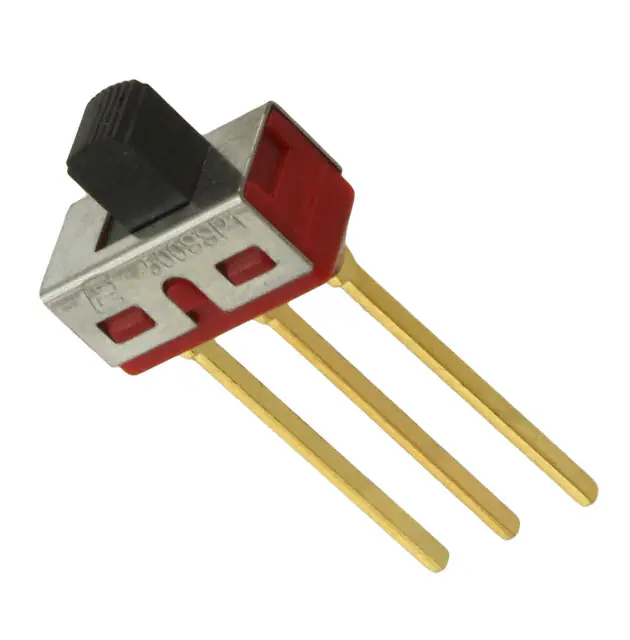

500SSP1S1M51REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
3,507 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
500RSP1S1M2RESWITCH SLIDE SPDT 0.4VA 20V E-Switch |
2,588 |
|
数据手册 |
500R | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | - | - | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|

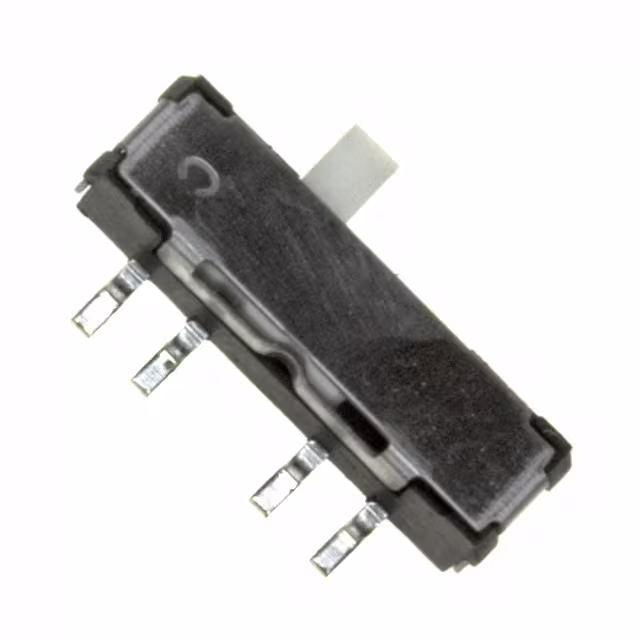

EG1380ASWITCH SLIDE SP3T 300MA 6V E-Switch |
4,101 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | - | Surface Mount, Right Angle | Gull Wing | - |
|

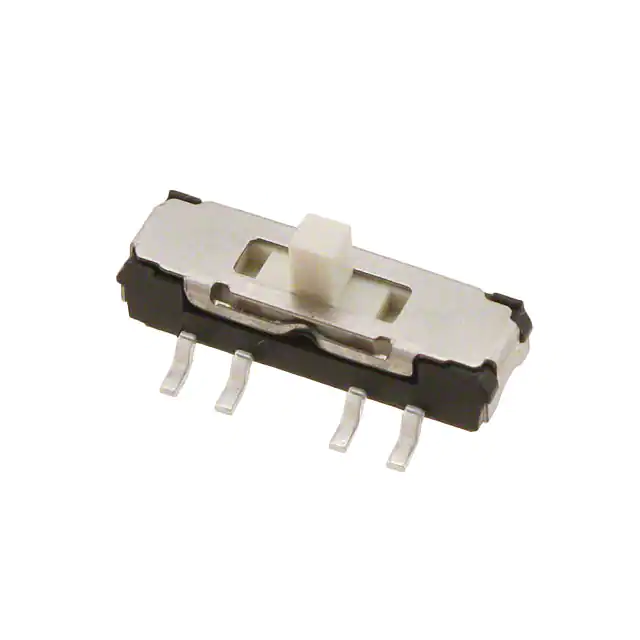

EG1381ASWITCH SLIDE SP3T 300MA 6V E-Switch |
4,471 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | - | Surface Mount | Gull Wing | - |
|

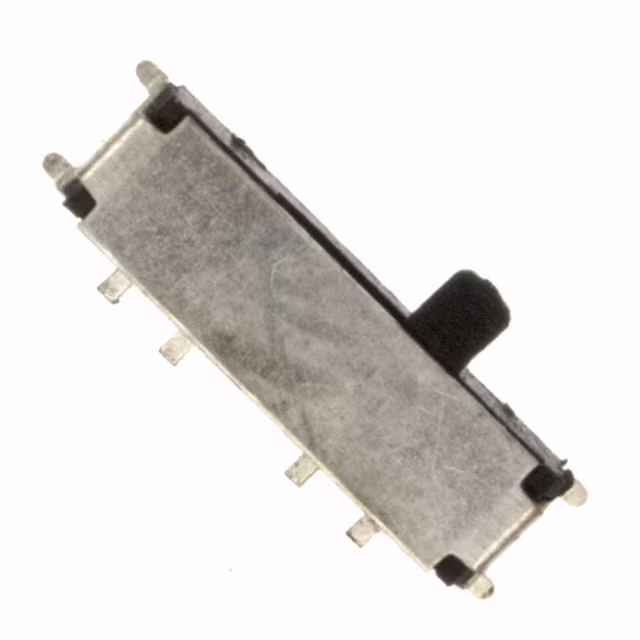

EG1300BSWITCH SLIDE SP3T 300MA 4V E-Switch |
2,854 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 4 V | Standard | 1.50mm | - | - | Surface Mount, Right Angle | Gull Wing | - |
|

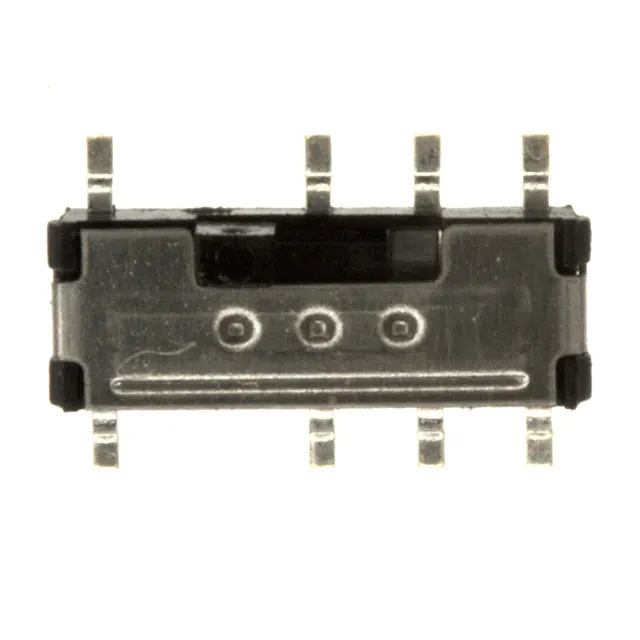

EG1400ASWITCH SLIDE DP3T 300MA 4V E-Switch |
1,663 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 4 V | Standard | 1.00mm | - | - | Surface Mount | Gull Wing | - |
|

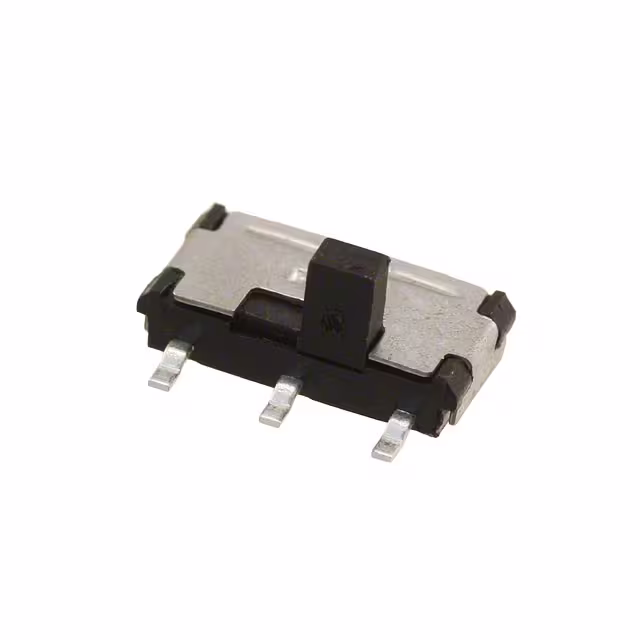

EG1390BSWITCH SLIDE DPDT 300MA 4V E-Switch |
4,314 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | DPDT | Not Specified | On-On | 300mA (DC) | - | 4 V | Standard | 2.00mm | - | - | Surface Mount | Gull Wing | - |
|

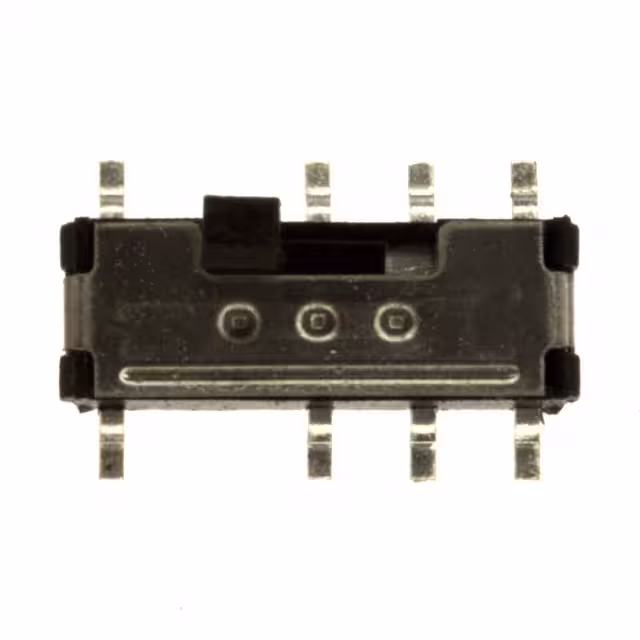

EG1400BSWITCH SLIDE DP3T 300MA 4V E-Switch |
4,229 |
|
数据手册 |
EG | Tape & Reel (TR) | Obsolete | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 4 V | Standard | 2.50mm | - | - | Surface Mount | Gull Wing | - |
|
EG2207NONSHORTINGUL94V0SWITCH SLIDE DPDT 0.2A 30V E-Switch |
4,597 |
|
数据手册 |
EG | Bulk | Active | DPDT | Not Specified | On-On | - | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
