滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825010-7SWITCH SLIDE DPDT 0.4VA 20V |
3,552 |
|
数据手册 |
ASE | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper Alloy | Gold | Surface Mount | J Lead | - |
|

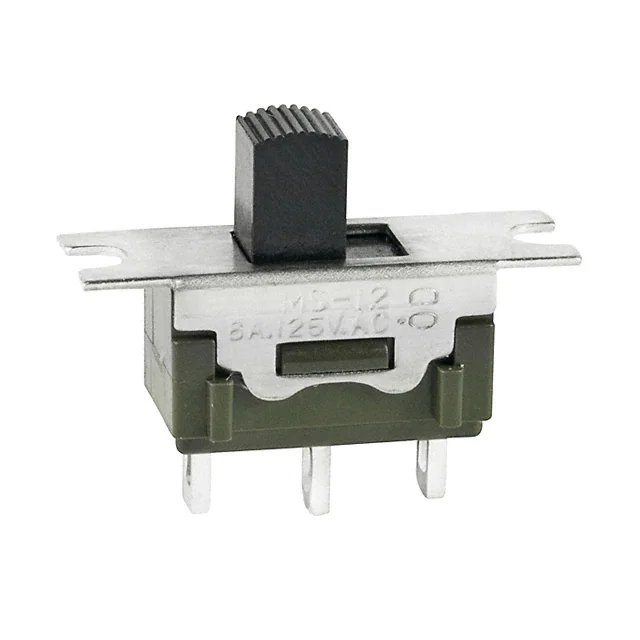

MS12AFW01SWITCH SLIDE SPDT 6A 125V |
2,317 |
|
数据手册 |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
1825289-9SWITCH SLIDE DP3T 0.4VA 20V |
1,830 |
|
数据手册 |
MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825011-4SWITCH SLIDE DPDT 0.4VA 20V |
3,927 |
|
数据手册 |
ASF | Tube | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
ASE 1 D-RASWITCH SLIDE 1-POLE ON-ON |
444 |
|
数据手册 |
ASE | Box | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard | 2.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|
AS12AWSWITCH SLIDE SPDT 0.4VA 28V |
3,687 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

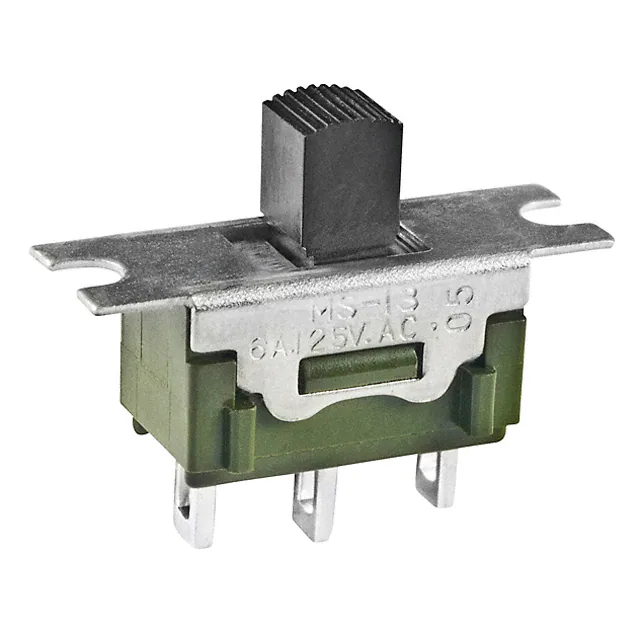

MS13AFW01SWITCH SLIDE SPDT 6A 125V |
1,655 |
|
数据手册 |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
AS12CWSWITCH SLIDE SPDT 0.4VA 28V |
4,215 |
|
数据手册 |
AS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
|
AS12ABSWITCH SLIDE SPDT 0.4VA 28V |
3,108 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS12CBSWITCH SLIDE SPDT 0.4VA 28V |
1,898 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

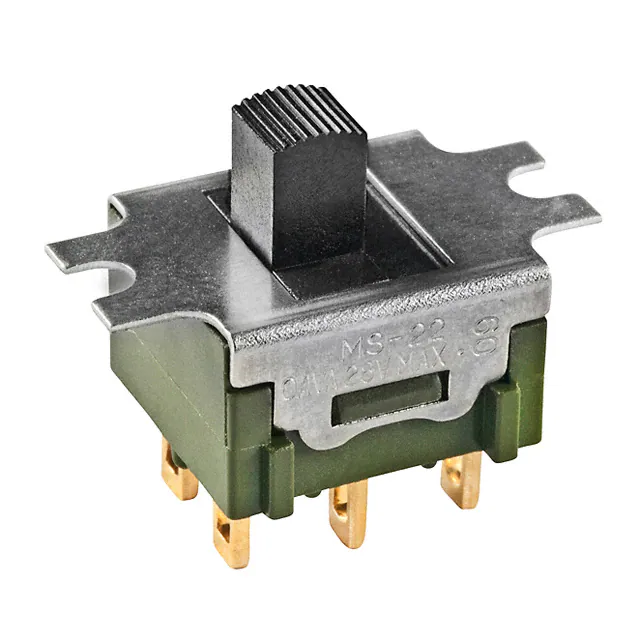

MS22AFG01SWITCH SLIDE DPDT 0.4VA 28V |
125 |
|
数据手册 |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
AS13CPSWITCH SLIDE SPDT 0.4VA 28V |
3,168 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS13CWSWITCH SLIDE SPDT 0.4VA 28V |
1,143 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

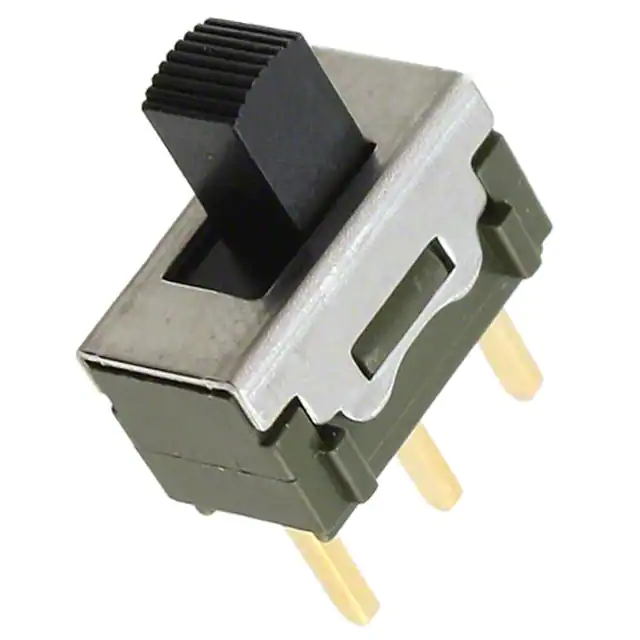

MS12ANG03SWITCH SLIDE SPDT 0.4VA 28V |
3,212 |
|
数据手册 |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS12CV1SWITCH SLIDE SPDT 0.4VA 28V |
3,630 |
|
数据手册 |
A | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.81mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
AS13ABSWITCH SLIDE SPDT 0.4VA 28V |
3,516 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CBSWITCH SLIDE SPDT 0.4VA 28V |
1,692 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GH36Y010001SWITCH SLIDE SPDT 3A 30V |
4,913 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS13CHSWITCH SLIDE SPDT 0.4VA 28V |
2,487 |
|
数据手册 |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MS12ASG13SWITCH SLIDE SPDT 0.4VA 28V |
105 |
|
数据手册 |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
