滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLB1470RSWITCH SLIDE SP4T 300MA 125V |
2,180 |
|
数据手册 |
SLB | Bulk | Obsolete | SP4T | Not Specified | On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825272-1SWITCH SLIDE 6PDT 300MA 125V |
1,135 |
|
数据手册 |
MSS | Bulk | Obsolete | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 12.20mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
3-1825011-5SWITCH SLIDE 4PDT 300MA 115V |
2,740 |
|
数据手册 |
ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
1825289-6SWITCH SLIDE DPDT 0.4VA 20V |
214 |
|
数据手册 |
MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1203A1CQEASWITCH SLIDE DPDT 5A 120V |
195 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
T2215BEN506SWITCH SLIDE SPDT 16A 250V |
1,297 |
|
数据手册 |
2000 | Bulk | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | 1.00mm | - | - | Panel Mount | Solder Lug | 220V-240V Marking |
|
1825259-2SWITCH SLIDE SP3T 0.4VA 20V |
1,265 |
|
数据手册 |
MSS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.80mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
EGL2290RGSWITCH SLIDE DPDT 300MA 6V |
1,500 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Red/Green |
|
|
CST042NKSWITCH SLIDE 4PDT 300MA 125V |
1,434 |
|
数据手册 |
CST | Bulk | Active | 4PDT | Non-Shorting (BBM) | On-On | 300mA (AC), 200mA (DC) | 125 V | 12 V | Baton | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
K22205BR-450BSWITCH SLIDE DPDT 16A 250V |
2,376 |
|
数据手册 |
2000 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | 1.00mm | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | 120V-240V Marking |
|
|
T22205BB-437WSWITCH SLIDE DPDT 16A 250V |
2,578 |
|
数据手册 |
2000 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | 1.00mm | - | - | Panel Mount | Solder Lug | 115V-230V Marking |
|
|
1825269-1SWITCH SLIDE 4P3T 300MA 125V |
4,764 |
|
数据手册 |
MSS | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 9.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
T22205BR-436WSWITCH SLIDE DPDT 16A 250V |
3,085 |
|
数据手册 |
2000 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | 1.00mm | - | - | Panel Mount | Solder Lug | 115V-230V Marking |
|

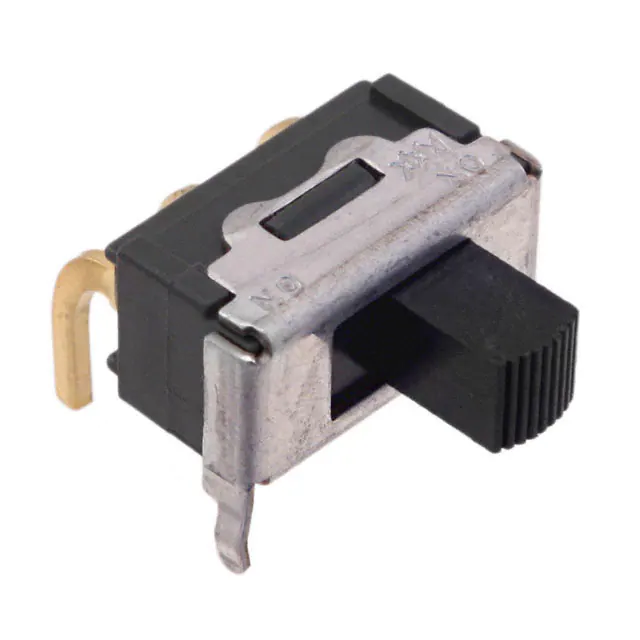

MS12ASG30SWITCH SLIDE SPDT 0.4VA 28V |
445 |
|
数据手册 |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1201M2S1CQE1SWITCH SLIDE DPDT 6A 120V |
232 |
|
数据手册 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 1.02mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals, White Actuator |
|
|
1825270-2SWITCH SLIDE 4P3T 0.4VA 20V |
4,135 |
|
数据手册 |
MSS | Bulk | Obsolete | 4P3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 14.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
AS11AWSWITCH SLIDE SPST 0.4VA 28V |
2,418 |
|
数据手册 |
AS | Bulk | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
|
AS11CWSWITCH SLIDE SPST 0.4VA 28V |
2,685 |
|
数据手册 |
AS | Bulk | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
TSS11DGPCSWITCH SLIDE SPDT 0.4VA 20V |
1,174 |
|
数据手册 |
TSS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS11ABSWITCH SLIDE SPST 0.4VA 28V |
4,815 |
|
数据手册 |
AS | Bulk | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
