上传BOM单
滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH49WW00001SWITCH SLIDE DPDT 0.4VA 20V APEM Inc. |
1,060 |
|
数据手册 |
G | Tube | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
GN49W000001SLIDE SWITCH G TELECOM GRADE APEM Inc. |
2,415 |
|
数据手册 |
G | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.50mm | Brass | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
GH46WW00001SWITCH SLIDE DPDT 0.4VA 20V APEM Inc. |
3,920 |
|
数据手册 |
G | Tube | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
GH49W010001SLIDE SWITCH G TELECOM GRADE APEM Inc. |
4,120 |
|
数据手册 |
G | Bulk | Active | DPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | - |
|
|
GH46WW10001SWITCH SLIDE DPDT 3A 30V APEM Inc. |
4,490 |
|
数据手册 |
G | Tube | Active | DPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
GH49WW10001SLIDE SWITCH G TELECOM GRADE APEM Inc. |
4,244 |
|
数据手册 |
G | Bulk | Active | DPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | - |
|

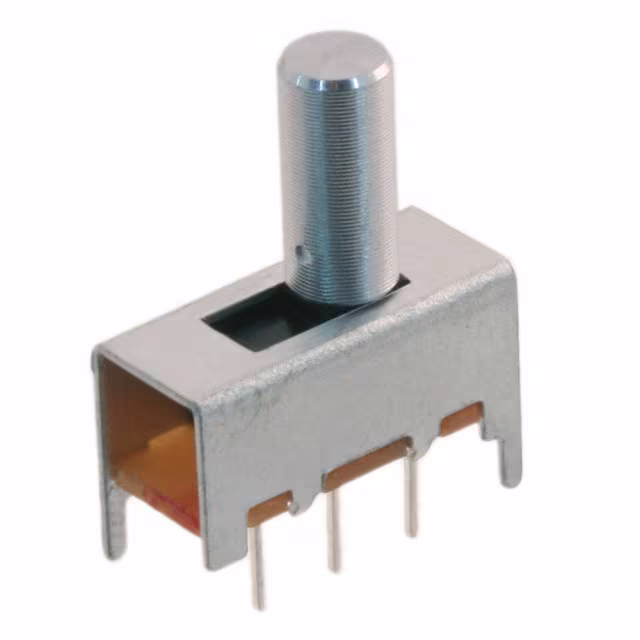

MHS122KSWITCH SLIDE SPDT 300MA 30V APEM Inc. |
2,275 |
|
数据手册 |
MHS | Bulk | Obsolete | SPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Baton | 10.00mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MCE23SWITCH SLIDE APEM Inc. |
3,194 |
|
数据手册 |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MJS12SWITCH SLIDE SPDT 100MA 12V APEM Inc. |
4,147 |
|
数据手册 |
MJS | Bulk | Obsolete | SPDT | Not Specified | On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
|
MJS22SWITCH SLIDE DPDT 100MA 12V APEM Inc. |
2,151 |
|
数据手册 |
MJS | Bulk | Obsolete | DPDT | Not Specified | On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
