滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH39Y000001SLIDE SWITCH G TELECOM GRADE APEM Inc. |
3,993 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
25346NASWITCH SLIDE DPDT 4A 125V APEM Inc. |
1,197 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25546NA6X693ULSLIDE SWITCH 25000N PCB MOUNT APEM Inc. |
1,007 |
|
数据手册 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver | - | Through Hole, Right Angle | PC Pin | - |
|
|
25446NABSWITCH SLIDE DPDT 4A 125V APEM Inc. |
4,706 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25546NASWITCH SLIDE DPDT 4A 125V APEM Inc. |
3,903 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25446NAHSWITCH SLIDE DPDT 4A 125V APEM Inc. |
4,397 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25346NLD6SWITCH SLIDE DPDT 100MA 30V APEM Inc. |
1,277 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25146NLDBSWITCH SLIDE DPDT 100MA 30V APEM Inc. |
4,197 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Flush | - | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

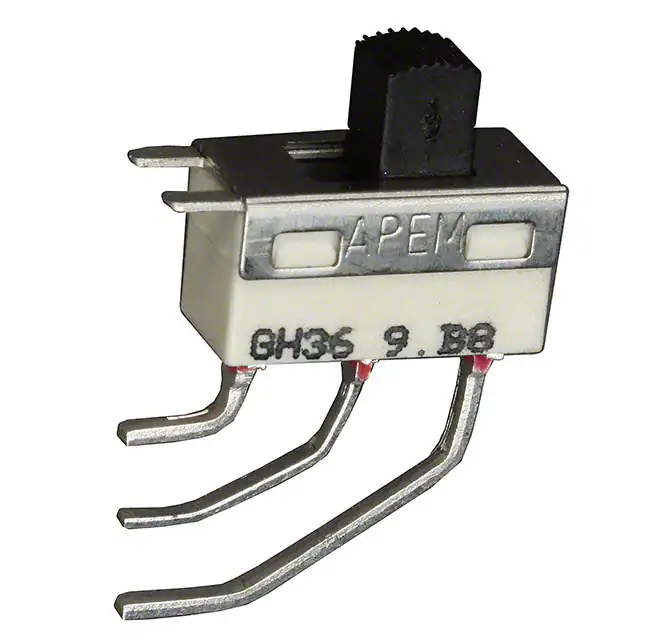

GH36WW10001SWITCH SLIDE SPDT 3A 30V APEM Inc. |
4,151 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
25546NLDSWITCH SLIDE DPDT 100MA 30V APEM Inc. |
2,379 |
|
数据手册 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
