滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GR5-326-0890SWITCH SLIDE DPDT 3A 125V |
366 |
|
数据手册 |
GR5 | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC) | 125 V | - | Rocker Knob | 18.59mm | - | - | Panel Mount | PC Pin | - |
|
GS-115-0041SWITCH SLIDE SPDT 500MA 125V |
664 |
|
数据手册 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.56mm | Copper Alloy | Silver | Panel Mount | Press-Fit | - |
|
1825263-1SWITCH SLIDE DPDT 300MA 125V |
5,932 |
|
数据手册 |
MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 11.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

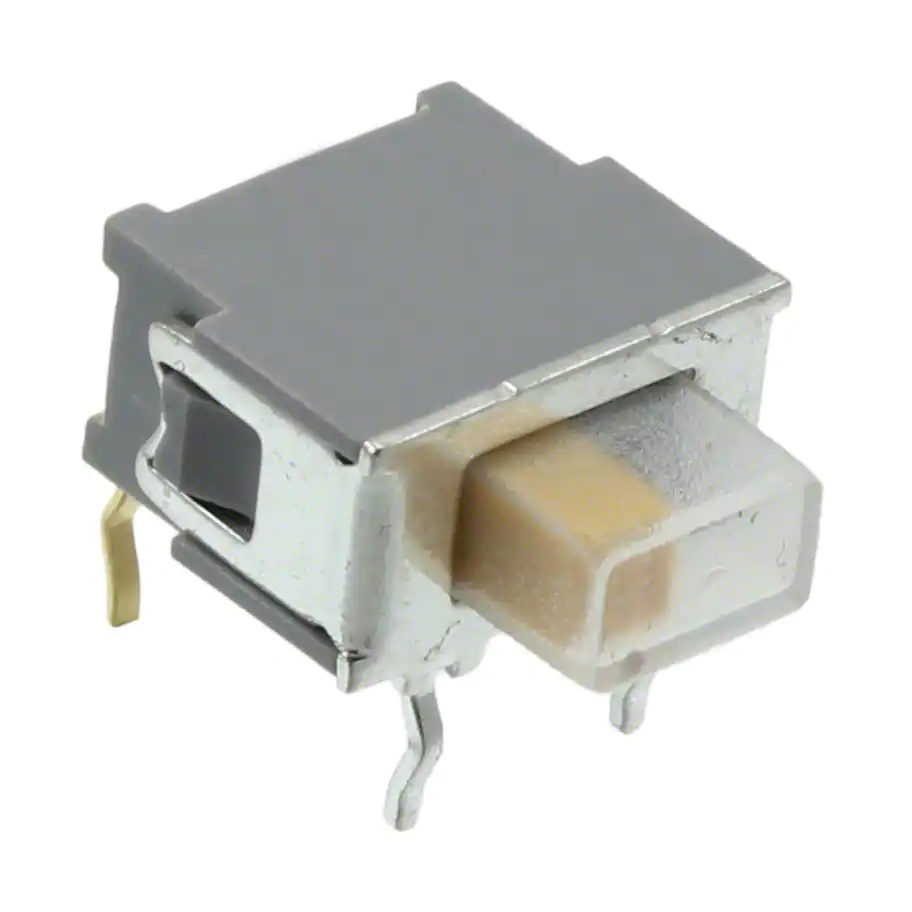

ASE1D-6M-10-ZSWITCH SLIDE SPDT 50MA 60V |
641 |
|
数据手册 |
ASE | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 50mA (AC/DC) | 60 V | 60 V | Standard | 2.80mm | - | Gold | Through Hole, Right Angle | PC Pin | Washable |
|
EGL2290GSWITCH SLIDE DPDT 300MA 6V |
1,500 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Green |
|
EGL2290RSWITCH SLIDE DPDT 300MA 6V |
1,130 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Red |
|

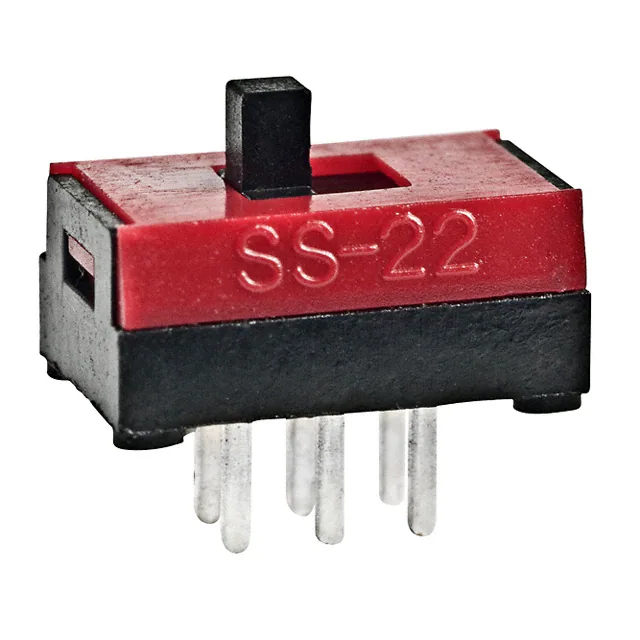

SS22SBP2SWITCH SLIDE DPDT 100MA 30V |
2,660 |
|
数据手册 |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
G-368S-0001SWITCH SLIDE 3P3T 3A 125V |
2,242 |
|
数据手册 |
G | Bulk | Active | 3P3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
GF-126-0135SWITCH SLIDE DPDT 500MA 125V |
467 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GS-115-0033SWITCH SLIDE SPDT 500MA 125V |
394 |
|
数据手册 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.56mm | Copper Alloy | Silver | Through Hole | Press-Fit | - |
|
SS14MBP2SWITCH SLIDE SP3T 100MA 30V |
1,445 |
|
数据手册 |
SS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

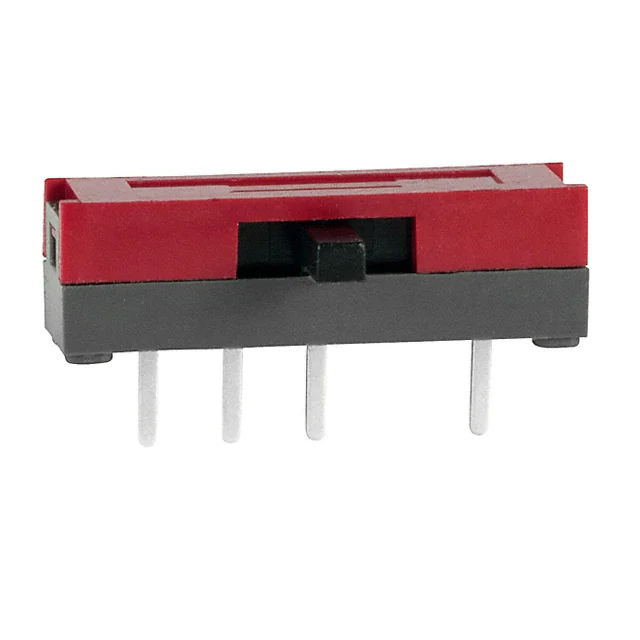

SS14MDH2SWITCH SLIDE SP3T 100MA 30V |
230 |
|
数据手册 |
SS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
600SP1S2M1RSWITCH SLIDE SPDT 0.4VA 20V |
225 |
|
数据手册 |
600 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.81mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP67 |
|
GS-111-0044SWITCH SLIDE SPDT 500MA 125V |
778 |
|
数据手册 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 6.35mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
G-328S-0008SWITCH SLIDE DP3T 3A 125V |
1,772 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
GF-124-0196SWITCH SLIDE SPDT 500MA 125V |
1,003 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
500SSP1S1M7REASWITCH SLIDE SPDT 0.4VA 20V |
580 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

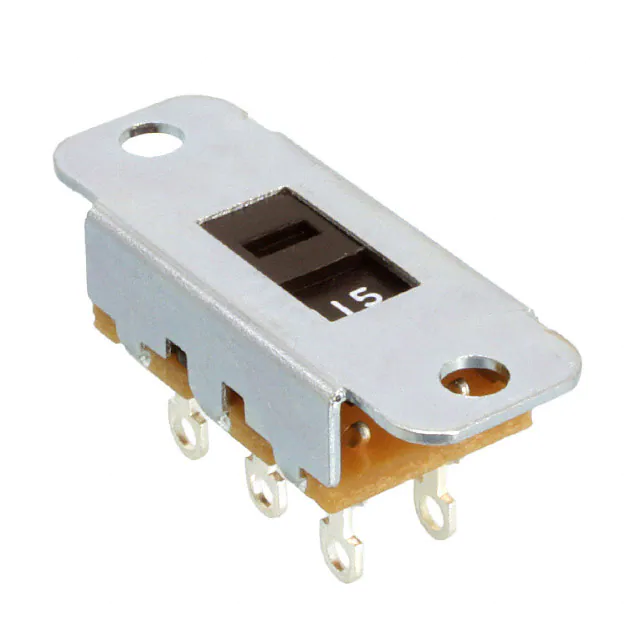

46206LFRXSWITCH SLIDE DPDT 3A 125V |
1,070 |
|
数据手册 |
46200R | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Panel Mount | Solder Lug | 115V-230V Marking |
|
1825262-2SWITCH SLIDE DPDT 0.4VA 20V |
1,895 |
|
数据手册 |
MSS | Bulk | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.20mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
500SDP1S3M7REASWITCH SLIDE DPDT 0.4VA 20V |
206 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
