滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1571982-1SWITCH SLIDE SPDT 0.4VA 20V |
360 |
|
数据手册 |
TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25146NABSWITCH SLIDE DPDT 4A 125V |
1,279 |
|
数据手册 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
3-1825010-7SWITCH SLIDE 6PDT 300MA 115V |
432 |
|
数据手册 |
ASE | Bulk | Active | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
1571984-3SWITCH SLIDE DPDT 0.4VA 20V |
167 |
|
数据手册 |
TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
EG1312ARSWITCH SLIDE SP3T 0.03A 15V |
2,736 |
|
数据手册 |
EG1312 | Tape & Reel (TR) | Active | SP3T | - | On-On-On | 30mA (DC) | - | 15 V | - | - | - | - | Surface Mount, Right Angle | PC Pin | - |
|

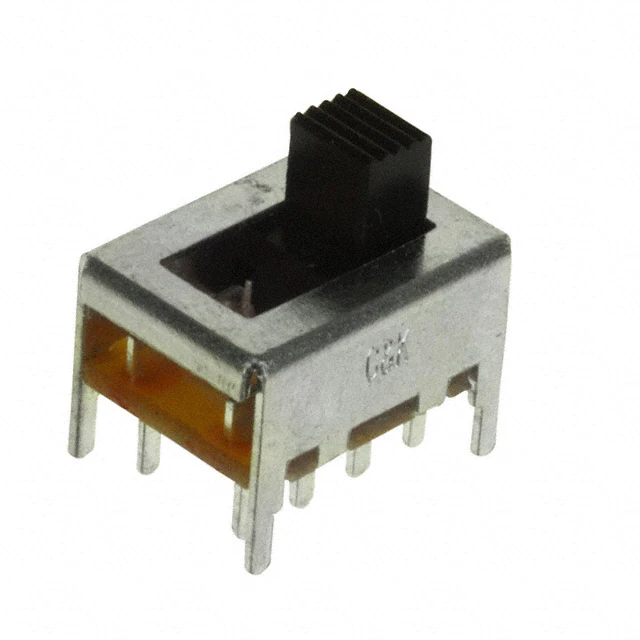

OS203013MT6QN1SWITCH SLIDE DP3T 200MA 30V |
15,901 |
|
数据手册 |
OS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

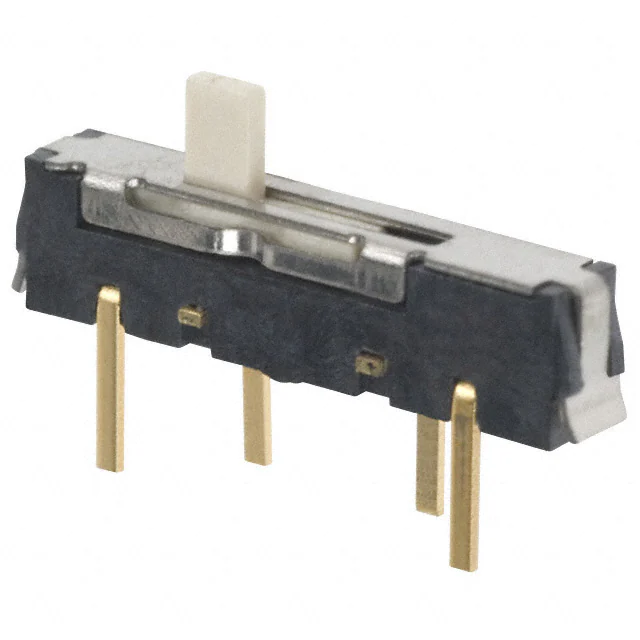

CSS-1300MCSWITCH SLIDE SP3T 100MA 12V |
1,147 |
|
数据手册 |
CSS | Tube | Active | SP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
EG2310ASWITCH SLIDE DP3T 200MA 30V |
11,588 |
|
数据手册 |
EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

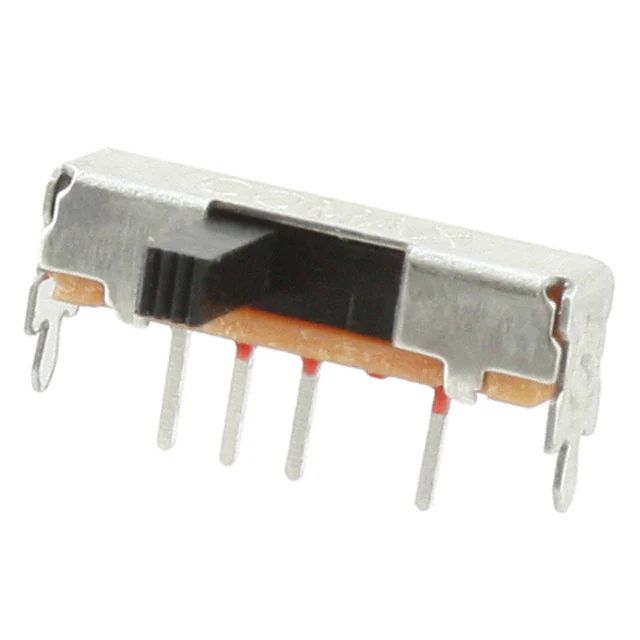

SK-13D08-G 5 ESWITCH SLIDE SP3T 300MA 30V |
4,770 |
|
数据手册 |
SK, COMAX | Bulk | Active | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 5.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|
OS203011MV9QS1SWITCH SLIDE DP3T 100MA 30V |
1,187 |
|
数据手册 |
OS | Bulk | Active | DP3T | Shorting (MBB) | On-On-On | 100mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GF-124-0217SWITCH SLIDE SPDT 500MA 125V |
462 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
EG2305ASWITCH SLIDE DP3T 200MA 30V |
2,431 |
|
数据手册 |
EG | Bulk | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
GPI-151-0002SWITCH SLIDE SPDT 500MA 125V |
5,357 |
|
数据手册 |
GPI | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
GF-124-0000SWITCH SLIDE SPDT 500MA 125V |
312 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
CL-SB-12C-11SWITCH SLIDE SPDT 200MA 12V |
577 |
|
数据手册 |
CL-SB | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
MSS-102564-90-DSWITCH SLIDE SPDT 0.3A 24V |
637 |
|
数据手册 |
- | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Flush | Flush | Nickel | Gold | Through Hole, Right Angle | PC Pin | - |
|
MSS-102545-14A-90-DSWITCH SLIDE SPDT 0.3A 24V |
192 |
|
数据手册 |
- | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Standard | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | - |
|
CL-SB-12C-12SWITCH SLIDE SPDT 200MA 12V |
5,442 |
|
数据手册 |
CL-SB | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
GF-126-0331SWITCH SLIDE DPDT 3A 125V |
178 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

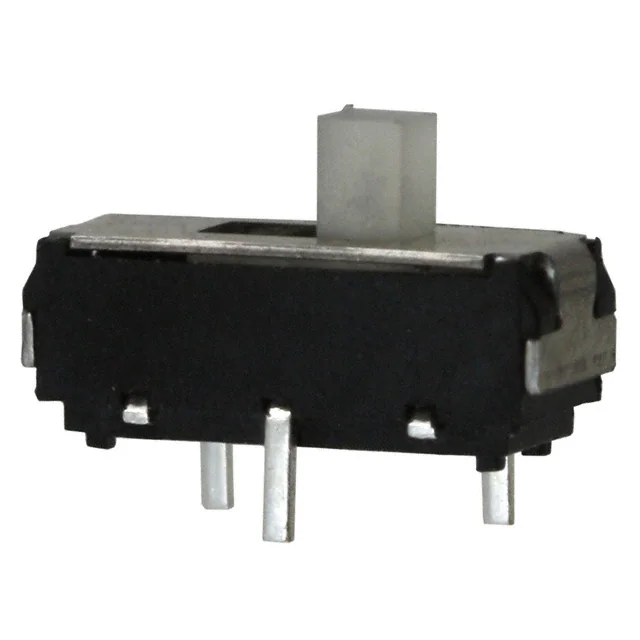

SS-12D1505-G 2SWITCH SLIDE SPDT 300MA 6V |
69,542 |
|
数据手册 |
SS, COMAX | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
