滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASLB1470SLIDE SWITCH |
380 |
|
数据手册 |
ASLB | Bag | Active | SP4T | Not Specified | On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|
GF-126-0235SWITCH SLIDE DPDT 500MA 125V |
496 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 500mA (AC/DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Through Hole | PC Pin | No Marking |
|
09.10201.02SWITCH SLIDE SPDT 0.5A 24V |
105 |
|
数据手册 |
1K2 | Bulk | Active | SPDT | - | On-On | 500mA (DC) | - | 24 V | Flush | 1.40mm | Nickel | Gold | Through Hole, Right Angle | PC Pin | - |
|
GR5-326-0891SWITCH SLIDE DPDT 3A 125V |
304 |
|
数据手册 |
GR5 | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC) | 125 V | - | Rocker Knob | 18.59mm | - | - | Panel Mount | PC Pin | - |
|
G-1128S-0055SWITCH SLIDE DP3T 11A 125V |
384 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GR5-626-6010SWITCH SLIDE DPDT 6A 125V |
493 |
|
数据手册 |
GR5 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC) | 125 V | - | Rocker Knob | 19.02mm | - | - | Panel Mount | PC Pin | - |
|
|
1101A2CQEASWITCH SLIDE SPDT 5A 120V |
347 |
|
数据手册 |
1000 | Bag | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

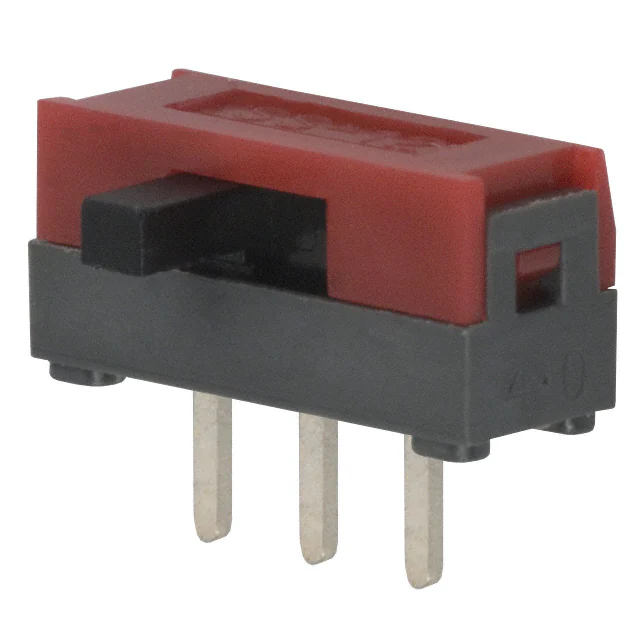

SS12SDH2SWITCH SLIDE SPDT 100MA 30V |
729 |
|
数据手册 |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
G-1128S-1110SWITCH SLIDE DP3T 11A 125V |
6,684 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
ASLB1570SLIDE SWITCH |
1,909 |
|
数据手册 |
ASLB | Bag | Active | SP5T | Not Specified | On-On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|
G-168S-3011SWITCH SLIDE 3P3T 500MA 125V |
969 |
|
数据手册 |
G | Bulk | Active | 3P3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
1825255-7SWITCH SLIDE SP3T 300MA 125V |
343 |
|
数据手册 |
MHS | Bulk | Active | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825289-5SWITCH SLIDE DPDT 300MA 125V |
4,351 |
|
数据手册 |
MHS | Bulk | Active | DPDT | Shorting (MBB) | On-Off-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

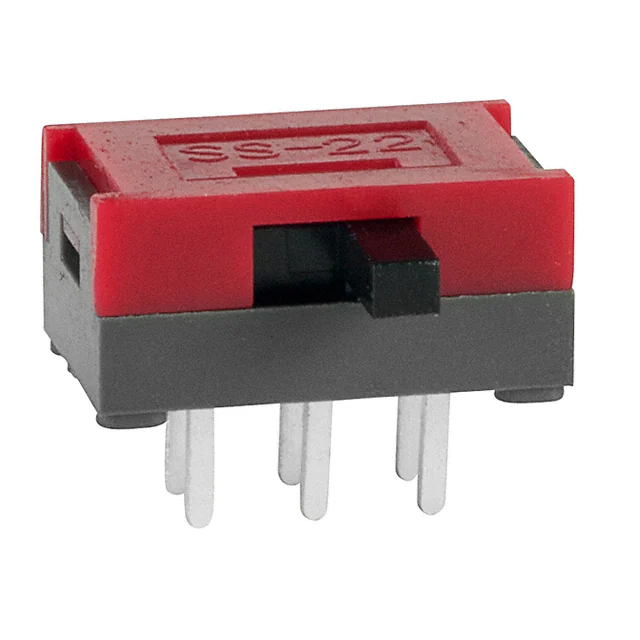

SS22SDH2SWITCH SLIDE DPDT 100MA 30V |
3,760 |
|
数据手册 |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
G-386-0001SWITCH SLIDE DP3T 3A 125V |
405 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 13.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
1101A4CQEASWITCH SLIDE SPDT 5A 120V |
166 |
|
数据手册 |
1000 | Bag | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.60mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
1101A1VQEASWITCH SLIDE SPDT 5A 120V |
185 |
|
数据手册 |
1000 | Bag | Active | SPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | - |
|
1825255-5SWITCH SLIDE SPDT 300MA 125V |
2,806 |
|
数据手册 |
MHS | Bulk | Active | SPDT | Shorting (MBB) | On-Off-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

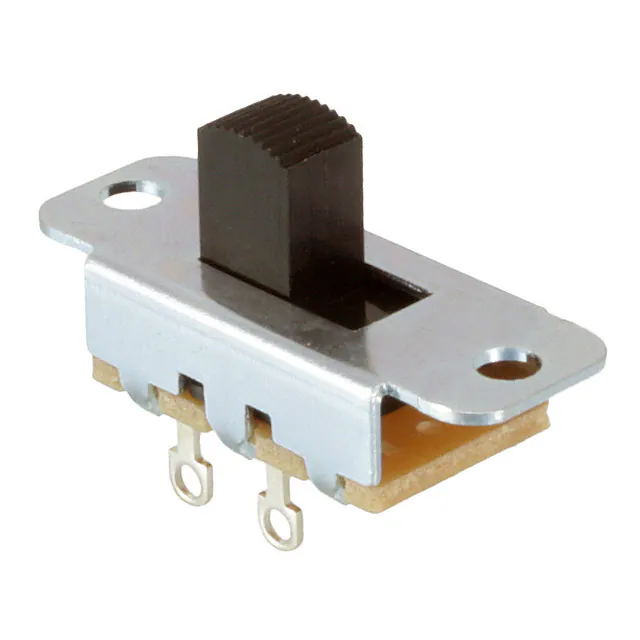

46202LRXSWITCH SLIDE SPST 3A 125V |
1,613 |
|
数据手册 |
46200R | Bulk | Active | SPST | Non-Shorting (BBM) | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
500SSP3S1M6QEASWITCH SLIDE SPDT 5A 120V |
7,601 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
